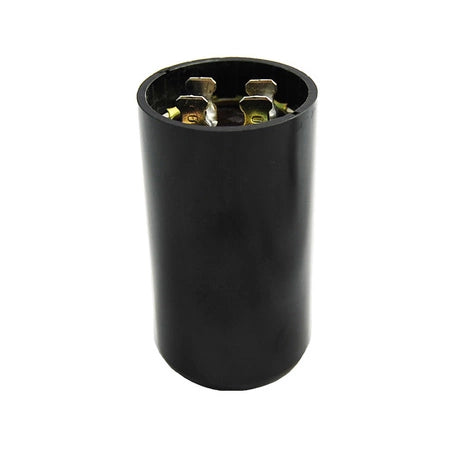

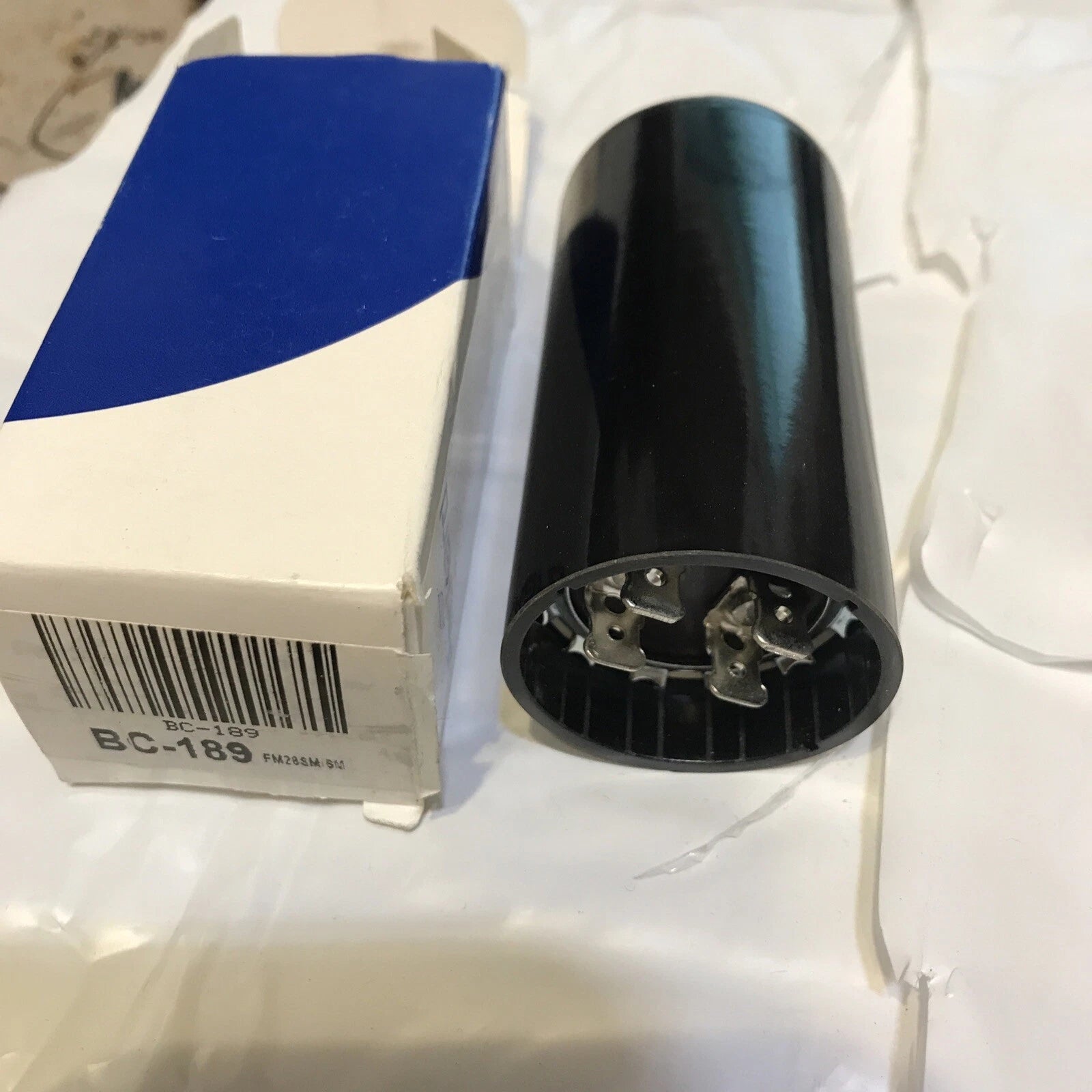

Packard BC189-125 Start Capacitor - 189-227 MFD - 110-125V

Product Description

The Packard BC189-125 is a motor start capacitor designed for AC motor starting circuits. This capacitor is a dry electrolytic, non-polarized unit made from aluminum electrolytic materials. Its casing offers moisture and oil resistance, crafted from molded phenolic resin or plastic, ensuring durability in various conditions.

• Rated for intermittent duty with a three-second start time and up to twenty starts per hour.
• Operates effectively in temperatures ranging from negative forty degrees to sixty-five degrees Celsius.
• Equipped with standard dual blade terminals and complies with EIA standards RS-463 type 2.

Product Highlights

This capacitor is suitable for applications requiring reliable performance in starting AC motors. The non-polarized design allows flexible installation, while its sturdy construction assures longevity.

Product Information

Standard Information

• MPN: BC189-125
• Brand: Packard

Technical Specifications

• Rated Start: 3 seconds
• Starts per hour: 20
• Operating temperature range: -40 degrees to 65 degrees Celsius
• Standard: RS-463 type 2
• Hertz: 50/60
• Maximum Operating Voltage: 125 V
• Capacitor Construction: Aluminum Electrolytic (Non-Polarized)
• Warranty: 1 year warranty from the manufacturer
