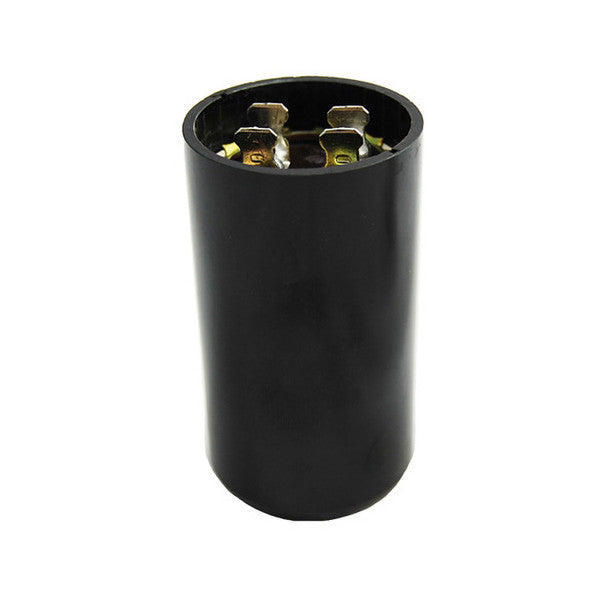

Packard BC108-125 Start Capacitor 110-125 VAC

Product Description

The Packard BC108-125 is a motor start capacitor designed for intermittent use in AC motor starting circuits. It operates within a range of 110 to 125 VAC and has a capacitance of 108 to 130 microfarads. This capacitor is built with a moisture and oil-resistant case made from molded phenolic resin or plastic. Key features include standard dual blade terminals and a capability to start the motor within three seconds, allowing for up to twenty starts per hour. The operating temperature range is from negative forty degrees to sixty-five degrees Celsius.

• Designed for AC motor starting circuits requiring intermittent operation.
• Moisture and oil-resistant constructed case.
• Operating temperature range: -40 degrees to 65 degrees Celsius.

Product Highlights

The Packard BC108-125 is suited for motors requiring reliable starting performance under varied conditions.

Product Information

Standard Information

• Brand: Packard
• Type: Motor Start Capacitor

Technical Specifications

• Capacitor Construction: Non-Polarized
• Maximum Operating Voltage: 125 VAC
• Item Height: 1.55 inches
• Starts per Hour: 20
• Operating Temperature Range: -40 to 65 degrees Celsius
• Standard: RS-463 type 2
• Diameter: 1 7/16 inches
• Country of Origin: China
