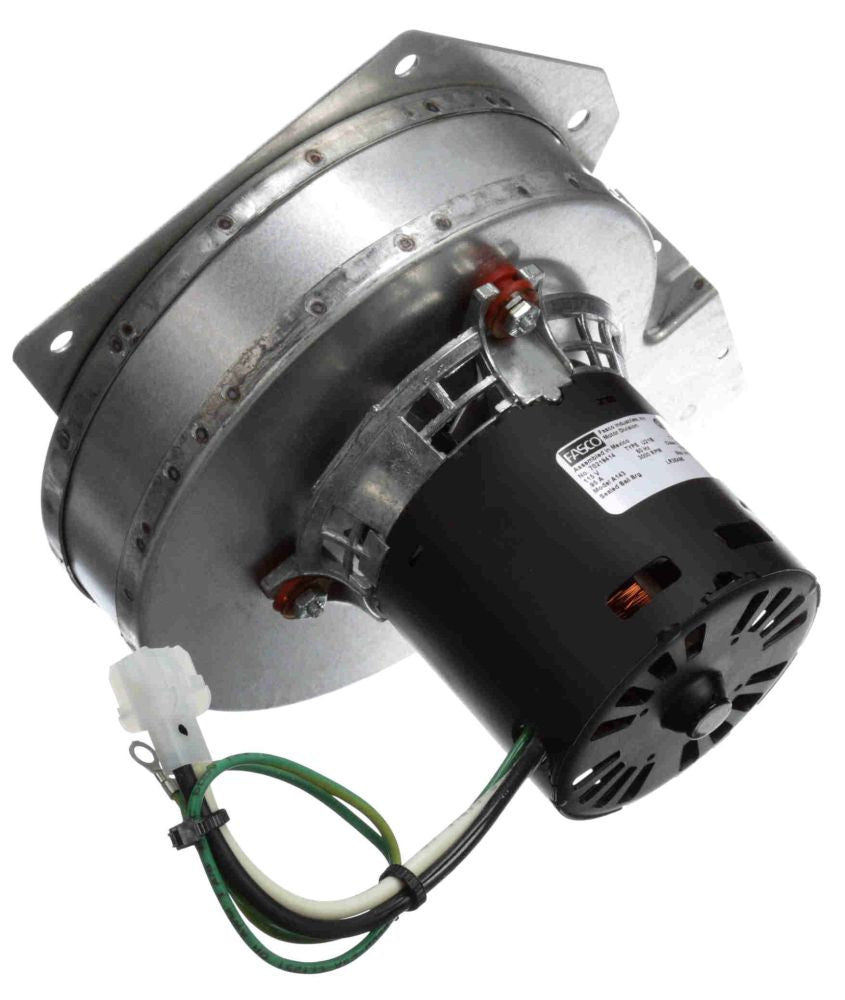

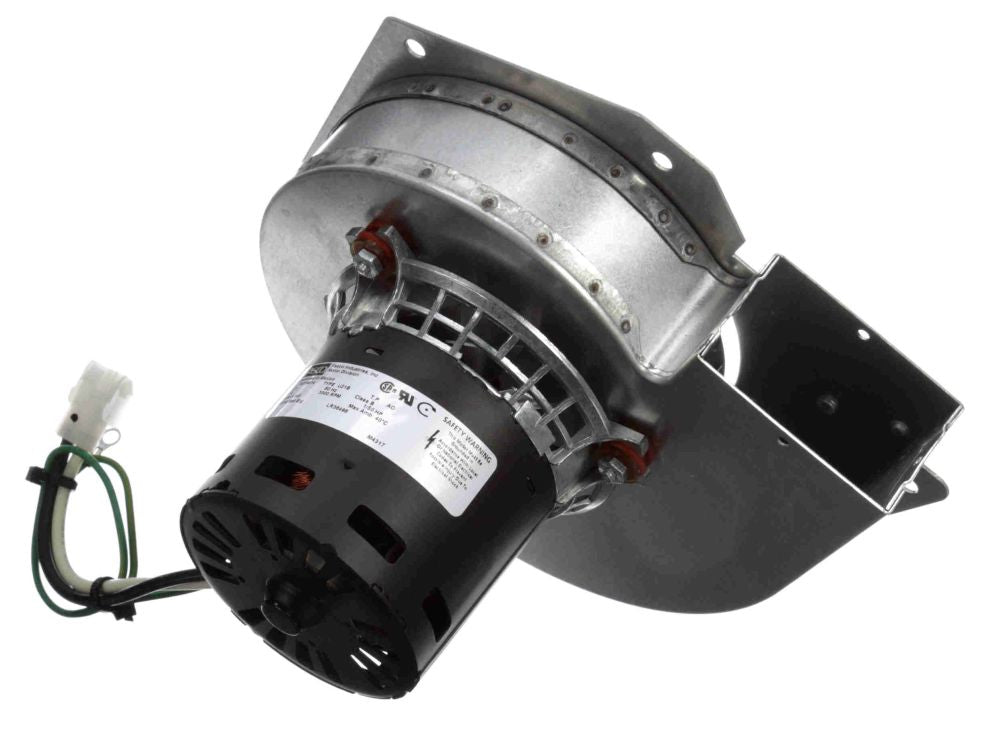

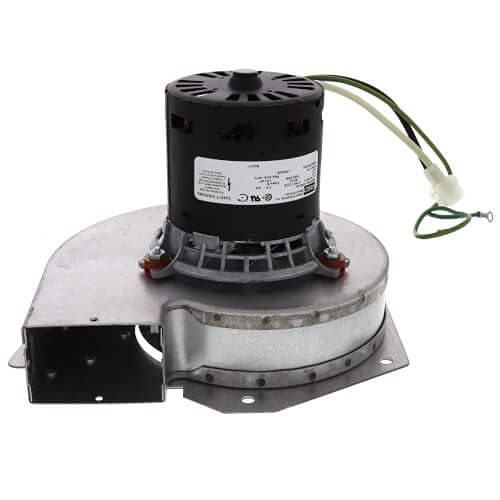

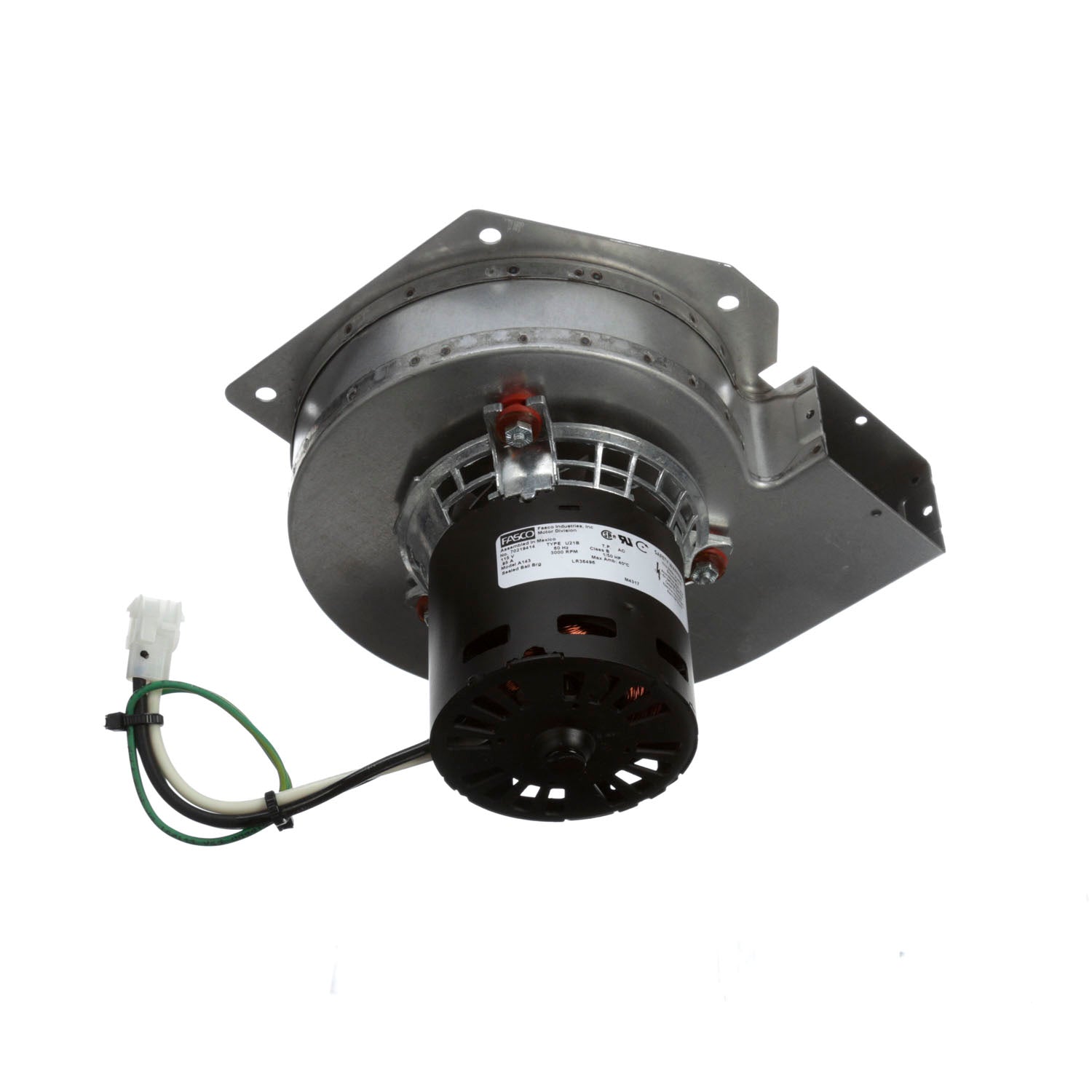

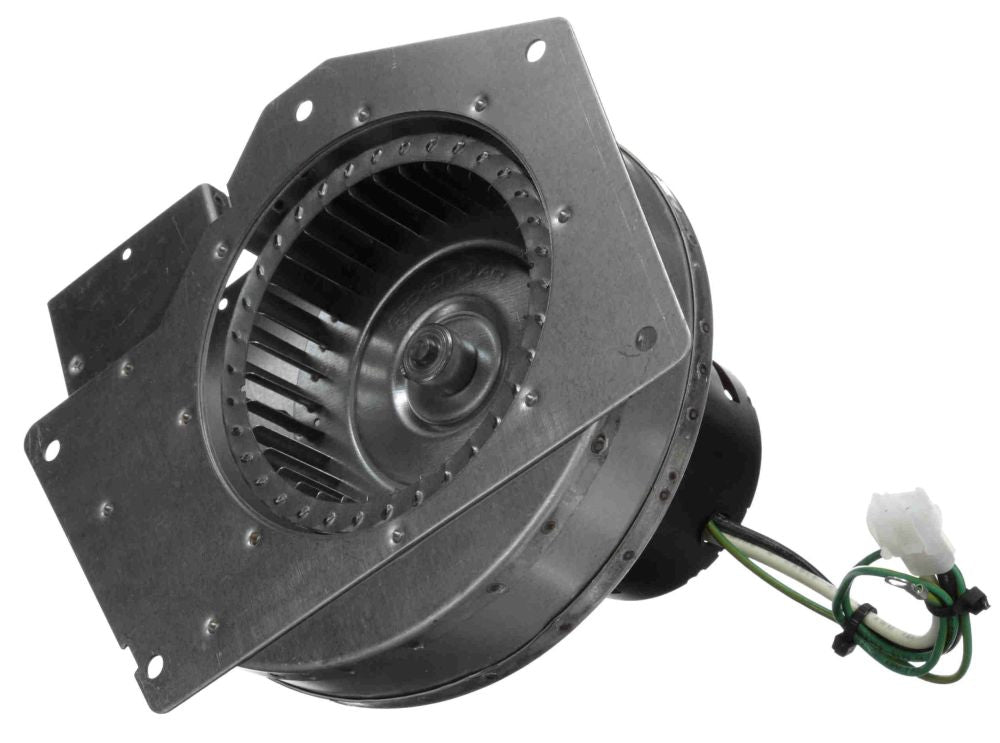

Packard A143 Draft Inducer Motor 115V 1/50 HP (3.3 Inch) Replaces 210330673

Product Description

Packard A143 is a shaded pole draft inducer motor rated at 115 V AC (model A143). It operates at 3000 RPM with a 1/50 HP rating, single-phase 60 Hz input, and draws 0.95 A. The single-speed motor includes automatic thermal overload protection, insulation class B, and a 6-inch lead with pin housing terminal. It is sized for ducted HVAC and furnace inducer blower applications and has UL and CSA approvals.

• Shaded pole single-speed inducer motor: 115 V AC, 60 Hz, 3000 RPM, 1/50 HP, 0.95 A
• Automatic thermal overload protection, insulation class B, ball bearing, ambient rating 40°C
• Includes 6-inch lead with pin housing terminal; 3.3 inch overall diameter; OAO/open enclosure; UL and CSA approvals

Product Highlights

Single-speed 115 V draft inducer motor for ducted HVAC and furnace use; 3.3 in diameter, 1/50 HP, 3000 RPM, 6-inch lead.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: A143
• Country of Origin: United States

Technical Specifications

• Brand: Packard
• MPN: A143
• Product Type: Draft inducer motor
• Manufacturer: Packard
• Input Voltage: 115 V AC
• Frequency: 60 Hz
• Power Rating: 1/50 HP
• Speed: 3000 RPM
• Input Current: 0.95 A
• Phase: Single phase
• Motor Type: Shaded pole
• Number of Speeds: 1
• Enclosure: OAO (open)
• Bearing: Ball
• Insulation Class: B
• Ambient Temperature Rating: 40 °C
• Frame / Overall Diameter: 3.3 inch
• Rotation Direction: Clockwise
• Leads / Terminals: 6 inch lead with pin housing terminal
• Overload Protection: Automatic thermal overload
• Approvals / Certifications: UL, CSA
• Application: Gas furnace, water heater, ducted HVAC inducer/blower
• Country of Origin: United States
• Replaces / Cross References: 210330673, 210340125, X3804-0305-010, X3804-0305-017, 7021-8428, 7021-8013, 7021-8924, Trane: 21D330673, 7002-2558, 7021-10291, X38040305010
