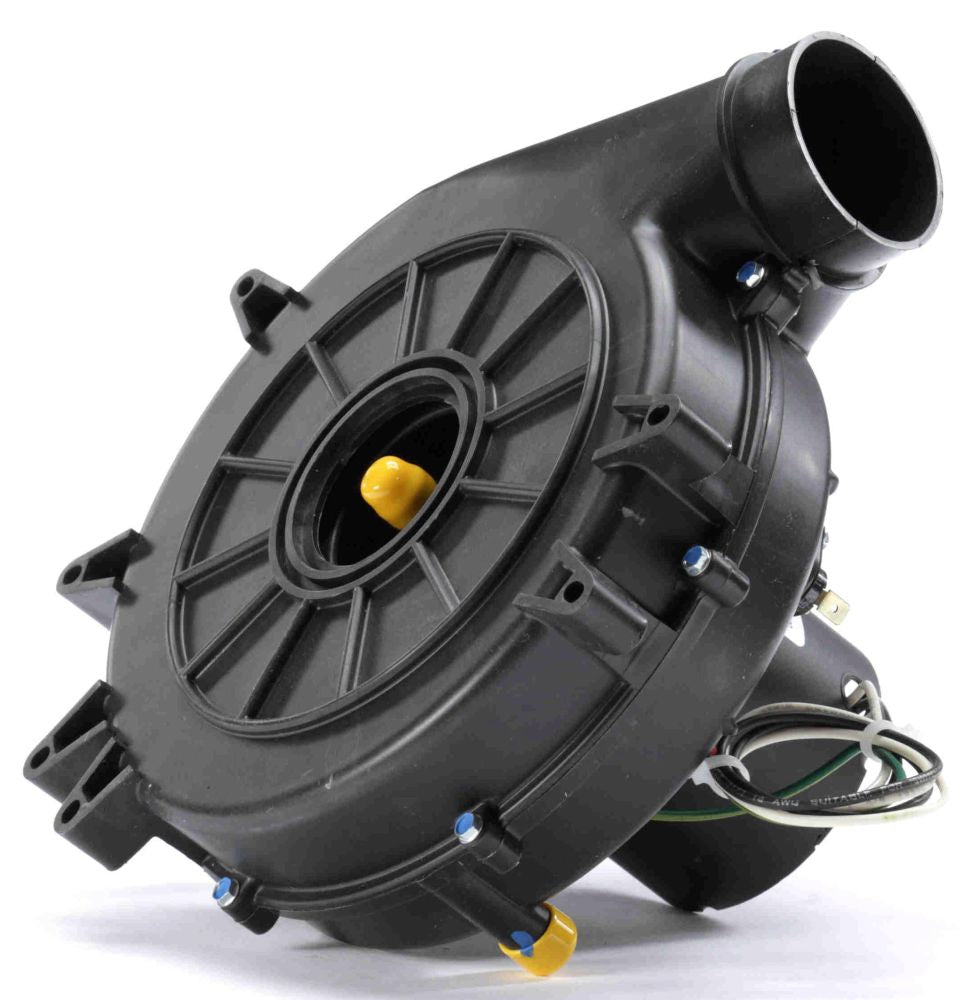

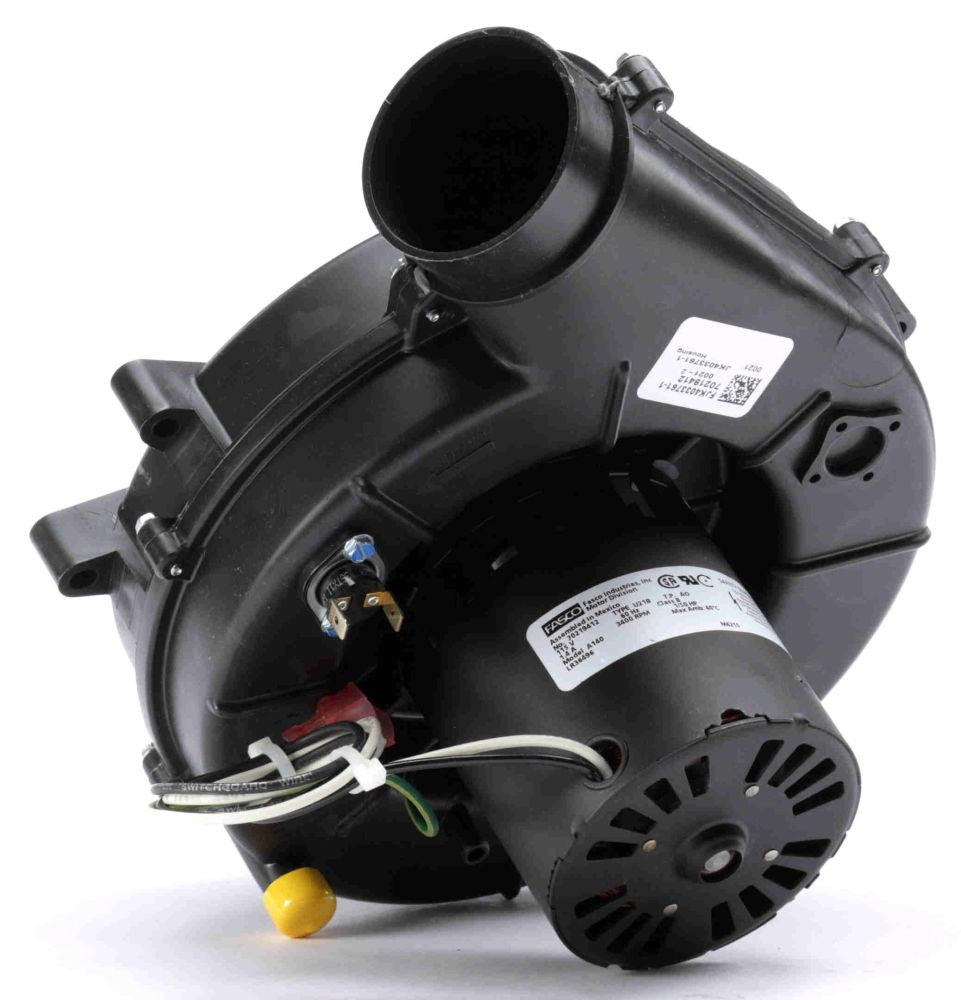

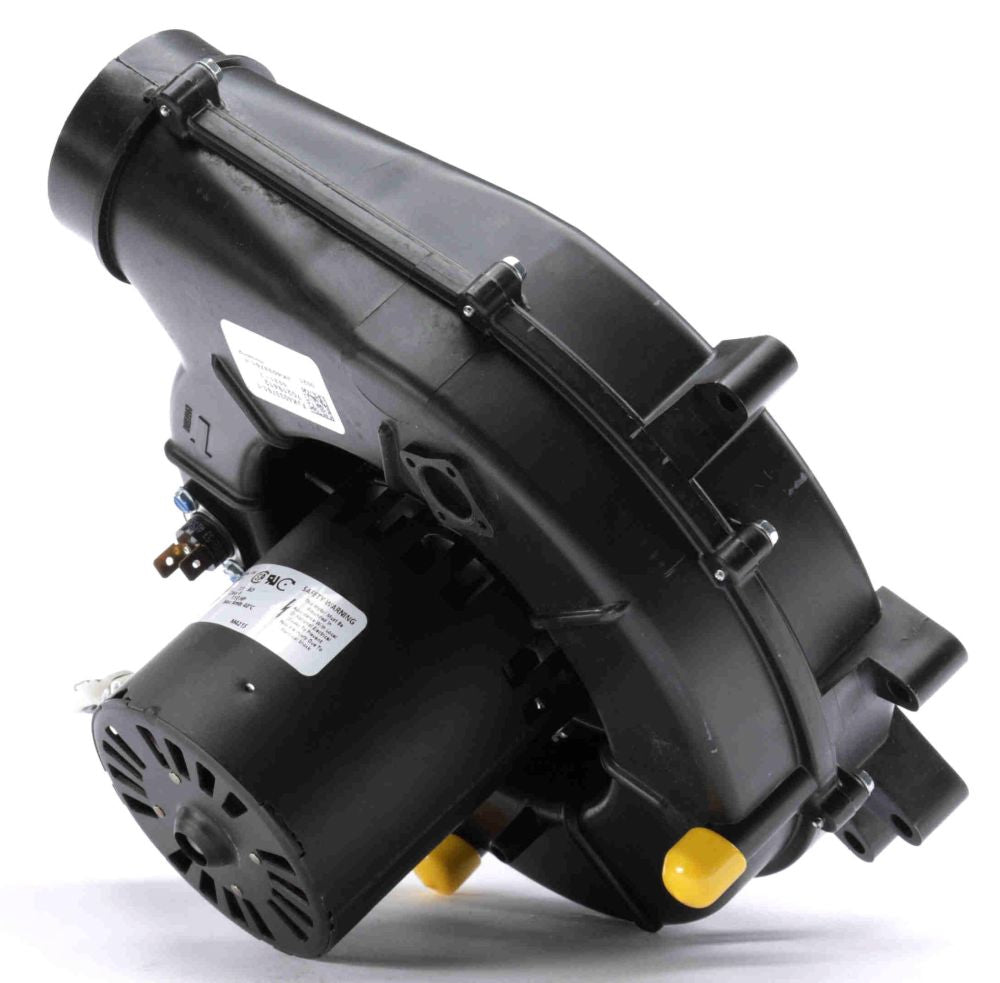

Packard A140 Inducer Motor Assembly 115 VAC (3.3 inch) A140

Product Description

Packard A140 is an inducer motor assembly for draft inducer blower applications. It is a shaded-pole, single-phase motor with a round outlet and flanged end connection, rated 115 VAC, 60 Hz, with a speed of 3400 RPM and a full-load current of 1.4 A. The motor features Class B insulation, thermally protected windings, sleeve bearing construction, and 19 inch leads with socket terminals.

• Shaded-pole, single-phase inducer motor with round outlet and flanged end connection
• Electrical rating: 115 VAC, 60 Hz; 3400 RPM; full-load current 1.4 A; Class B insulation; 40 C ambient
• Thermally protected with sleeve bearing and 19 inch leads with socket terminals

Product Highlights

OEM direct replacement draft inducer blower motor; 3.3 inch overall diameter; thermally protected, Class B insulation.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: A140

Technical Specifications

• Brand: Packard
• Manufacturer: Regal
• MPN: A140
• Part Type: Aftermarket
• Description: Inducer motor assembly blower
• Motor Type: Shaded pole
• Outlet: Round
• End Connection: Flanged
• Overall Diameter: 3.3 inch
• Input Voltage: 115 VAC, 60 Hz
• Speed: 3400 RPM
• Number of Phases: Single-phase
• Full Load Current: 1.4 A
• Bearing Type: Sleeve
• Insulation Class: B
• Ambient Temperature Rating: 40 C
• Protection: Thermally protected
• Enclosure Type: Open air over
• Lead Length: 19 inch
• Terminal Type: Socket terminals
• Service: Air
• UPC: 815585026181
• TS ID: D024F001R0002463
• UNSPSC: 40101601
