Packard 97801 ecm evaporator fan motor 1/15 hp 120v replaces InterLink 25317801S

Product Description

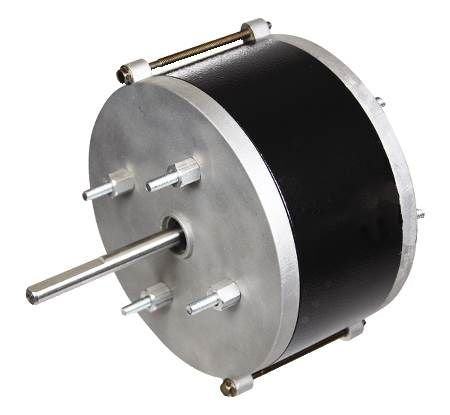

The Packard 97801 ECM Evaporator Fan Motor is an energy-efficient solution designed for various evaporator units. This 1/15 HP, 120V motor operates at 1625 RPM with ball bearings and Class B insulation. It features a TEAO enclosure and a 42 NEMA frame, ensuring durability and reliable performance. The motor includes a Lyall plug and four mounting studs for straightforward installation, making it suitable for HVAC systems and refrigeration applications.

• Energy-saving ECM design with ball bearings and 60 Hertz operation.
• Replaces InterLink 25317801S, Heatcraft, Bohn, Chandler, Climate Control, and Larkin motors.
• Features a 42 NEMA frame, Class B insulation, and four mounting studs.

Product Highlights

ECM design for energy savings, features ball bearings, Class B insulation, and includes a Lyall plug for easy installation.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 97801
• Country of Origin: USA

Technical Specifications

• Product Type: ELECTRIC_MOTOR
• Manufacturer: DiversiTech
• Brand: Packard
• Part Number: 97801
• Unit Count: 1.0 Count
• Input Voltage: 120V
• Current: 1.20 Amps
• Bearing Type: Ball
• Enclosure Type: TEAO
• Horsepower: 1/15 HP
• Frequency: 60 Hertz
• Included Components: Lyall plug
• Insulation Class: Class B
• Motor Rotation: CWSE
• Motor Type: ECM
• Mounting Type: Stud
• NEMA Frame: 42
• RPM: 1625 RPM
• Number of Speeds: 1
• Material: Copper
• Country of Origin: USA
