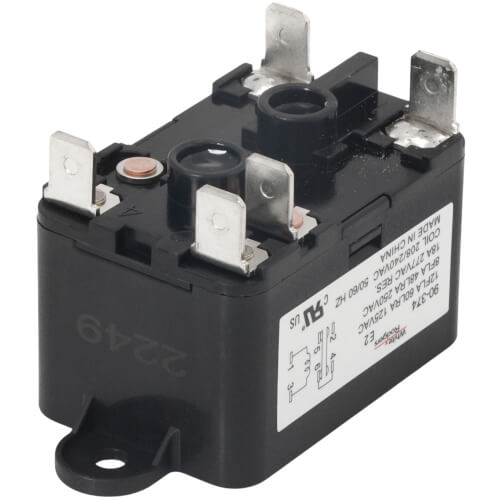

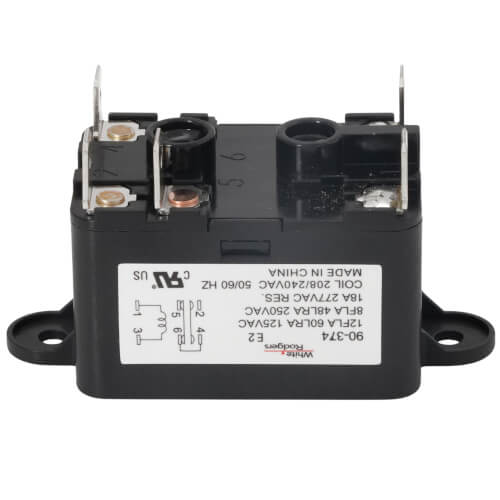

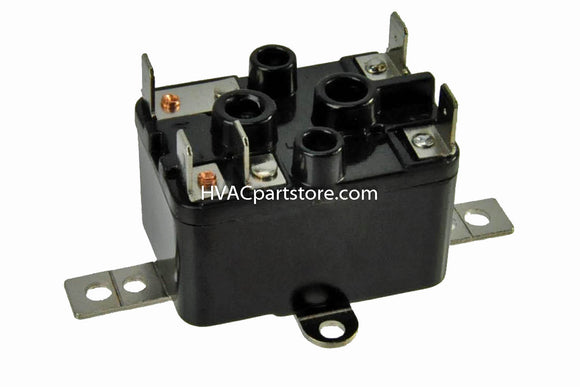

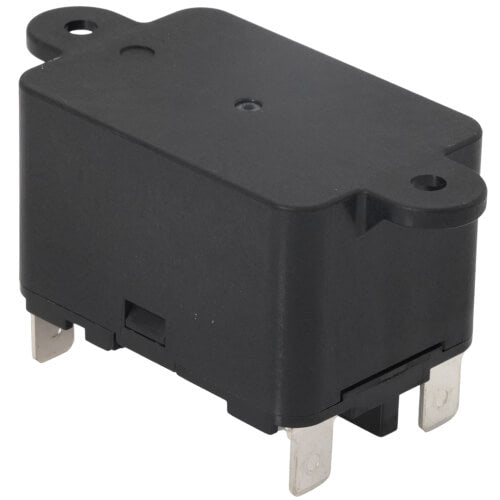

PACKARD 90-374 SPDT Relay 240V 25A

Product Description

The PACKARD 90-374 is a single-pole, double-throw (SPDT) relay ideal for general purpose switching and heating or cooling applications. This relay features a coil voltage of 240V and includes five terminals for versatile connections. Once energized, it can switch between normally closed and normally open terminals, making it suitable for various electrical tasks. It is built for continuous duty, allowing operation in any position.

• SPDT relay configuration
• 240V coil
• Five terminal connections

Product Highlights

This relay provides reliable performance for HVAC systems and other equipment requiring switching capabilities.

Product Information

Standard Information

• Coil Voltage: 240V
• Amperage: 25A

Technical Specifications

• Type: SPDT
• Voltage: 240V / 208V
• Hertz: 50/60
• DC Resistance: 6050 ohms
• Weight: 2.3 oz
• mA: 12.5
• Inrush: 4
• Duty: Continuous
• Electric Connection: 1/4 Quick-Connect Terminals
• Operating Temperature: -40°F to 150°F
