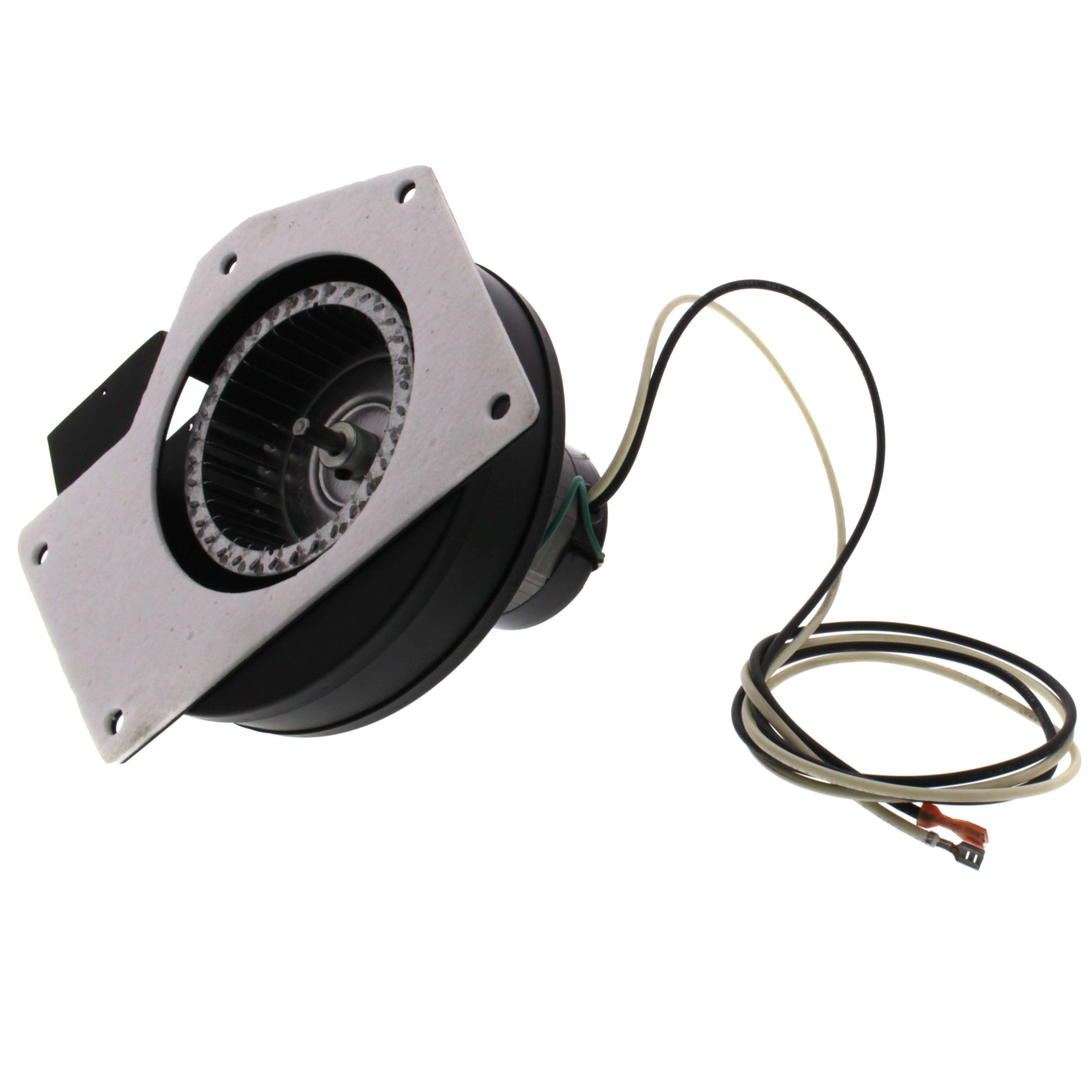

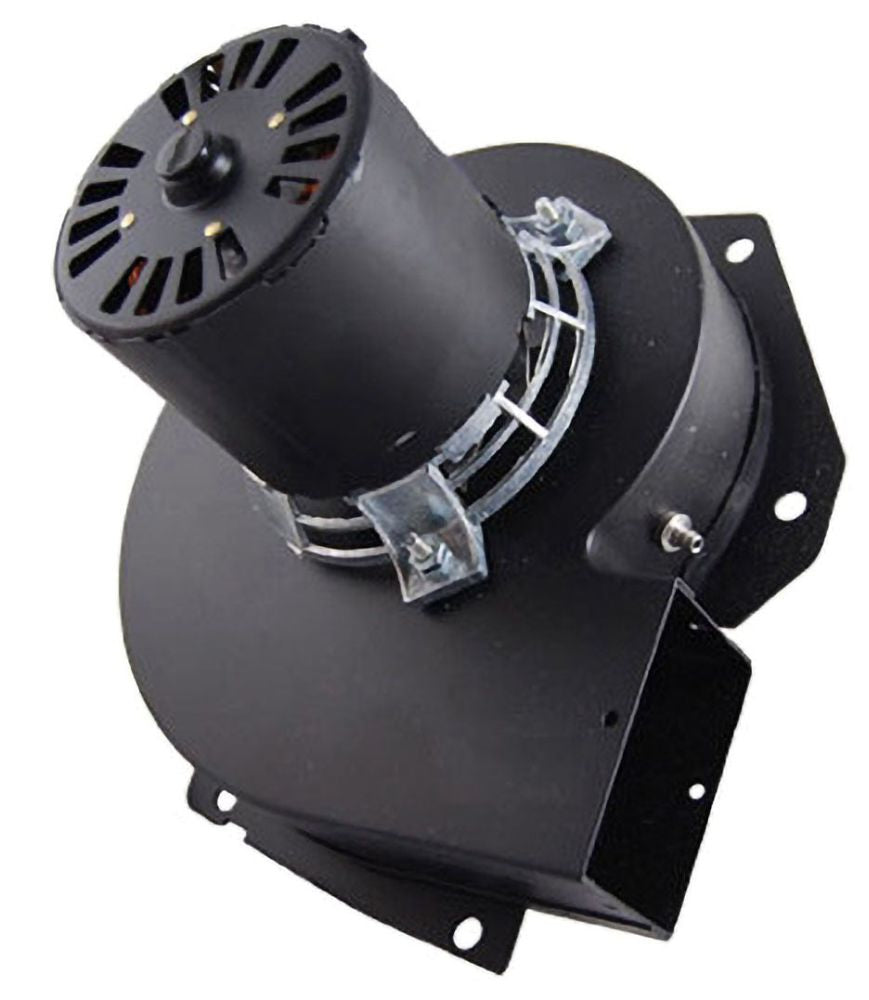

Packard 82672 Draft Inducer, 1/60 HP, 115 VAC 60 Hz, 3300 RPM

Product Description

The Packard 82672 Draft Inducer is designed for use in furnaces. This inducer operates at one hundred fifteen volts AC and draws zero point nine amps with a power rating of one over sixty horsepower. The motor runs at a speed of three thousand three hundred RPM, which is suitable for effective air movement. It features shaded pole motor technology for energy efficiency.

• Voltage: 115 VAC
• Power: 1/60 HP
• Speed: 3300 RPM

Product Highlights

This inducer includes mounting hardware and a gasket for easy installation. It is built with metal materials and has an open enclosure type for enhanced airflow. The rated temperature for this device is forty degrees Celsius. This product meets UL and CSA standards, ensuring it meets safety requirements for HVAC applications.

Product Information

Standard Information

• Brand: Packard
• MPN: 82672

Technical Specifications

• Draft Inducer Type: Draft Inducer
• Current Rating: 0.9 Amps
• Insulation Class: Class B
• Material: Metal
• Insulation Type: Open
• Rotation Type: Clockwise Shaft End
• Bearing Type: Sleeve
• Dimensions: 3.3 inches diameter, 5.81 inches length
