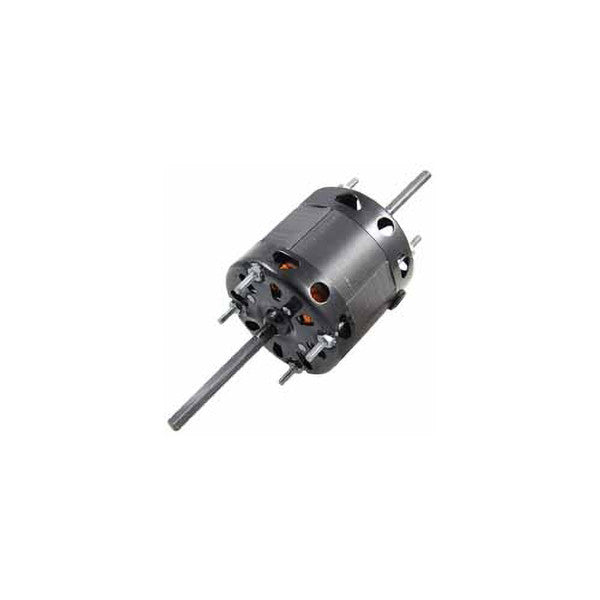

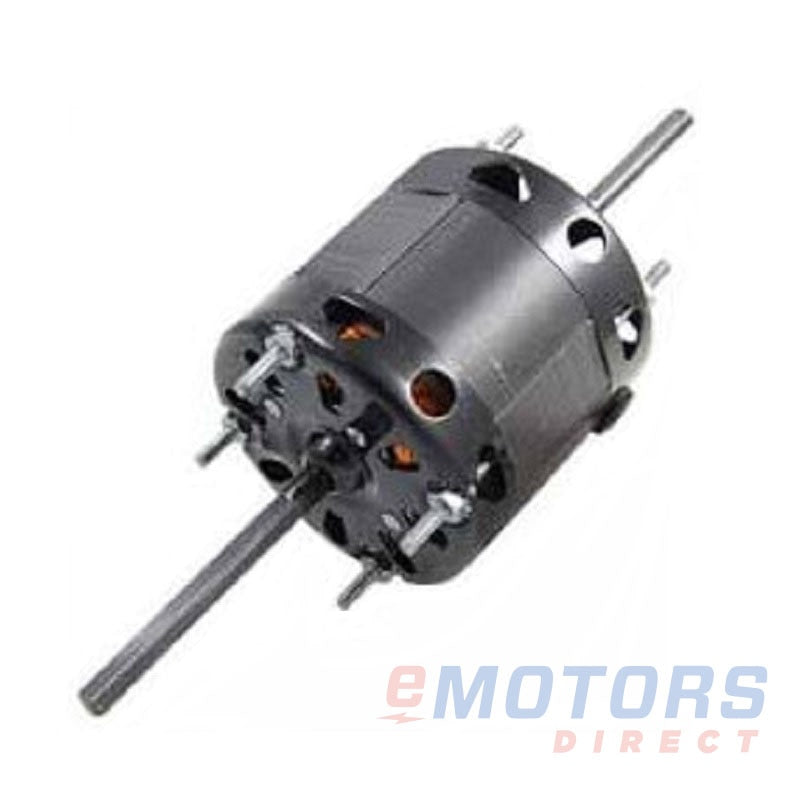

Packard 82516 Motor - 1/15 HP - 3.3 Dia - 82516

Product Description

The Packard 82516 is a shaded pole motor suitable for furnace blower applications. Operates at one hundred fifteen volts and sixty hertz, delivering one-fifteenth horsepower at fifteen hundred fifty RPM. The design includes a double shaft and sleeve bearings.

• Rated output power of 1/15 HP.
• Three-speed operation for versatile airflow control.
• Equipped with automatic overload protection.

Product Highlights

This motor is ideal for HVAC and furnace systems, offering reliability and efficient performance.

Product Information

Standard Information

• Brand: Packard
• Country of Origin: China

Technical Specifications

• Rated Motor Output Power: 1/15 HP
• Rated Motor Speed: 1550 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 2.50 AMP
• Phase: 1
• Frequency: 60 Hz
• Frame: 3-3/8
• Mounting: Thru Bolt
• Number of Speeds: 3 Speed
• Approximate Weight: 5 lb
• Frame Material: Rolled Steel
• Rotation: CCWNDE
• Shaft Diameter: 5/16
• Warranty: 1-Year
• UPC: 840899112008
• Motor Type: Shaded Pole
• RPM: 1550
