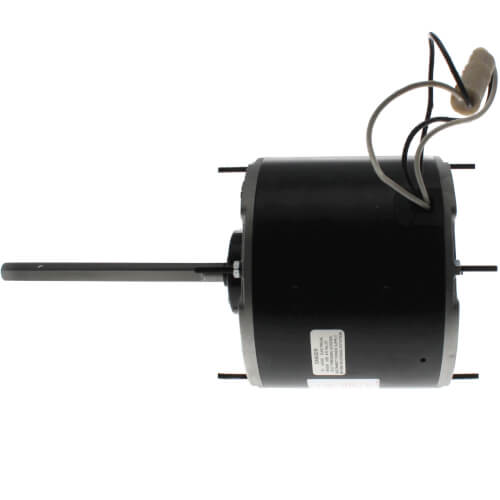

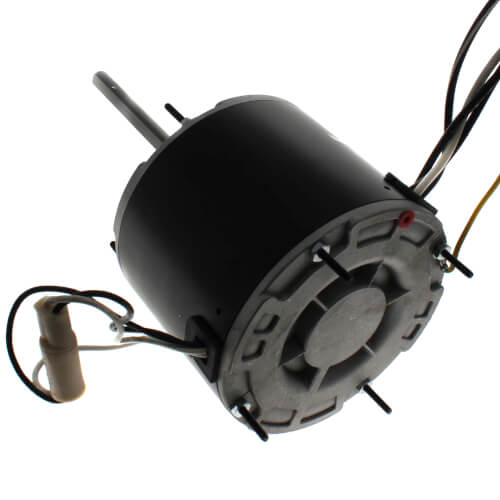

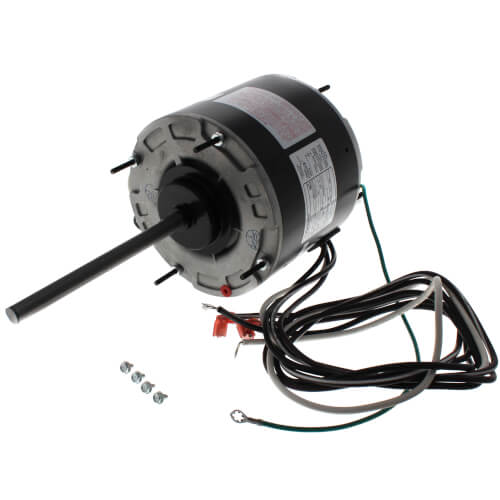

Packard 82038 5-5/8 Condenser Fan Motor 1/4 HP 208-230V 1140 RPM

Product Description

The Packard 82038 is a condenser fan motor designed for HVAC applications. It offers a power rating of one-fourth horsepower and operates at voltages of two hundred eight to two hundred thirty volts. This motor runs at one thousand one hundred forty RPM, making it suitable for a variety of condenser units.

• Capacitor Required: 5MFD/440VAC
• Replaces National Comfort F48AA74D16
• Permanent split capacitor motor

Product Highlights

This motor features automatic overload protection for safe operation and is designed for one-speed performance. Its CCW rotation is determined by viewing the shaft end.

Product Information

Standard Information

• Weight: 11.6 lbs
• Horse Power: 1/4 HP

Technical Specifications

• RPM: 1140
• Type: Permanent Split Capacitor
• Voltage: 208/230V
• Amperage: 1.5
• Bearings: Ball
• Phase: 1
• Speeds: 1
• Enclosure Type: Totally Enclosed
• Shaft Diameter: 1/2 inch
• Diameter: 5-5/8 inches
• Shipping Dimensions: 15 inches (depth) x 7.5 inches (width) x 7.25 inches (height)
• Overload Protection: Automatic
