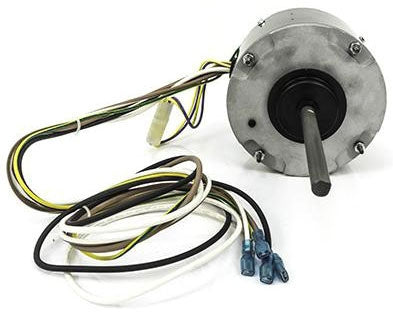

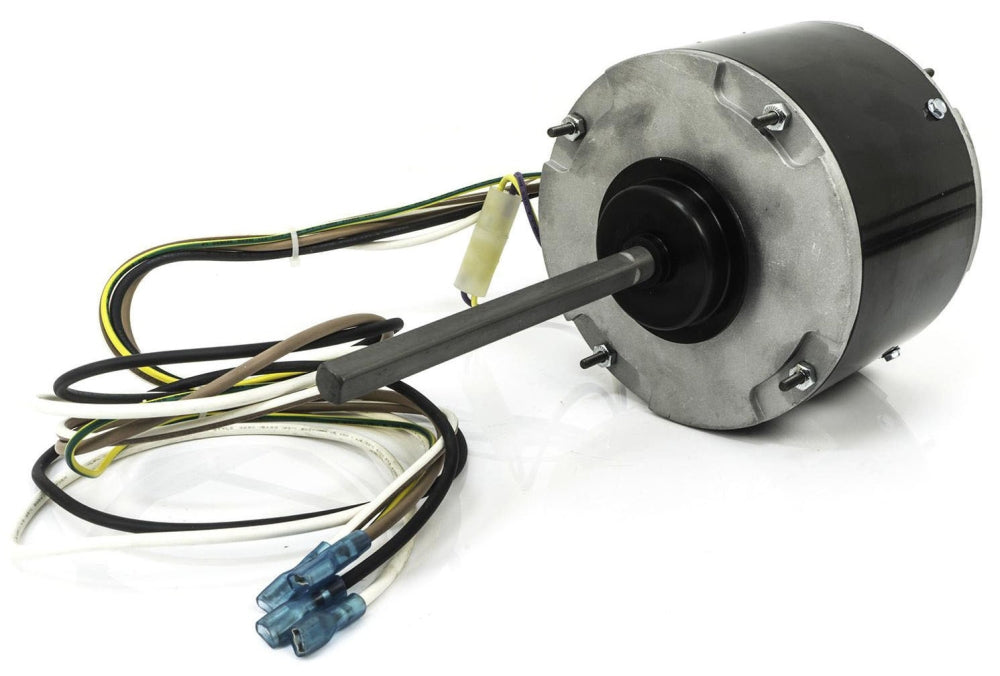

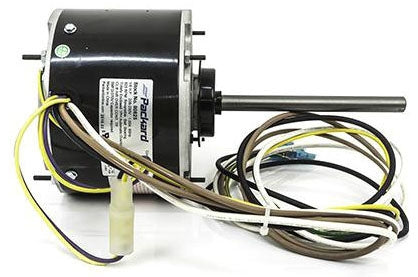

Packard 80825 1/8 HP, 208 to 230 VAC Condenser Fan Motor

Product Description

The Packard 80825 is a condenser fan motor designed for efficient operation in HVAC applications. This motor operates at one-eighth horsepower and works with voltage ratings between two hundred eight to two hundred thirty volts AC. It is suitable for use in various HVAC systems.

• Operating voltage: 208 to 230 VAC
• Speed: 825 RPM, single speed
• NEMA frame size: 48

Product Highlights

This motor features a permanent split capacitor and is reversible, allowing for flexible installation options. Its totally enclosed design helps protect against dust and moisture.

Product Information

Standard Information

• Manufacturer: Packard
• Power Rating: 1/8 HP

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 1 Amp
• Number of Speeds: 1
• Speed Rating: 825 RPM
• Reversible: Yes
• Enclosure Type: Totally Enclosed, Air-Over
• NEMA Frame Size: 48
• Bearing Type: Ball
• Size: 5-5/8 Inches Diameter x 3-7/8 Inches Length (Less Shaft)
• Shaft Size: 1/2 Inch Diameter x 6-1/2 Inch Length
