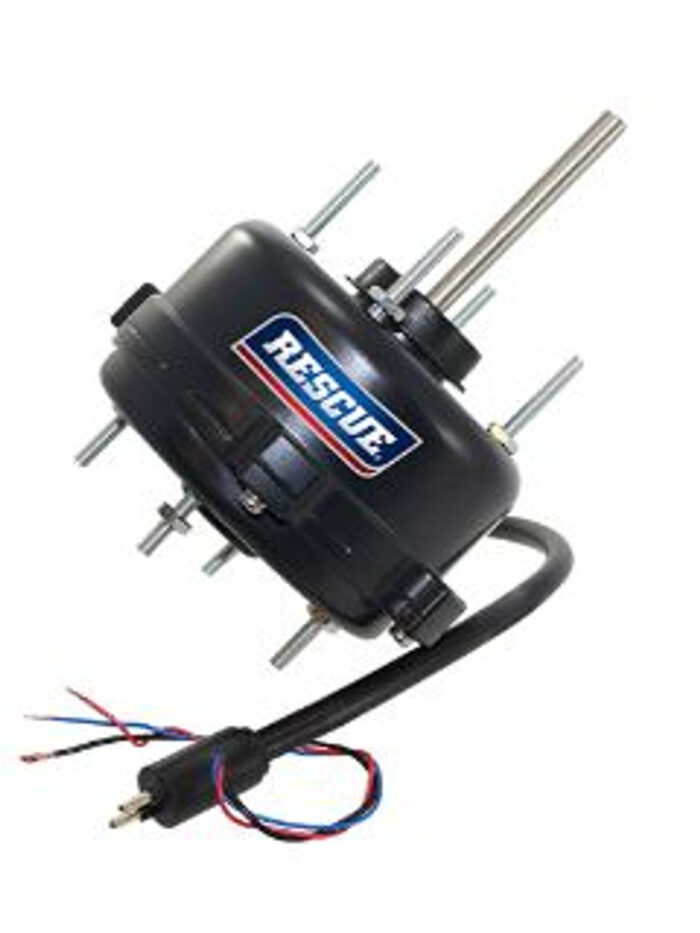

Packard 80391 Century 307 Motor 1/20 HP 3.3 Inch Diameter Replacement

Product Description

The Packard 80391 is a reliable single-phase shaded pole motor, specifically designed for replacement in HVAC systems. This motor operates at one hundred fifteen volts and sixty hertz, providing one-twentieth horsepower at a speed of one thousand five hundred fifty RPM. With a clockwise rotation, it includes sleeve bearings for smooth operation and features an open enclosure that enhances air circulation. Mounting is achieved easily via studs for quick installation.

• Operates at 115V and 60Hz, delivering 1/20 HP at 1550 RPM.
• 3.3-inch diameter frame with stud mounting for easy installation.
• Automatic overload protection prevents damage from excessive current.

Product Highlights

This motor is suitable for replacing ECM motors ranging from 1/15 to 1/25 HP, with reversible rotation and varying speeds. Its compact design allows for versatile applications.

Product Information

Standard Information

• Brand: Packard
• MPN: 80391

Technical Specifications

• Phase: Single Phase
• Replacement Motor: ECM motor, 1/15-1/25 HP, 800/1580 RPM, Reversible, 60/50Hz
• H.P.: 1/20
• Speeds: 1
• Amps: 2.1
• Rotation: CW
• RPM: 1550
• Bearings: Sleeve
• Diameter: 3.3 inches
• Enclosure: Open
• Mounting: Stud
• Shaft Length: 2-3/8 inches
• Motor Type: Shaded Pole
• Frame: 3.3 inches
• Overload Protection: Automatic
• Shaft Diameter: 5/16 inches
• Shafts: 1
• Hertz: 60
• Shaft Dimension: 5/16 x 2-3/8 inches
• Length Less Shaft: 3-7/8 inches
• Voltage: 115
