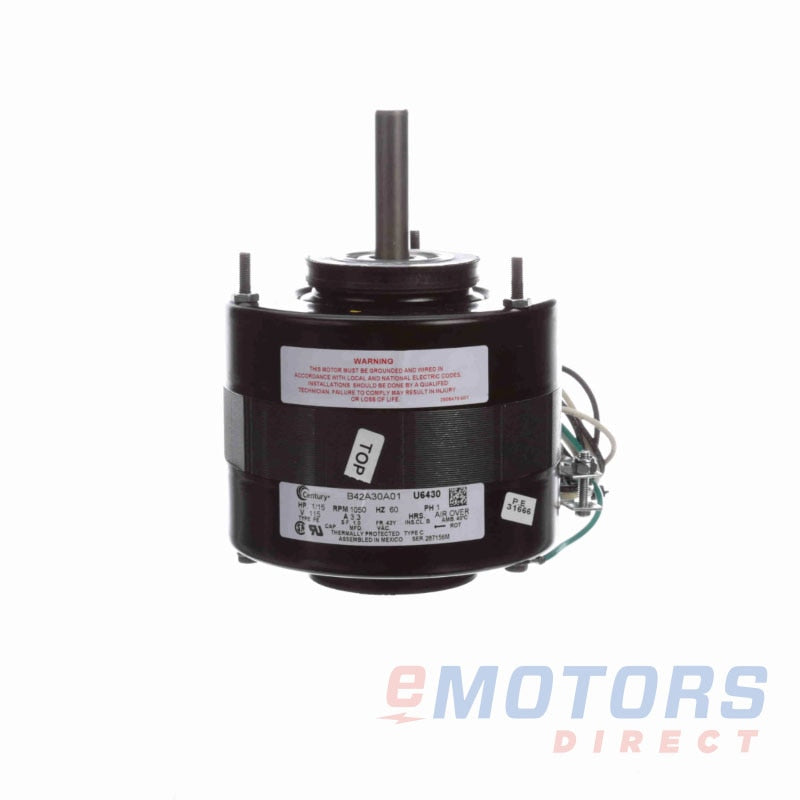

PACKARD 70387 Unit Heater Blower Motor 1/15 HP 115V

Product Description

The PACKARD 70387 is a unit heater blower motor, ideal for direct aftermarket replacement. This unit operates at one hundred fifteen volts and draws three point three amps. It delivers a motor output of one-fifteenth horsepower at one thousand fifty RPM. The motor is designed with a single speed and features a durable forty-two Y frame constructed from rolled steel. A totally enclosed non-ventilated design is utilized for this motor, making it suitable for air-over duty applications. It can operate in ambient temperatures up to forty degrees Celsius and rotates clockwise from the shaft end.

• Operates at 115V and rated speed of 1050 RPM
• Rolled steel frame with stud mounting
• Includes automatic overload protection

Product Highlights

Designed for reliable heating solutions, this blower motor will ensure efficient airflow for heating systems.

Product Information

Standard Information

• Rated Motor Output Power: 1/15 HP
• Rated Motor Speed: 1050 RPM

Technical Specifications

• Rated Motor Voltage: 115V
• Rated Motor Current: 3.3 AMP
• Frame: 42Y
• Enclosure: TENV
• Mounting: Stud
• Number of Speeds: 1 Speed
• Approximate Weight: 8 lb
• Insulation Class: B
• Rotation: CWSE
• Duty: Air Over
• Ambient Temperature: 40°C
• Shaft Diameter: 0.5 inches
• Shaft Length: 2.7 inches
• Agency Approvals: CSA & UL
• Country of Origin: Mexico
• Warranty: 1 Year
