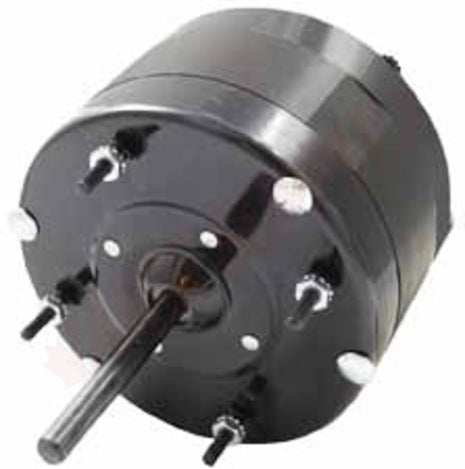

Packard 70242 Unit Heater/Ventilator Motor 115V 1/20 HP

Product Description

The Packard 70242 is a single-speed shaded pole motor ideal for unit heaters and ventilator fans. It operates efficiently at one hundred fifteen volts and sixty hertz, delivering one-twentieth horsepower at one thousand fifty RPM. This motor includes automatic thermal overload protection for safety and features Class A insulation, ensuring reliable operation.

• Designed for unit heaters and ventilator fans
• Automatic thermal overload protection
• 4-stud mounting configuration

Product Highlights

The totally enclosed design enhances safety during operation, making it suitable for various HVAC applications. The motor's body diameter is five inches with a length of three and one-eighth inches, excluding the shaft. The clockwise rotation from the shaft end provides efficient operational use. The shaft measures three-eighths by three inches and utilizes sleeve bearings for durability.

Product Information

Standard Information

• Brand: Packard
• MPN: 70242

Technical Specifications

• Body Diameter: 5 inches
• Amperage: 2.00
• Horsepower: 1/20
• RPM: 1050
• Speeds: 1
• Bearing: Sleeve
• Enclosure: Totally Enclosed
• Motor Type: Shaded Pole
• Thermal Protection: Automatic
• Wiring: Leads
• Mounting Type: 4 Stud
• Volts: 115
• Rotation: Clockwise from Shaft End
• Shaft Dimension: 3/8 x 3 inches
• Class Insulation: A
• Length Less Shaft: 3-1/8 inches
