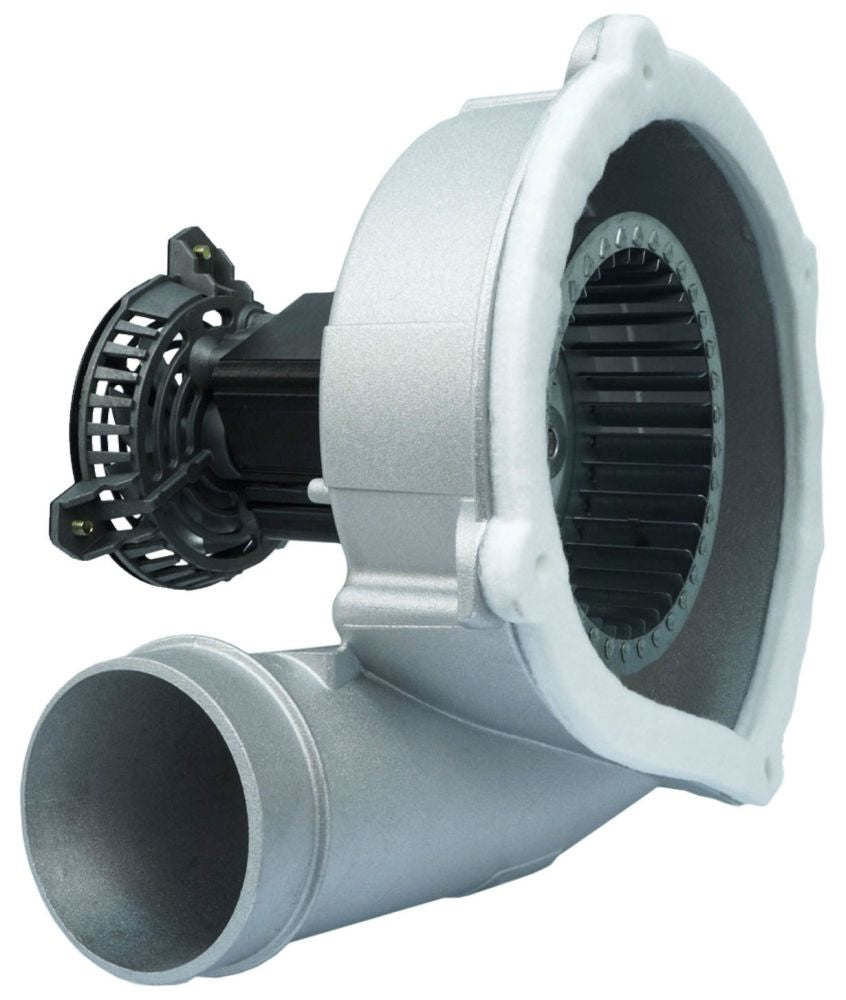

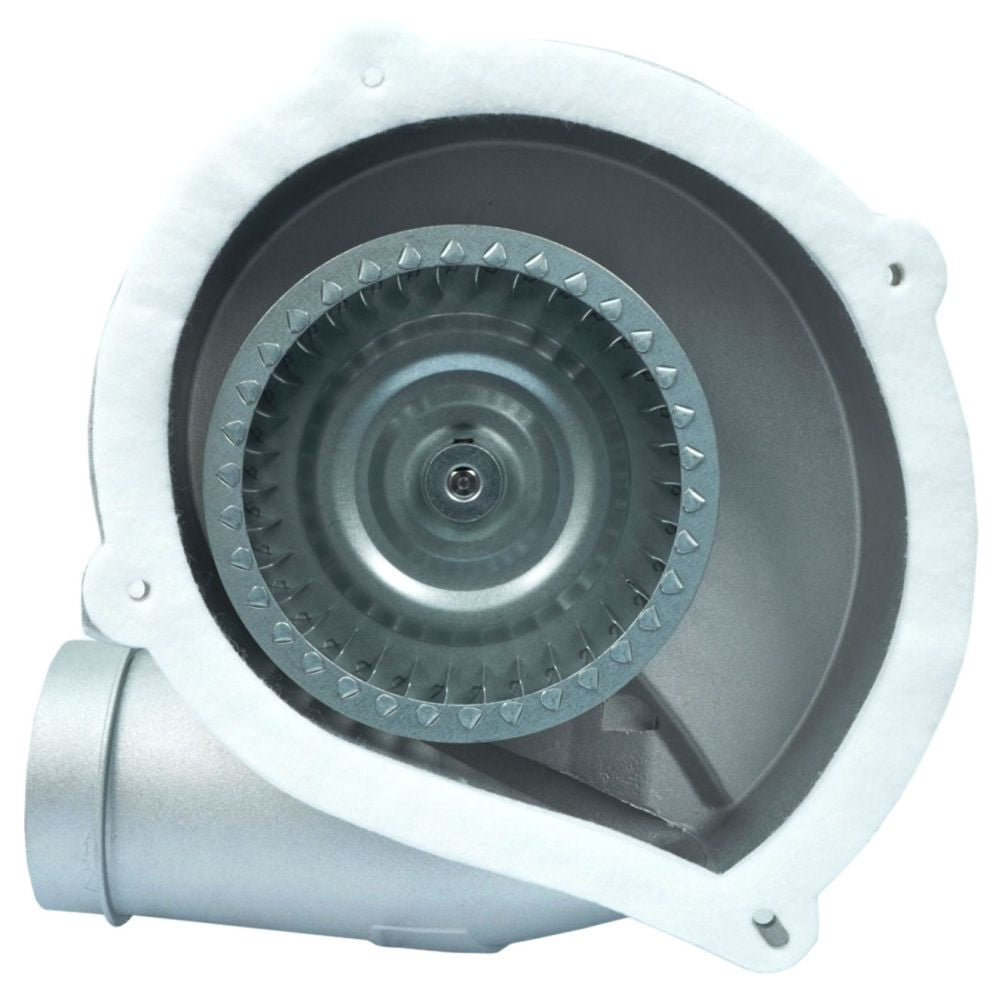

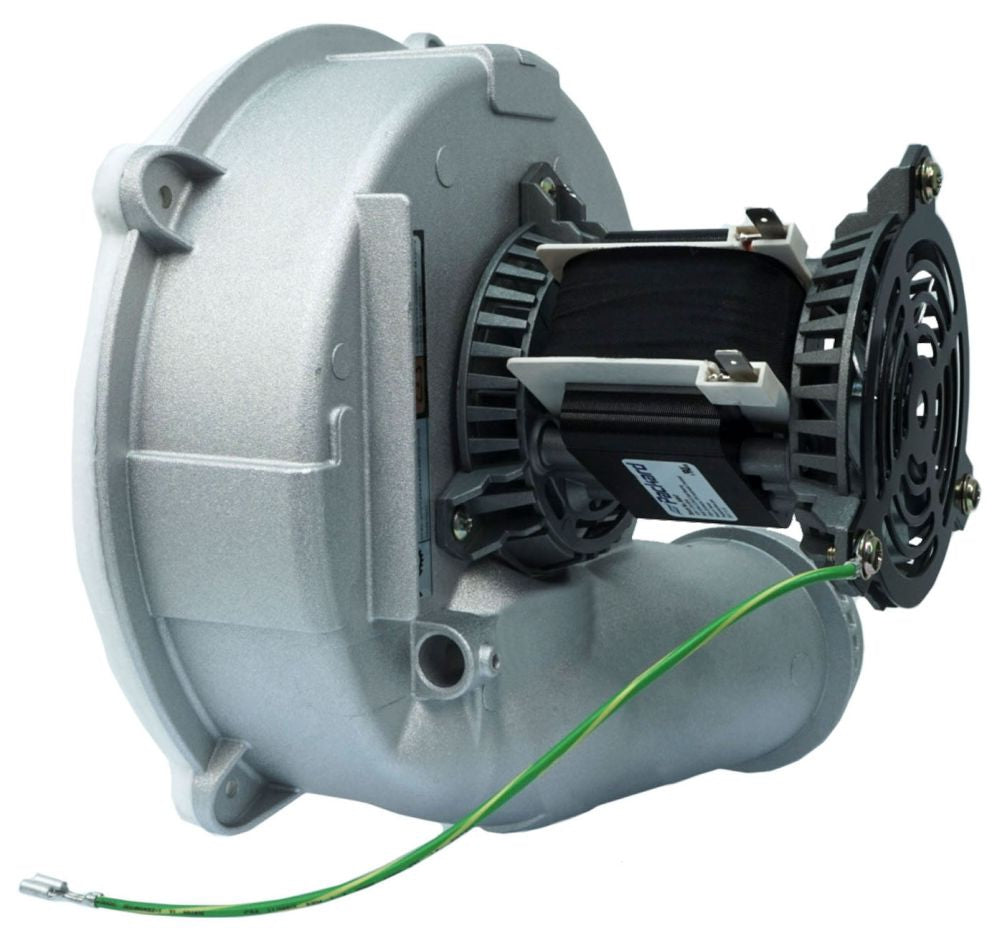

Packard 66847 9, 1/30 HP, 120 VAC 60 Hz 1-Phase, 1.7 A, 3000 RPM Draft Inducer for Furnace

Product Description

The Packard 66847 is a draft inducer designed specifically for furnaces. This unit operates at 120 VAC and has a horsepower rating of 1/30. It runs on single-phase power with a current rating of 1.7 Amps and reaches a maximum speed of 3000 RPM.

• Effective for high-efficiency gas-fired residential furnaces.
• Features automatic overload protection.
• Includes gasket for easy installation.

Product Highlights

This draft inducer is essential for maintaining the airflow in furnace systems.

Product Information

Standard Information

• Brand: Packard
• MPN: 66847

Technical Specifications

• Type: Draft Inducer
• Voltage Rating: 120 VAC
• Current Rating: 1.7 A
• Power Rating: 1/30 HP
• Speed Rating: 3000 RPM
• NEMA Frame Size: C
• Insulation Class: B
• Material: Metal
• Enclosure Type: Open
• Motor Type: Shaded Pole
• Rotation Type: Counter Clockwise Lead End
• Bearing Type: Ball
• Temperature Rating: 40 Deg C
