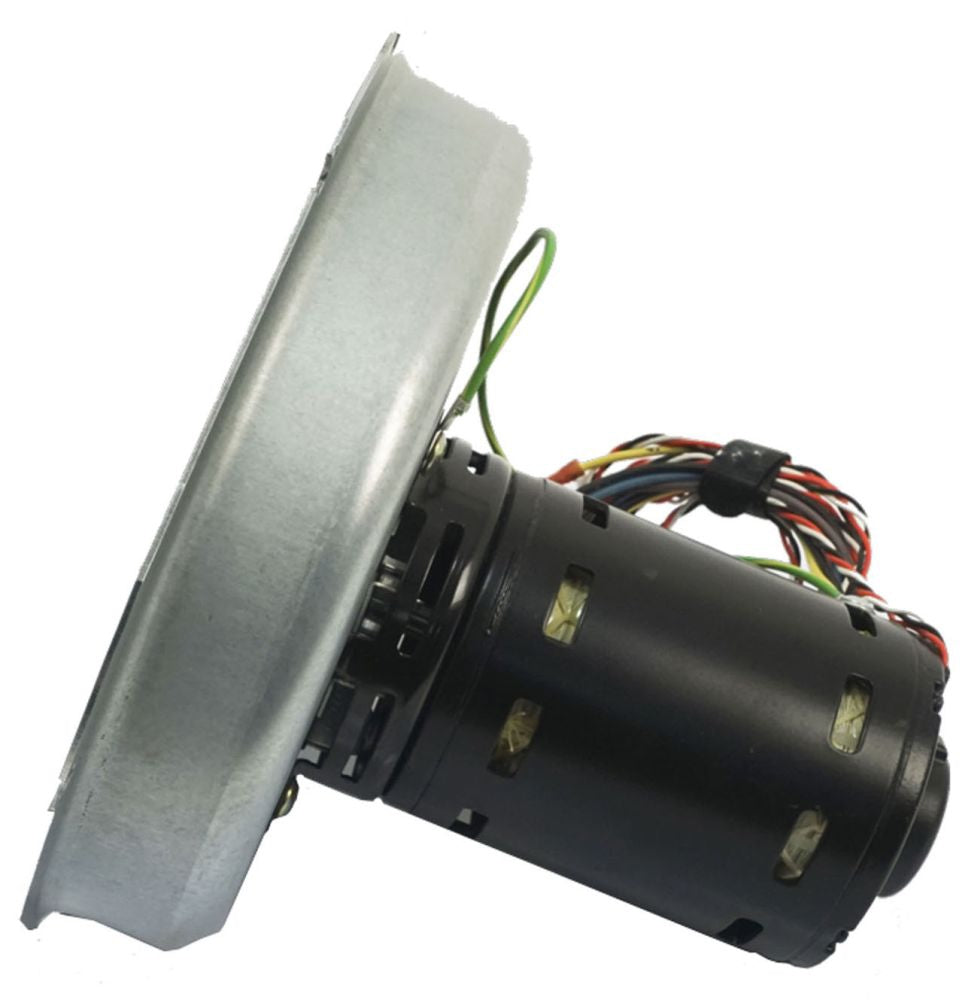

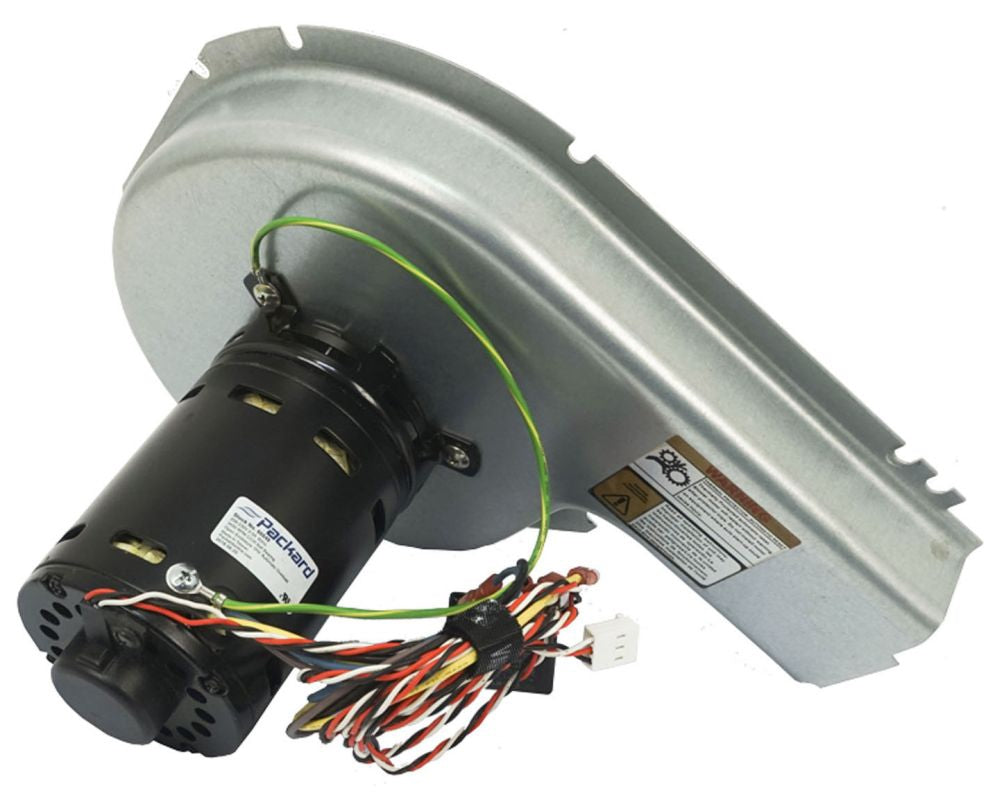

Packard 66649 1/16 HP 208 to 230 VAC Inducer Motor

Product Description

The Packard 66649 is a durable inducer motor for furnaces, operating at 1/16 horsepower. It is designed to work with voltages ranging from two hundred eight to two hundred thirty VAC, at sixty hertz, making it suitable for residential and commercial heating applications.

• Size: Three point three inches diameter by seven point eight six inches length
• Speed: Three thousand four hundred fifty RPM
• Class B insulation and permanent split capacitor motor

Product Highlights

This motor features a counterclockwise rotation, ensuring it meets the necessary airflow requirements for efficient furnace operation.

Product Information

Standard Information

• Manufacturer: Packard
• MPN: 66649
• Power Rating: 1/16 HP

Technical Specifications

• Voltage Rating: 208 to 230 VAC
• Current Rating: 0.48 Amps
• Speed Rating: 3450 RPM
• Number of Speeds: 1
• Insulation Class: B
• Material: Metal
• Enclosure Type: Open
• Motor Type: Permanent Split Capacitor
• Rotation Type: Counterclockwise shaft end
• Bearing Type: Ball
• Temperature Rating: 40 Degrees Celsius
• Includes: Mounting hardware, Hall sensor, gasket
• Approval: UL, CSA
