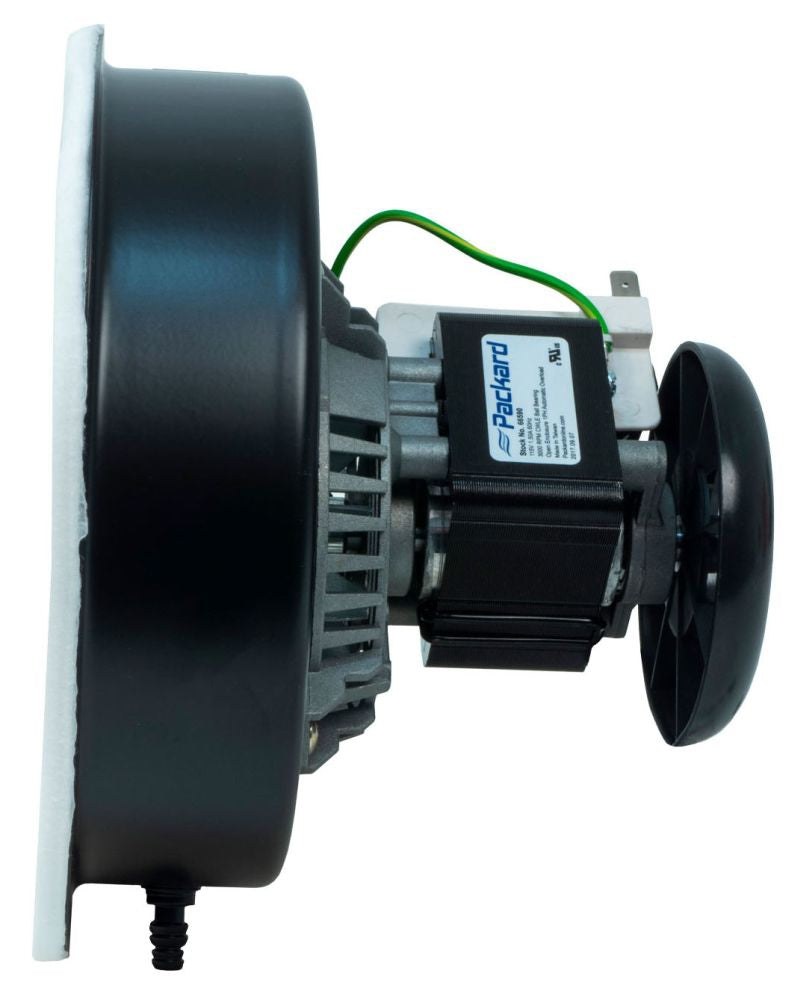

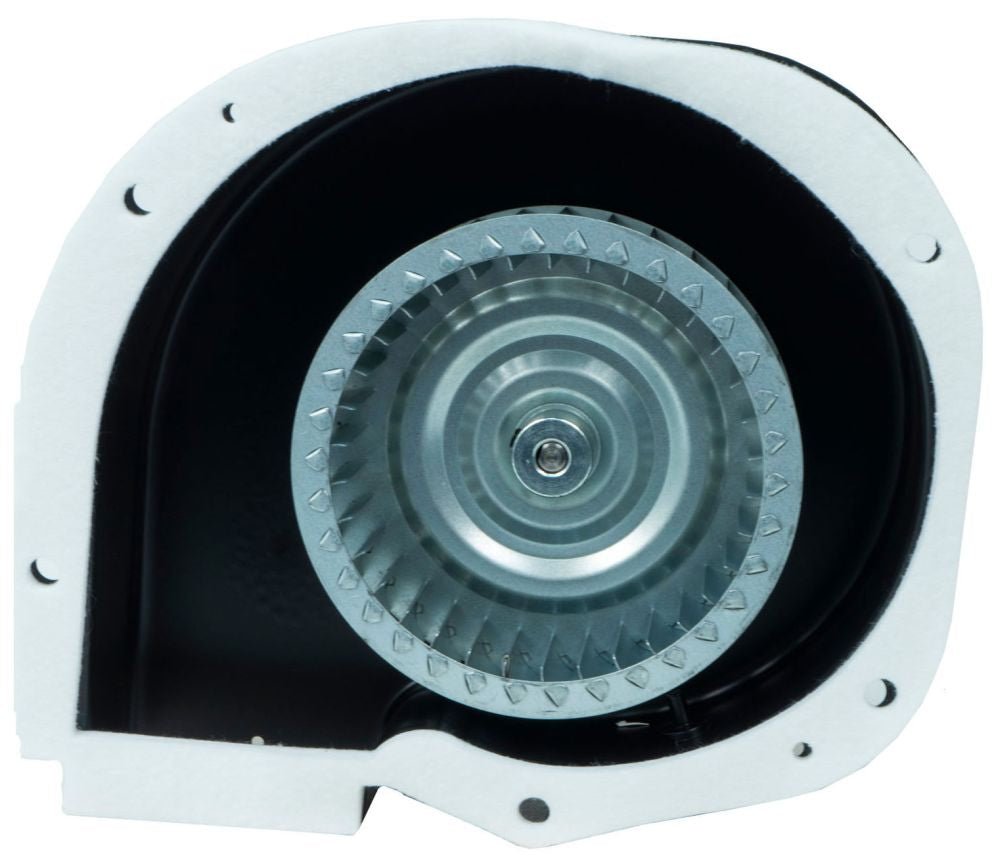

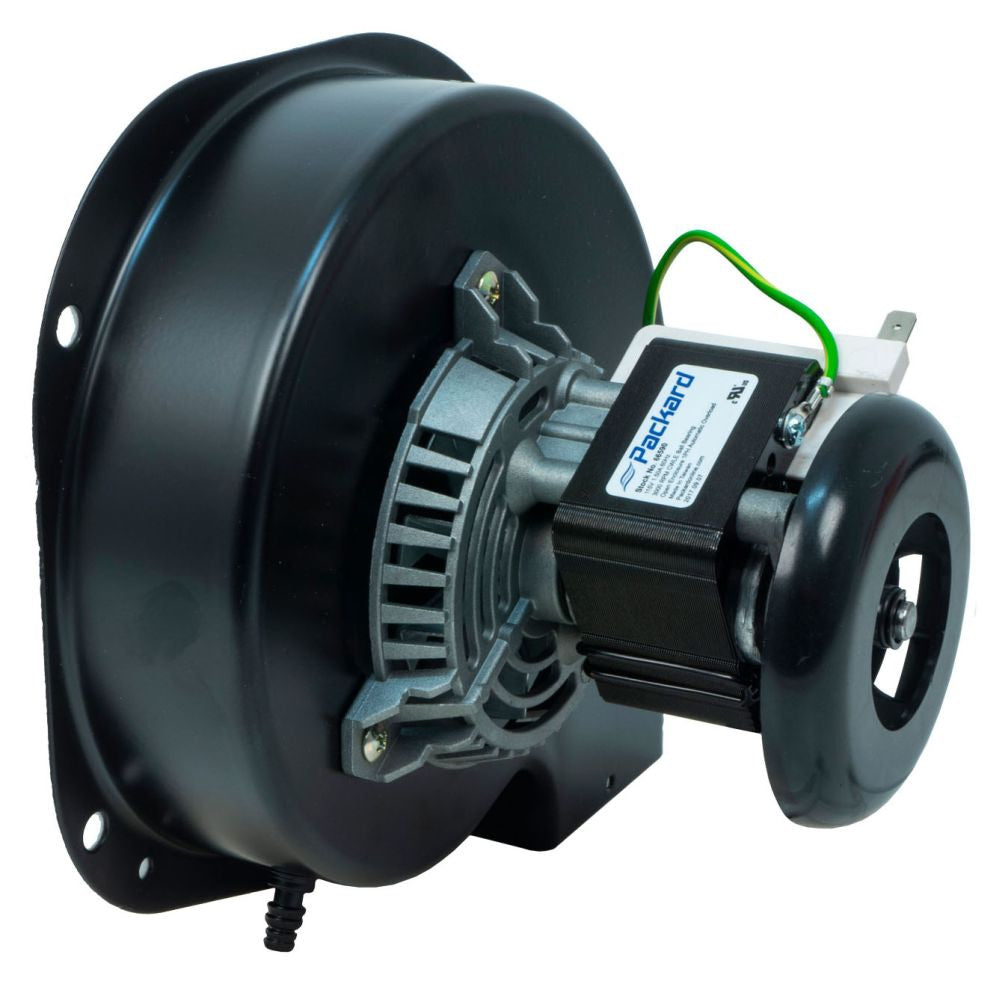

Packard 66590 Draft Inducer 1/30 HP 115 VAC 60 Hz 3000 RPM Replacement MPN 67515

Product Description

The Packard 66590 is a draft inducer designed for use with furnaces. This unit operates at one-thirtieth horsepower and is rated for 115 volts and 60 hertz. It has a maximum speed of three thousand revolutions per minute, featuring shaded pole motor design and ball bearings for durability.

• Designed for furnace applications.
• Operates at 115 VAC 60 Hz.
• Includes gasket and mounting hardware.

Product Highlights

This draft inducer offers reliable operation with automatic overload protection and is suitable for various heating systems.

Product Information

Standard Information

• Brand: Packard
• MPN: 66590

Technical Specifications

• Power Rating: 1/30 HP
• Voltage: 115 VAC
• Current Rating: 1.5 A
• Speed Rating: 3000 RPM
• Number of Speeds: 1
• Insulation Class: B
• Material: Metal
• Motor Type: Shaded Pole
• Rotation Type: Clockwise Lead End
• Bearing Type: Ball
• Temperature Rating: 40°C
• Static Pressure: 69 at 0.1 Inch
• Approval: UL, CSA
