Product Description

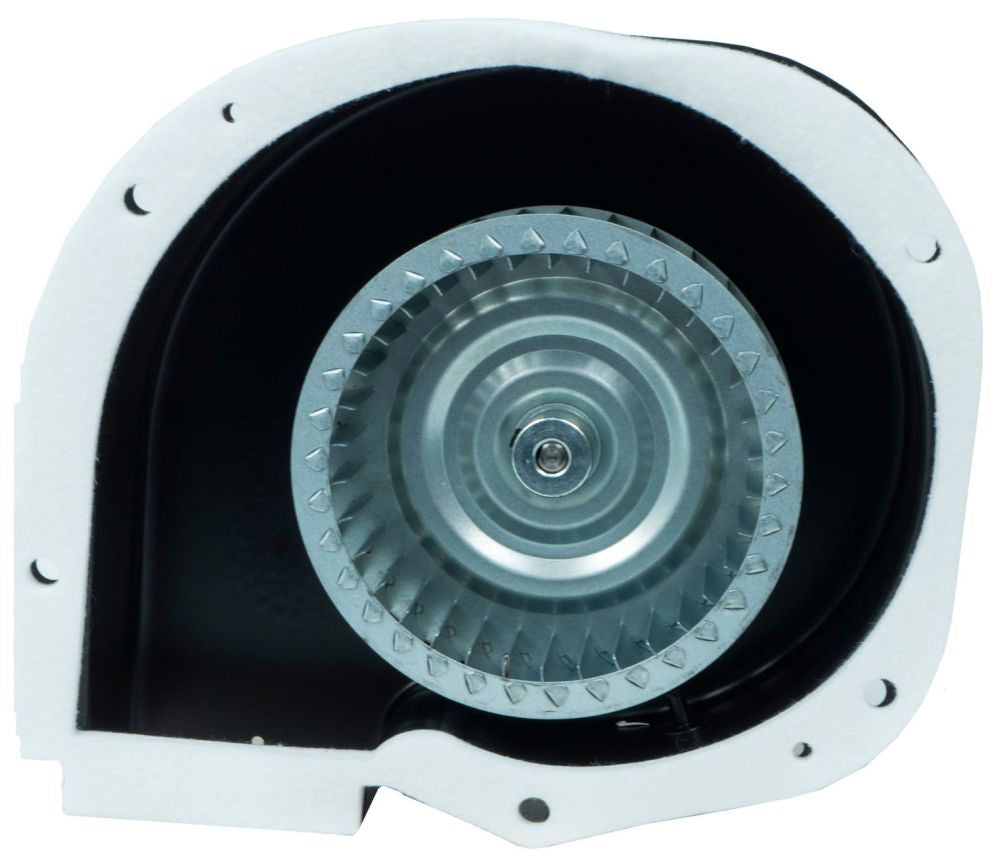

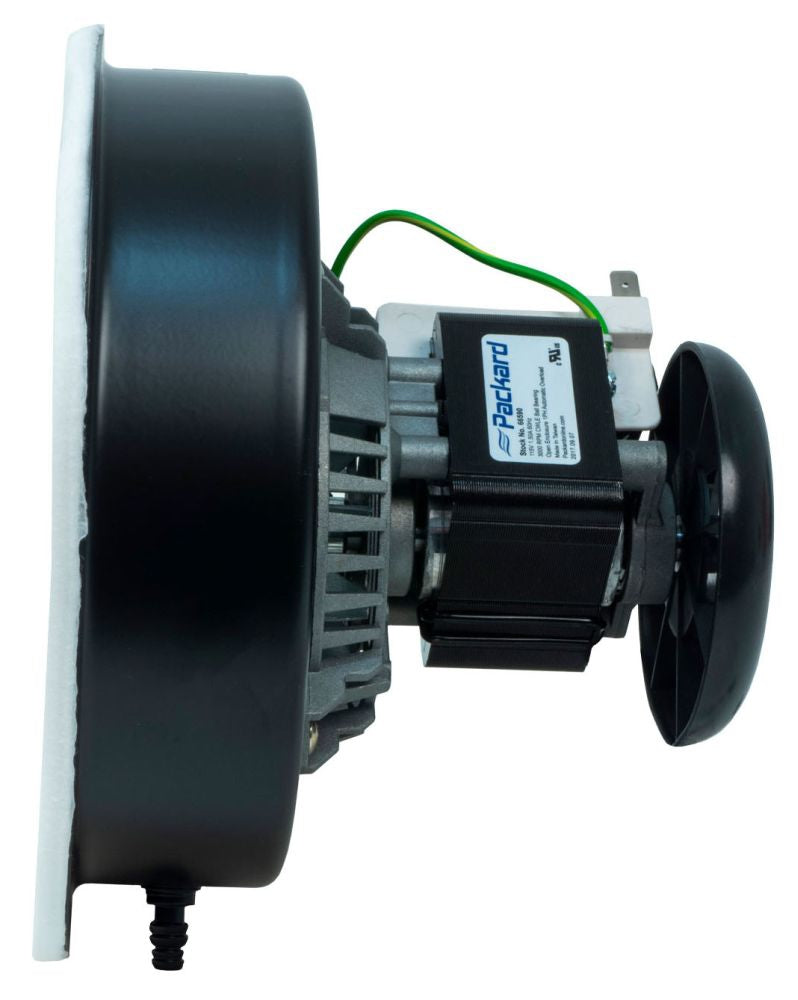

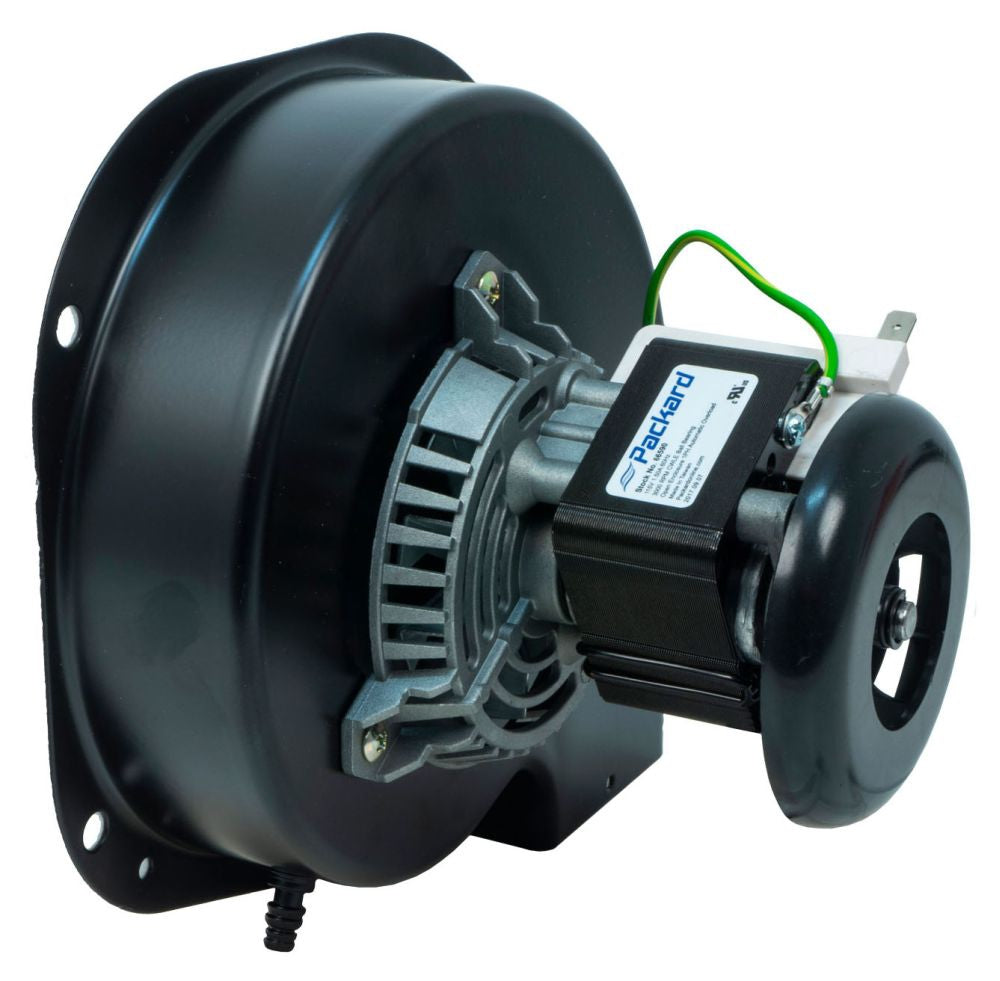

The Packard 66590 Draft Inducer is designed for furnace applications. This inducer motor operates at one-third horsepower and runs on a voltage of one hundred fifteen volts at sixty hertz. The motor is a shaded pole type and features a clockwise lead end rotation.
- Power Rating: 1/30 HP
- Speed Rating: 3000 RPM
- Insulation Class: B
Product Highlights
This draft inducer features automatic overload protection. The unit includes necessary mounting hardware and a gasket for installation. It is UL and CSA approved for safety.
Product Information
Standard Information
-
Brand: Packard
-
Type: Draft Inducer
Technical Specifications
-
MPN: 66590
-
Voltage Rating: 115 VAC
-
Current Rating: 1.5 A
-
Number of Speeds: 1
-
Material: Metal
-
Static Pressure: 69 at 0.1 Inch, 68 at 0.2 Inch
-
Temperature Rating: 40 Deg C
-
Bearing Type: Ball
