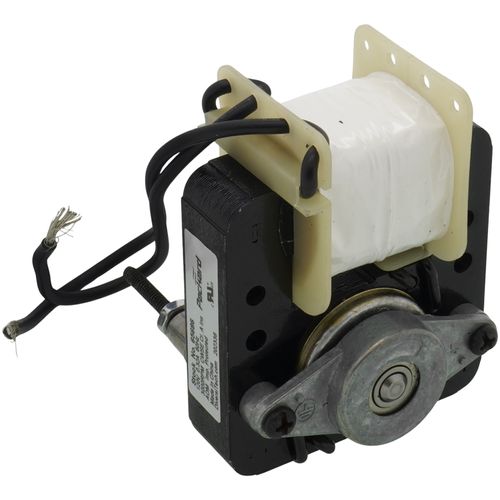

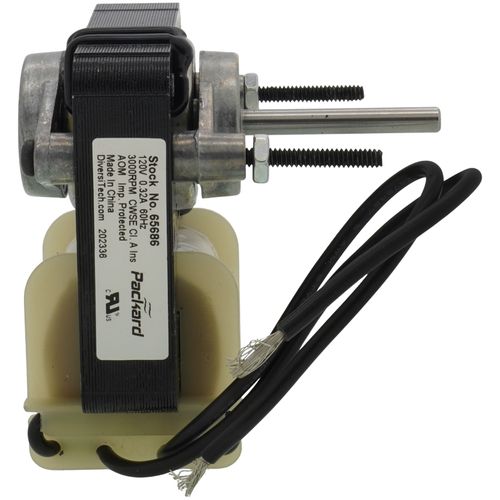

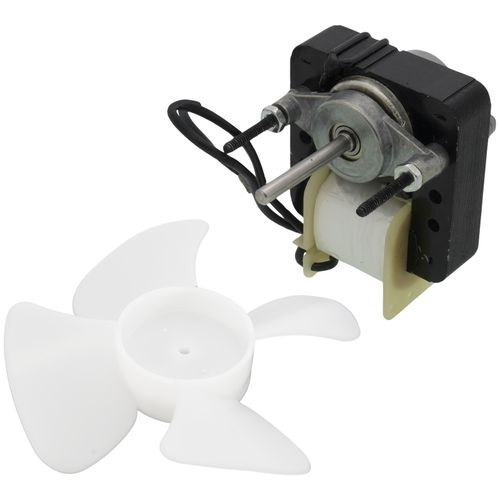

Packard 65686 C-Frame Shaded Pole Motor Kit 120V 3000 RPM

Product Description

The Packard 65686 C-Frame Shaded Pole Motor Kit is suitable for various applications including evaporators, refrigerators, range hoods, ventilators, exhaust fans, and unit heaters. This motor operates at a voltage of 120V with a speed of 3000 RPM. It features mechanically reversible rotation, determined by viewing the shaft end. The motor is designed with a shaded pole mechanism and an open enclosure.

• Designed for multiple applications including evaporators and exhaust fans
• Operates at 120V and 3000 RPM
• Mechanically reversible rotation

Product Highlights

This motor provides a dependable solution for HVAC systems and other ventilation needs, ensuring optimal airflow and performance.

Product Information

Standard Information

• Brand: Packard
• Model: 65686

Technical Specifications

• Motor: Shaded Pole
• Voltage: 120V
• Enclosure Type: Open
• RPM: 3000
• Bearings: Ball
• Rotation: CW
• Amperage: 0.41
• Agency Certification: UR
• Efficiency: 30%
• Hz: 60
• Insulation Class: B
• Mounting: Thru-bolt
• NEMA Frame: C
• Phase: Single
• Replaces: Mars #90948 Gem #EM686
• Service Factor: 1.00
• Shaft Diameter: 3/16 inches
• Shaft Length: 1-1/4 inches
• Speeds: 1
• Stack Height: 5/8 inches
• Standard Mounting Position: Horizontal Only
• Thermal Protection: Impedance
• Type: Shaded Pole
