Product Description

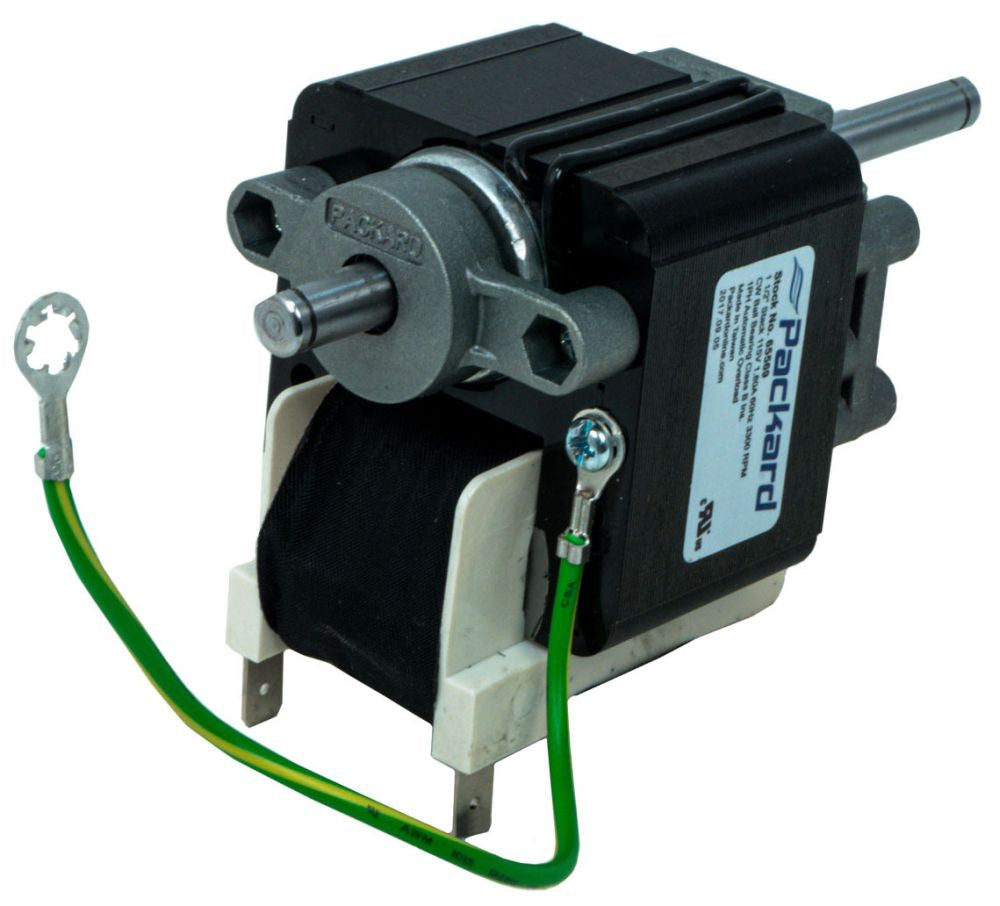

The Packard 65569 is a combustion motor kit designed for applications requiring reliable performance. This model operates at 25 MHP and runs on 115 VAC power. It supports a single speed with a maximum speed rating of 3300 RPM. The installation is straightforward with a bracket mount and includes a metal housing. This motor is suitable for various HVAC systems and is capable of effective operation under demanding conditions.
- Power Rating: 25 MHP
- Voltage: 115 VAC, 1-Phase
- Speed: 3300 RPM, 1 Speed
Product Highlights
Effective for heating and cooling applications, the Packard 65569 performs well in environmental conditions up to 40 degrees Celsius. The motor features an open enclosure with a shaded pole design for efficient airflow. It is UL and CSA approved to ensure safety and compliance with industry standards.
Product Information
Standard Information
-
Brand: Packard
-
MPN: 65569
Technical Specifications
-
Enclosure Type: Open
-
Insulation Class: B
-
NEMA Frame Size: C
-
Motor FLA: 1.8 Amp
-
Mounting: Bracket
-
Number of Speeds: 1
-
Frequency Rating: 60 Hertz
-
Ambient Temperature Rating: 40 Degrees Celsius
-

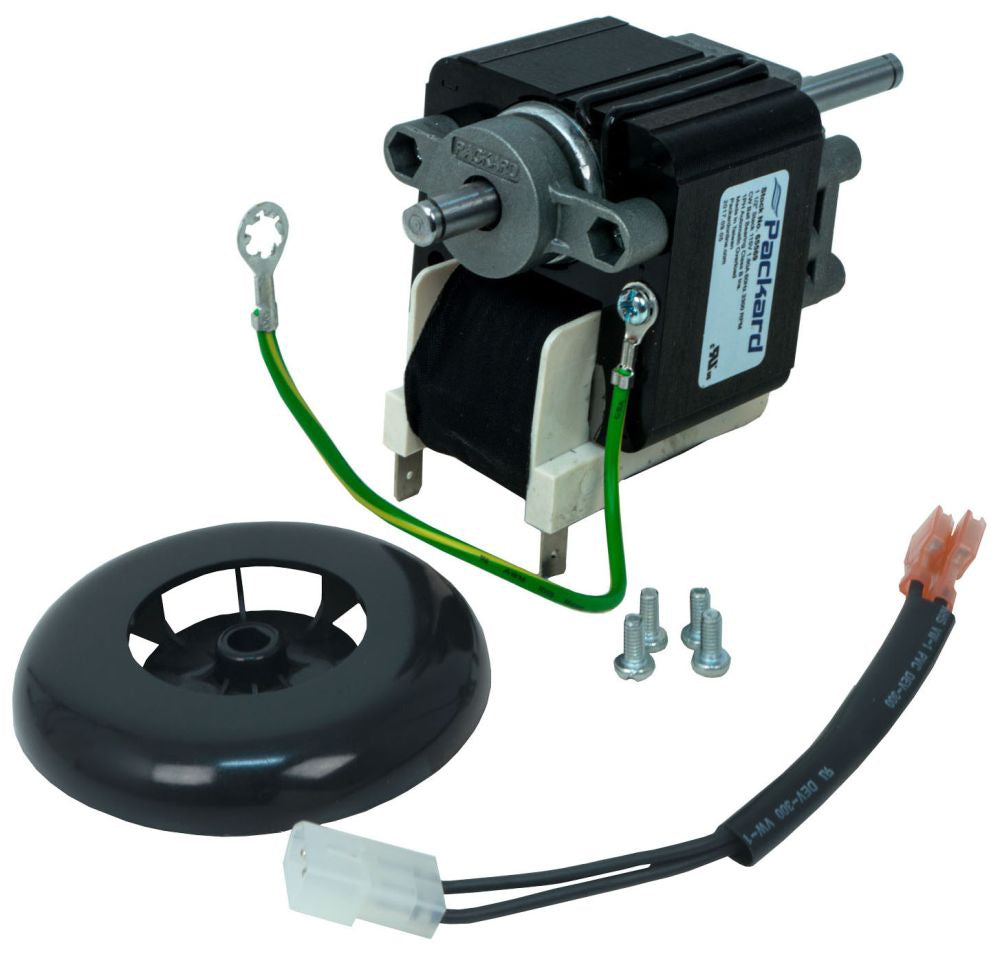

Includes: Special leads and plug, plastic fan blade, mounting hardware
