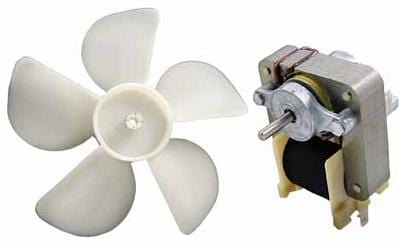

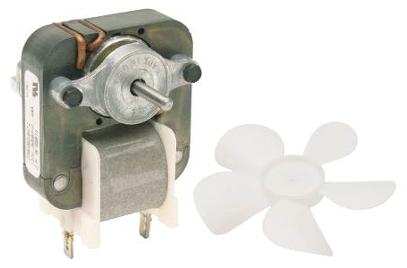

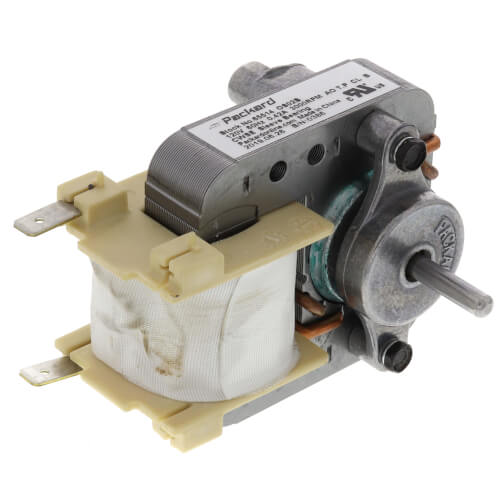

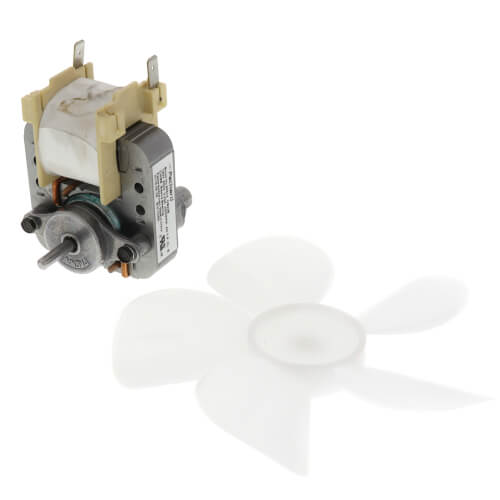

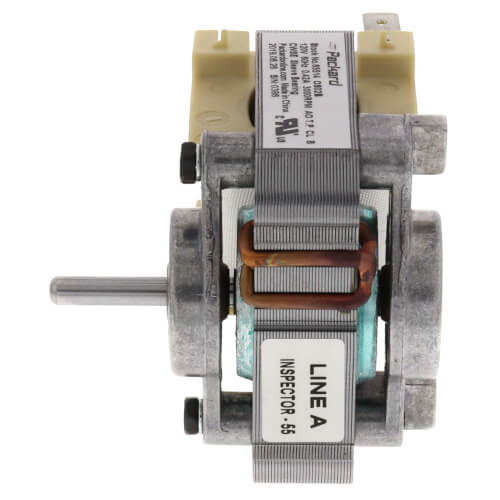

Packard 65514 C-Frame Delfield Replacement Motor Kit 120V 3000 RPM

Product Description

The Packard 65514 C-Frame Delfield Replacement Motor Kit is suitable for multiple applications such as evaporators, refrigerators, range hoods, ventilators, exhaust fans, and unit heaters. This shaded pole motor operates at a voltage of one hundred twenty volts and supports a rotation speed of three thousand RPM. It is crafted with sleeve bearings and allows for stud mounting. The motor's design includes CWSE rotation when viewed from the shaft end and serves as a direct replacement for various models including Nutone, Gemline, and Bohn motors.

• Voltage: 120V
• Speed: 3000 RPM
• Amperage: 0.44 Amps

Product Highlights

This motor is efficient for HVAC applications and can replace faulty motors seamlessly across many brands.

Product Information

Standard Information

• Brand: Packard
• Manufacturer Part Number: 65514

Technical Specifications

• Type: Shaded Pole
• Voltage: 120V
• Enclosure Type: Open
• RPM: 3000
• Amperage: 0.44
• Rotation: CWSE
• Bearings: Sleeve
• Agency Certification: UR
• Efficiency: 30%
• Hz: 60
• Insulation Class: B
• Mounting: Thru-bolt
• NEMA Frame: C
• Phase: Single
• Service Factor: 1.00
• Shaft Diameter: 3/16 inches
• Shaft Length: 3/4 inches
• Speeds: 1
• Stack Height: 5/8 inches
• Standard Mounting Position: Horizontal Only
• Thermal Protection: Impedance
• Frame: C-Frame
