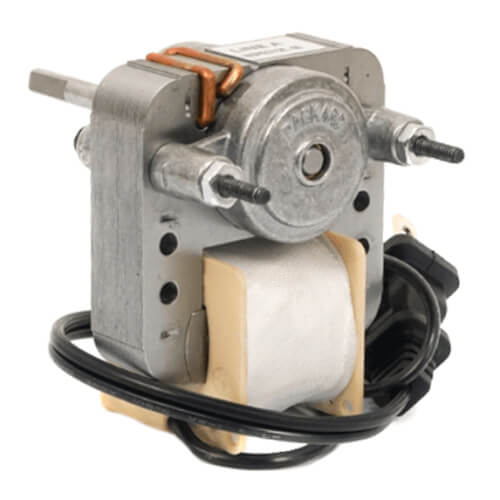

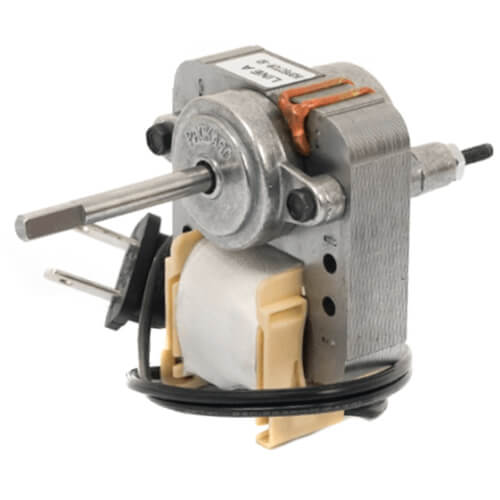

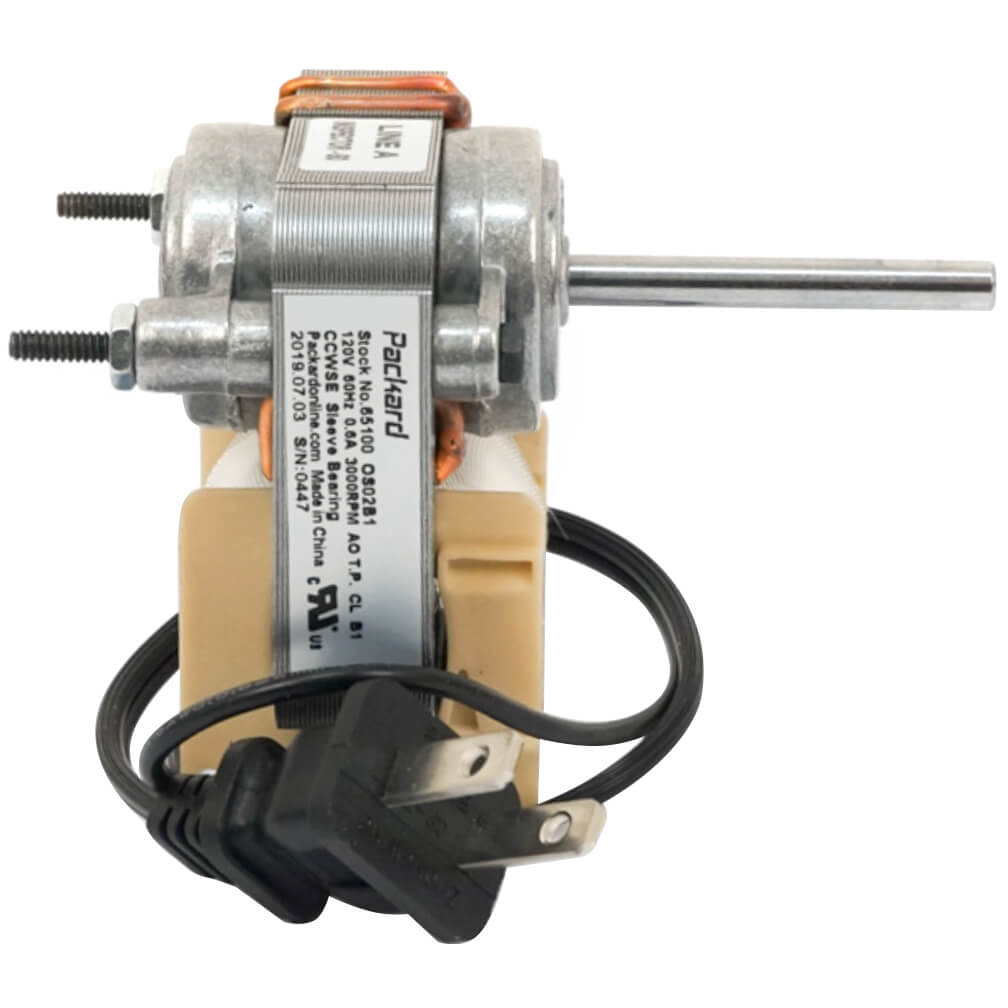

Packard 65100 1-Speed C-Frame Shaded Pole Motor CCWSE 3000 RPM

Product Description

The Packard 65100 is a one-speed shaded pole motor designed for various applications. This motor operates at a voltage of one hundred twenty volts with a frequency of sixty hertz. It produces a maximum speed of three thousand RPM and has a current rating of zero point six amps. It is ideal for use in evaporators, refrigerators, range hoods, ventilators, exhaust fans, and unit heaters.

• Open enclosure type
• Includes impeller and a two-prong plug
• Compatible with select Nutone models

Product Highlights

This motor features a shaded pole design and sleeve bearings for efficient operation, along with a stud mount for easy installation.

Product Information

Standard Information

• Manufacturer: Packard
• UPC: 840899115979

Technical Specifications

• Voltage Rating: 120 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 0.6 Amp
• Speed Rating: 3000 RPM
• NEMA Frame Size: C
• Mounting Type: Stud
• Applications: Evaporator, Refrigerator, Range Hood, Ventilator, Exhaust Fan, Unit Heater
• Type: Shaded Pole
• Rotation Type: Counter Clockwise Shaft End
• Bearings Type: Sleeve
• Stack Size: 1/2 Inch
• Shaft Size: 7/32 Inch Diameter x 1-5/8 Inch Length
