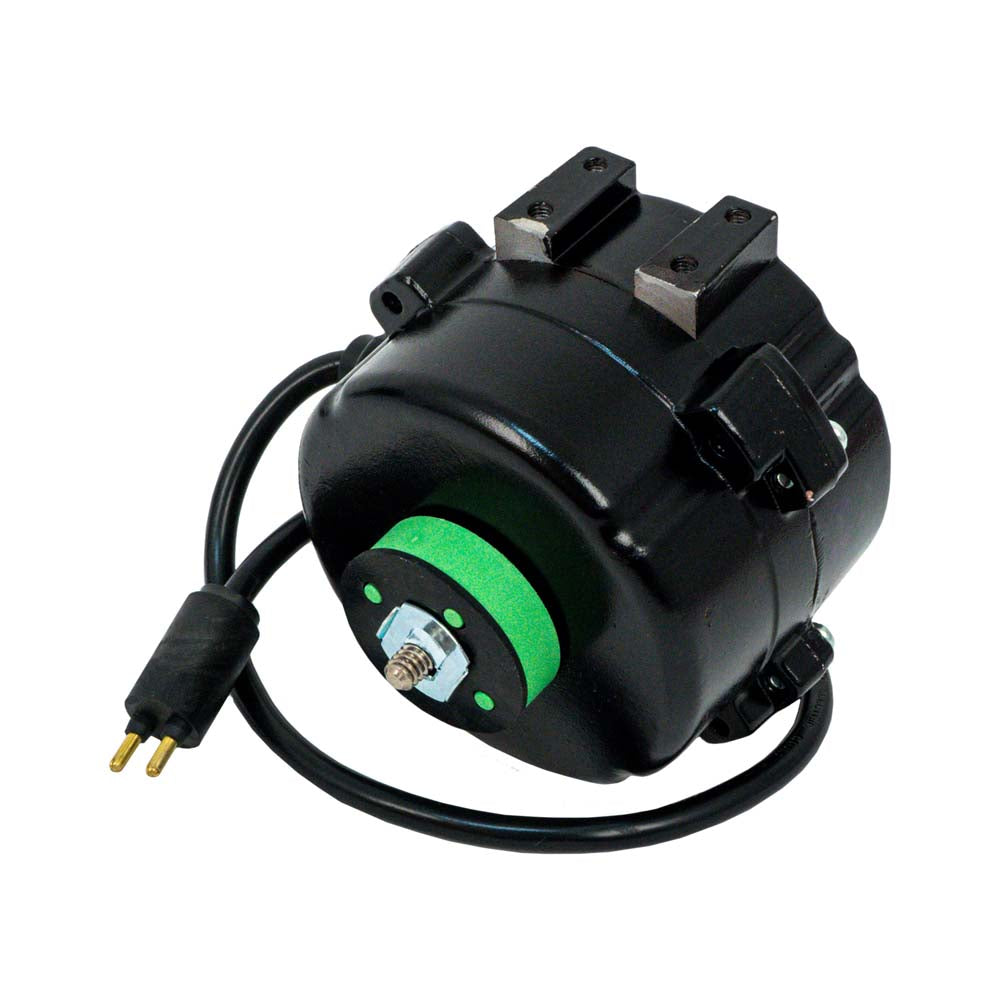

Packard 5412EC EC MAX RM Refrigeration Motor

Product Description

The Packard 5412EC is an EC MAX RM refrigeration motor specifically designed for condenser applications. It operates efficiently within a range of four to twenty-five watts and is compatible with both 115 and 230-volt power systems at 60 or 50 hertz. This motor features a constant speed ECM, maintaining a consistent rotation speed of approximately one thousand five hundred RPM. The shaft dimension is one-fourth by one-half inches, with a length of three inches excluding the shaft.

• Features constant speed ECM functionality
• Rated IP67 for protection against environmental factors
• Ball bearing design allows for mounting at any angle

Product Highlights

This motor is ideal for various refrigeration tasks. It operates at low amperage, ensuring efficient power usage while delivering consistent performance.

Product Information

Standard Information

• Motor Type: Condenser
• Voltage: 115-230V

Technical Specifications

• Horsepower: 4-25 Watts
• Speed: 1500 RPM
• Amperage: 0.1-0.56/0.06-0.34 Amps
• Hertz: 60/50
• Shaft Dimension: 1/4 X 1/2 inches
• Length Less Shaft: 3 inches
