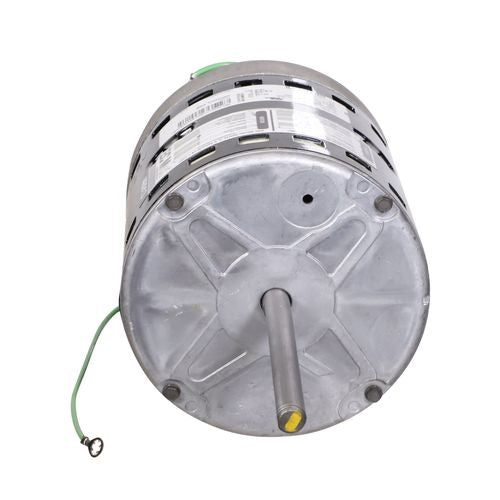

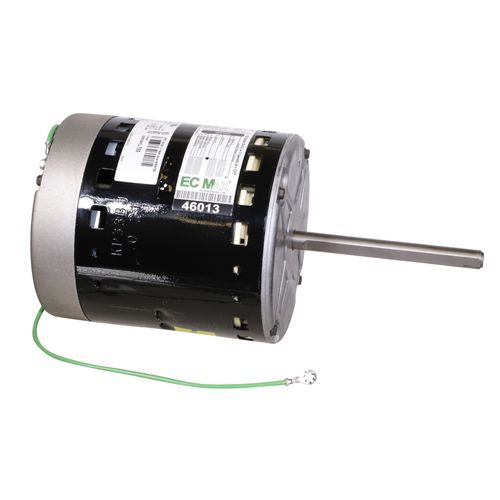

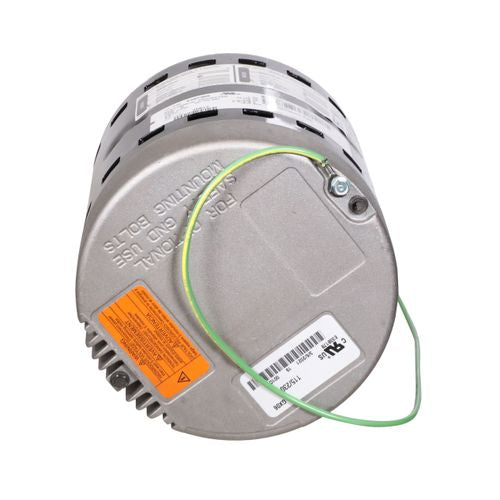

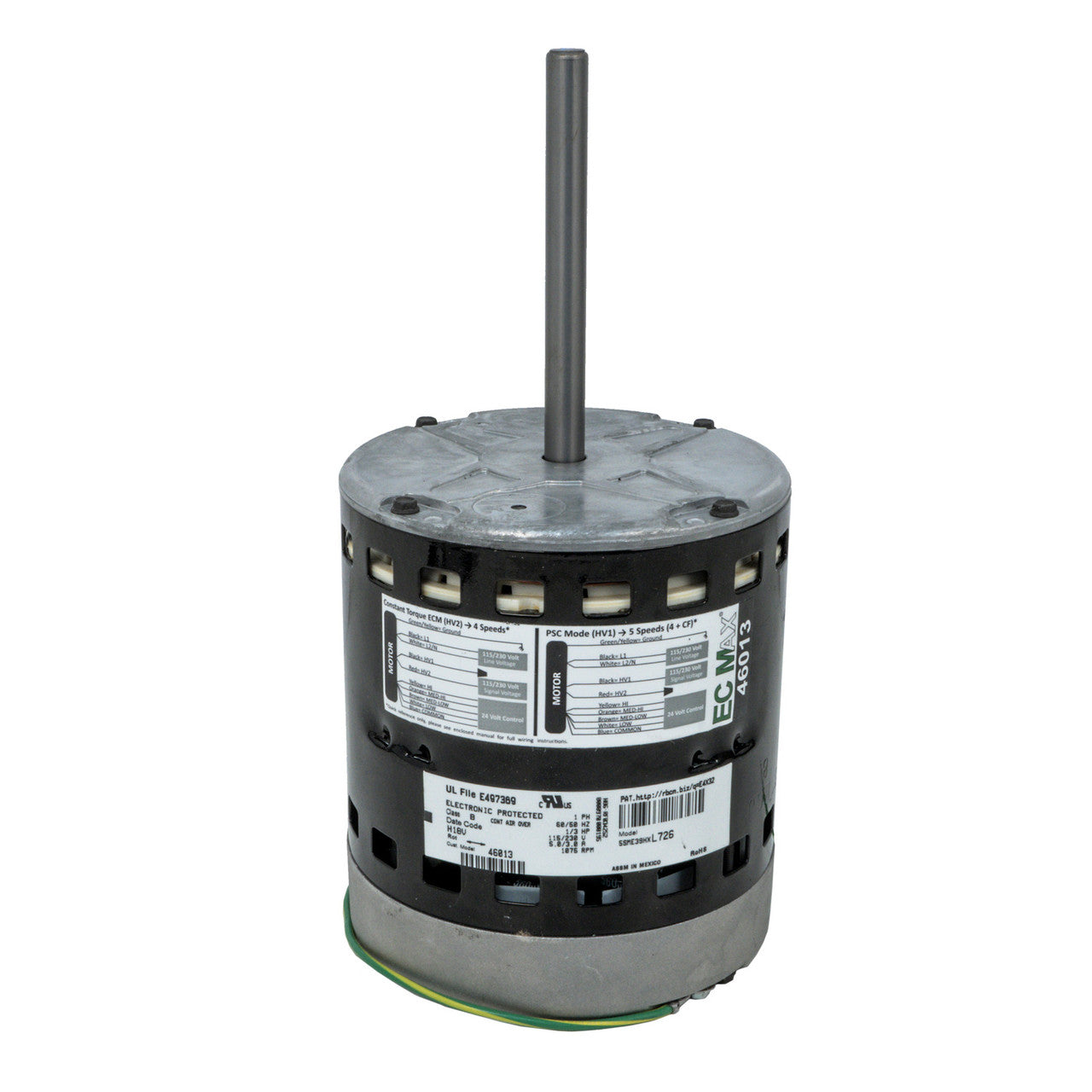

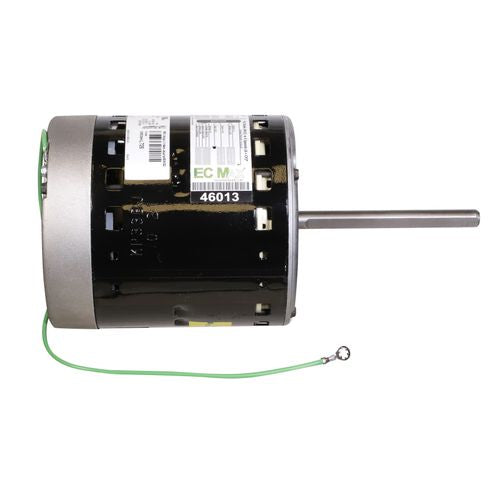

Packard 46013 1/3 HP 1070 RPM ECM Direct Drive Blower Motor

Product Description

The Packard 46013 is a direct drive blower motor optimal for indoor air comfort. Rated at 1/3 HP and 1075 RPM for 115/230 volts 1 phase supply, it features a 48 frame and a 1/2 shaft diameter. This open ventilated motor has ball bearings and includes a wiring harness and installation guide.

• High Efficiency ECM: Up to 80% Efficient
• Replaces either PSC or X13 model of equivalent HP
• Dual Voltage Design: Replace 115 or 230V with one motor

Product Highlights

The Packard 46013 is dual voltage rated and has rotation sensing capability. It can replace constant torque EC motors and be installed as an upgrade for PSC motors.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: 46013
• Country of Origin: MEXICO

Technical Specifications

• Rated Motor Output Power: 1/3 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 115V, 230V
• Rated Motor Current: 5.0/3.0 AMP
• Phase: 1
• Frequency: 60 Hz
• Frame: 48
• Enclosure: OAO
• Mounting: Belly Band
• Number of Speeds: 1 Speed
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: Reversible
• Ambient Temp: 40°C
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 0.5"
• Greaseable: No
• Country of Origin: MEXICO
• Motor Type: ECM
• Speeds: 4
• phases: Single
• Volts: 115, 230
• Hertz: 50, 60
• Horsepower: 1/3
• Amps: 3, 5
• Shaft ( in.): 1/2 in. x 5 in.
• Catalog Number: 46013
• Bearings: Ball
• DEM Reference: 46013
• Manufacturer Name: Packard
• MPN: 46013
• A2L Certified: Not Applicable
