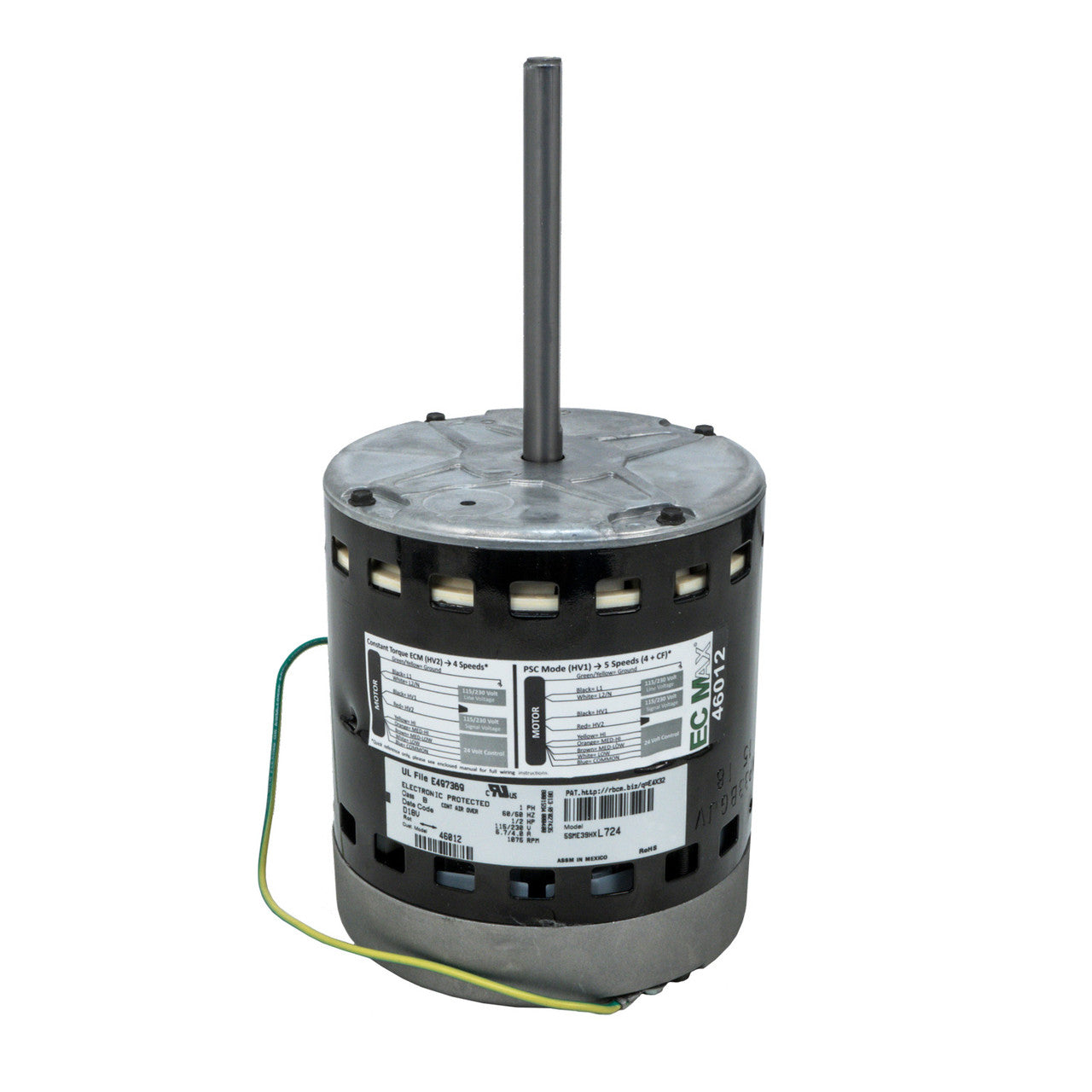

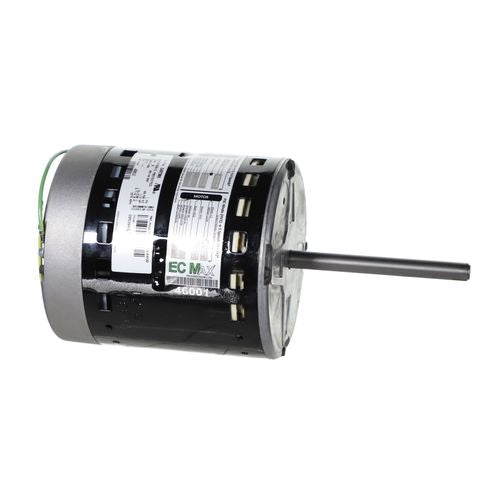

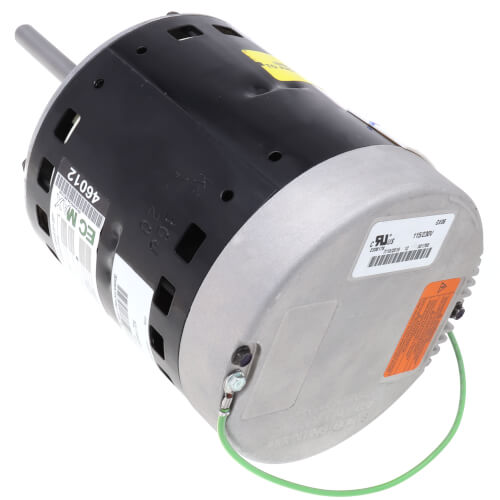

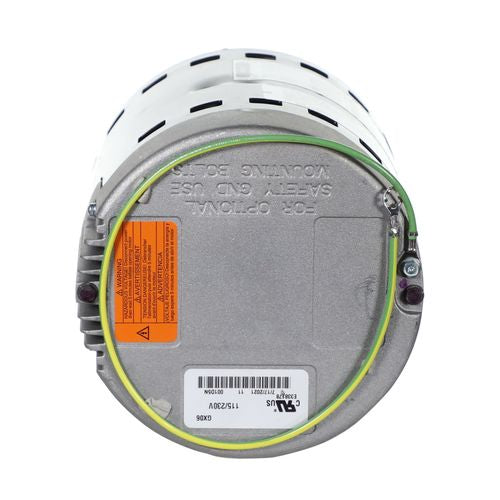

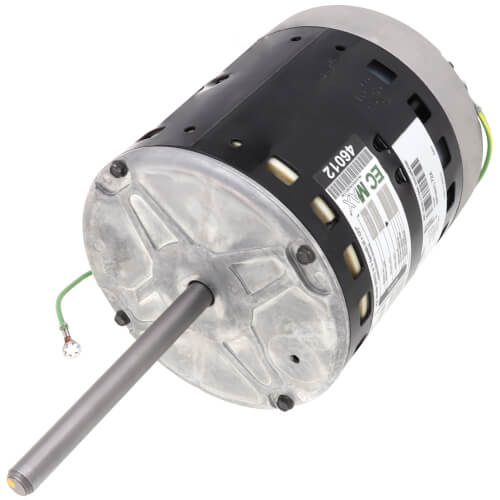

Packard 46012 EC Direct Drive Blower Motor 1/2 HP (115/230V, 1070 RPM)

Product Description

The Packard 46012 is a direct drive blower motor rated at 1/2 HP and 1070 RPM for 115/230 volts 1 phase supply. It is able to replace constant torque EC motors and can be installed as an upgrade for PSC motors. This motor has a 48 frame and features rotation sensing capability. Each motor comes with a wiring harness and installation manual.

• High Efficiency ECM: Up to 80% efficient
• Replaces either PSC or X13 model of equivalent HP
• Dual Voltage Design: Replace 115 or 230V with one motor

Product Highlights

The Packard 46012 EC Max motor maintains ECM level efficiency and automatically selects the correct rotation upon first start up. Wiring harness and installation guide included.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: 46012
• Country of Origin: MEXICO

Technical Specifications

• Manufacturer: Packard Inc.
• Product Type: ELECTRIC_MOTOR
• Type: ECM
• Amperage: 6.7
• Horse Power: 1/2
• Rotation: Reversible
• RPM: 1075
• Bearings: Ball
• Voltage: 115/208-230v
• Enclosure Type: Open
• Hertz: 50/60
• Frame: 48Y
• Motor Type: ECM
• phases: Single
• Mounting: Belly Band
• Shaft ( in.): 1/2 in. x 6 in.
• Rated Motor Output Power: 1/2 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 115V, 230V
• Rated Motor Current: 6.7/4.0 AMP
• Phase: 1
• Enclosure: OAO
• Number of Speeds: 1 Speed
• Double Drilled: No
• Frame Material: Rolled Steel
• C-Dimension: 11.26"
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 0.5"
• Greaseable: No
• Frequency: 60 Hz
• Ambient Temp: 40°C
• Insulation Class: B
• DEM Reference: 46012
