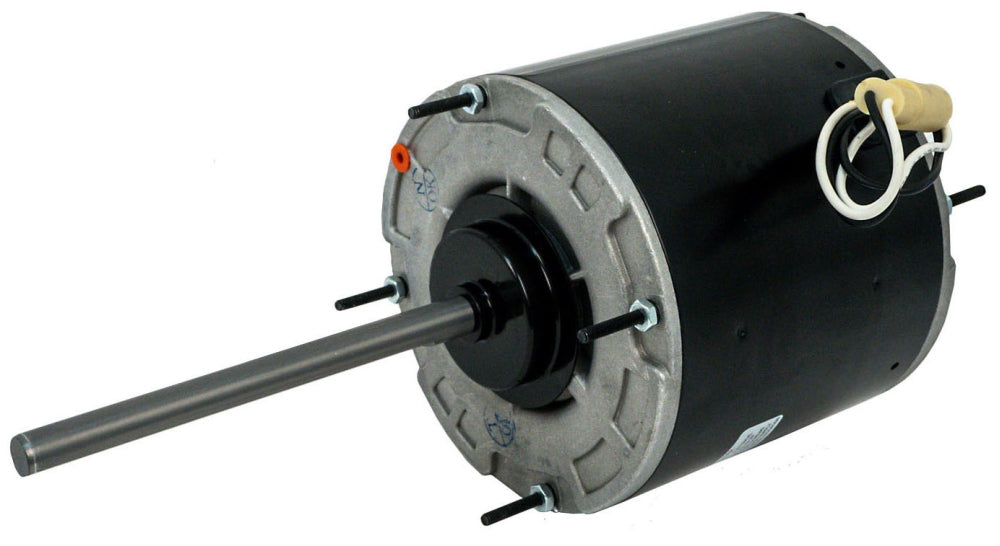

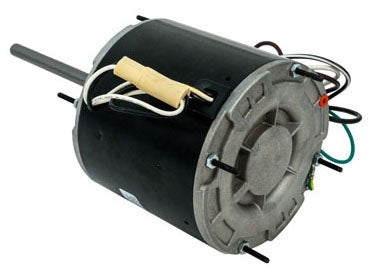

Packard 45488BF High Temp Multi-HP Condenser Fan Motor 208-230V 825 RPM Replacement 45488BF

Product Description

Optimized for HVAC systems, the Packard 45488BF condenser fan motor enhances performance in various thermal environments. With a durable design optimized for high temperatures, this motor is an essential component for maintaining air conditioning and heat pump units.

• Multi-horsepower settings (1/8 to 1/4 HP) suitable for versatile applications
• Single-speed, 825 RPM, and reversible motor function for efficient operation
• Equipped with automatic overload protection and ball bearings for longevity and safety

Product Highlights

Designed for robust performance, the Packard 45488BF condenser fan motor supports condenser units and heat pumps with vertical shaft positioning. Its belly band or extended clamp screw mounting options accommodate different setups.

Product Information

Standard Information

• Approval: UL, CSA
• Enclosure Type: Totally Enclosed, Air-Over

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC, 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 to 2 Amp
• NEMA Frame Size: 48
• Mounting: Belly Band or Extended Clamp Screw
• Reversible: Yes
• Speed Rating: 825 RPM
• Bearing Type: Ball
