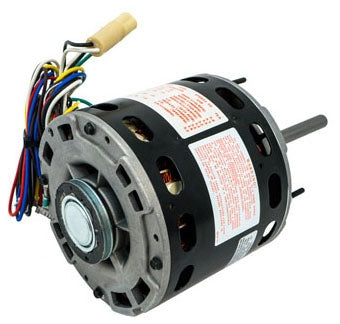

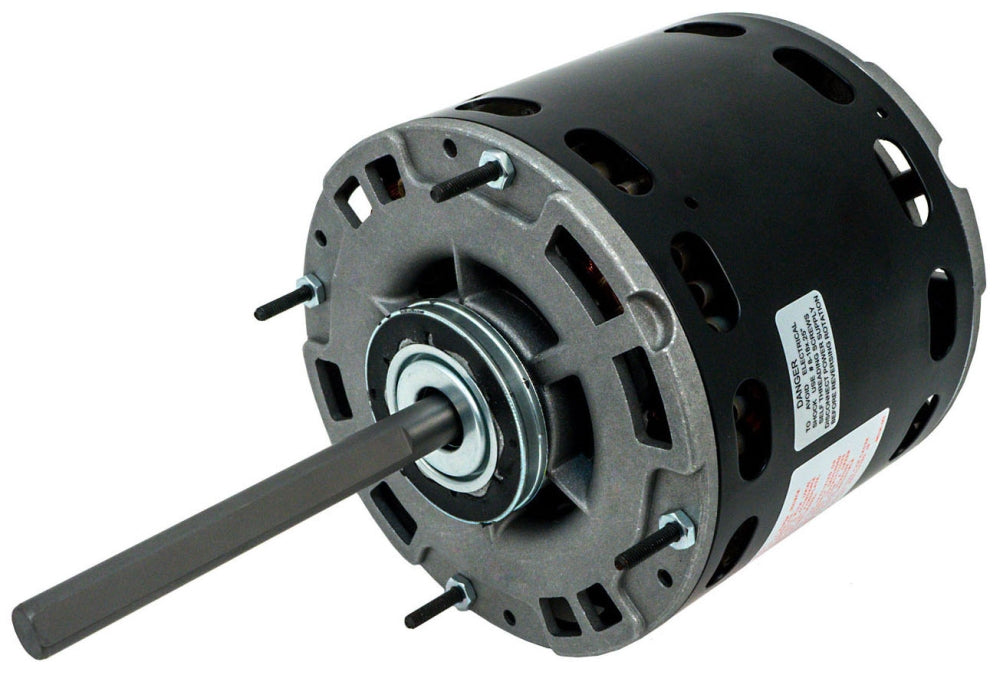

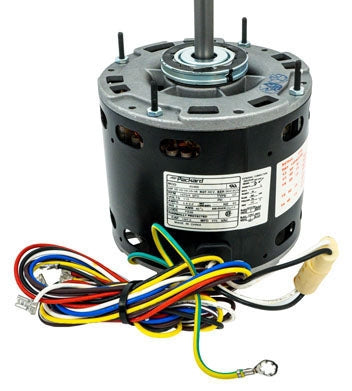

Packard 45461 Blower Motor 208-230V 1/6-1/2HP 1075 RPM

Product Description

This Packard 45461 blower motor is a versatile and high-performance solution for HVAC professionals, offering multiple horsepower settings and operational flexibility. Designed to support a range of HVAC systems, this motor excels in reliability and efficiency.

• Multi-speed capacity offers adjustable functionality to meet diverse air-moving requirements.
• Designed with class B insulation ensures durability and long-term operation under varying thermal conditions.
• Includes reversible rotation and automatic overload protection for enhanced operation and safety.

Product Highlights

The Packard 45461 is a permanent split capacitor type motor, ensuring low-energy consumption and high efficiency. Its direct drive mechanism matches most standard HVAC setups without the need for modification.

Product Information

Technical Specifications

• Power Rating: 1/6 to 1/2 HP
• Operating Voltage: 208 to 230 Volt AC, Single Phase
• Speed: 1075 RPM, Multi-Speed Capability
• Mounting: Mounting Ring Thru Bolt and Holes in Shell
• NEMA Frame Size: 48
• Frequency: 60 Hertz
• Frame Material: Metal, offering robustness
• Motor FLA: 2.9 Amp at full load
• Ambient Temperature: Rated up to 40 Degrees Celsius
• Insulation: Class B
