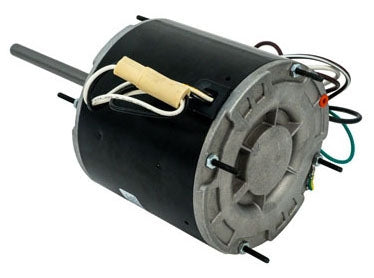

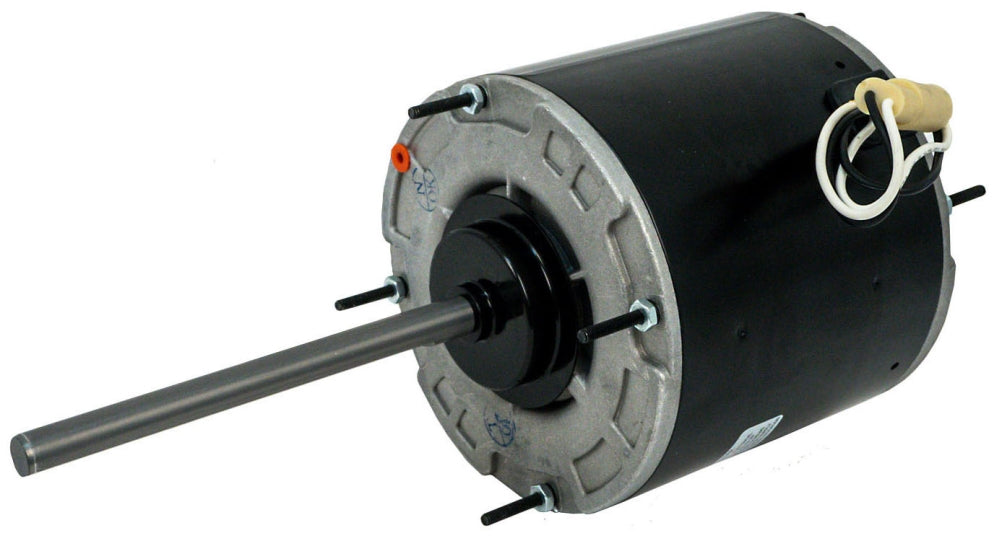

Packard 45458BF 1/6 to 1/3 HP Multi-Horse Power Condenser Fan Motor 208-230V

Product Description

The Packard 45458BF is a multi-horsepower condenser fan motor designed for efficiency and durability. This motor operates at one-sixth to one-third horsepower and is suitable for one-phase applications with a voltage rating of two hundred eight to two hundred thirty volts at sixty hertz. The motor speed is rated at one thousand seventy-five RPM.

• Permanent split capacitor for reliable performance
• Automatic overload protection
• Electrically reversible for versatility

Product Highlights

This motor is ideal for use in condenser fan and heat pump units. It features a totally enclosed design ensuring effective protection from the elements, and its NEMA 48 frame size facilitates easy mounting and installation.

Product Information

Standard Information

• Brand: Packard
• MPN: 45458BF

Technical Specifications

• Power Rating: 1/6 HP to 1/3 HP
• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 to 2 Amp
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48
• Mounting Type: Belly Band or Extended Clamp Screw
• Reversible: Yes
• Ambient Temperature Rating: 70 Deg C
• Enclosure Type: Totally Enclosed
• Weight: 11.275 lbs
