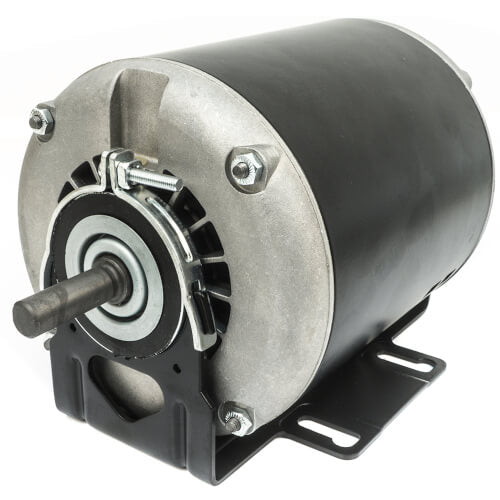

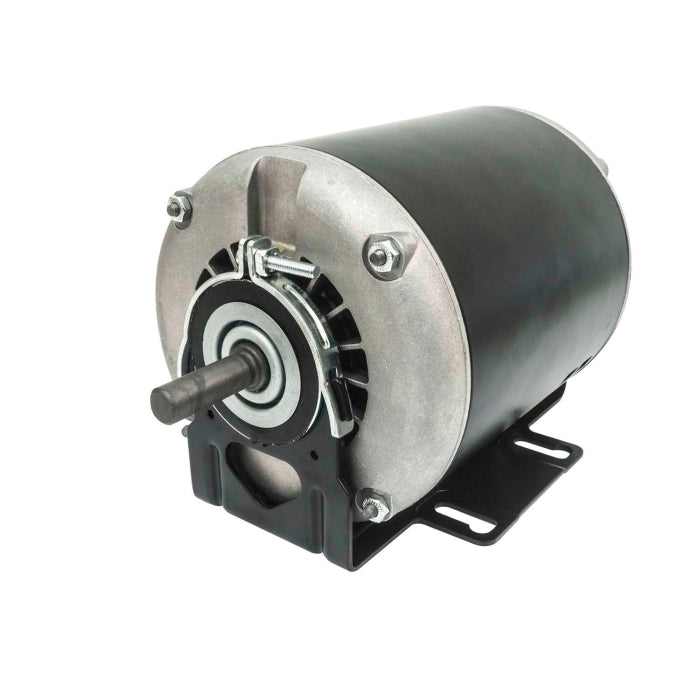

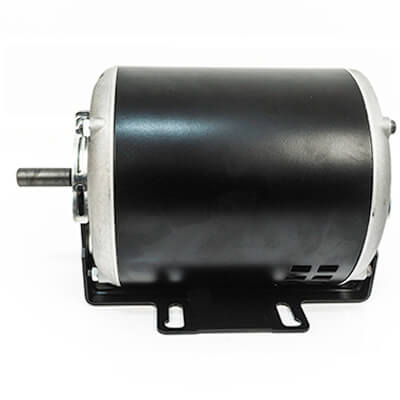

Packard 45230D Fan and Blower Motor 3/4 HP 115/208-230V

Product Description

The Packard 45230D is a fan and blower motor designed for HVAC applications. It operates on 115/208-230 volts with a power rating of three-quarters horsepower. The motor runs at one thousand seven hundred twenty-five revolutions per minute and is reversible to suit specific airflow needs.

• Continuous duty motor
• Includes shaft adapter and key
• Resilient base for easy mounting

Product Highlights

This motor is ideal for use in centrifugal pumps, belt drive furnace blowers, and various fan types. It features a full service factor, making it suitable for demanding conditions.

Product Information

Standard Information

• Brand: Packard
• Part Number: 45230D

Technical Specifications

• Amperage Rating: 11.6/5.9 - 5.8 A
• Bearing Type: Ball
• Blower Type: Belt Drive
• Dimensions: 10.55 in L x 5-5/8 in Dia
• Frame Size: 48/56
• Frequency Rating: 60 Hz
• HP Rating: 3/4 hp
• Insulation Class: B
• Motor Enclosure: Open Drip-Proof
• Mounting: Resilient Base
• Number of Speeds: 1
• Phase: 1 ph
• RPM: 1725 rpm
• Rotation: Reversible
• Shaft Size: 1-7/8 in L x 5/8 in Dia
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 115/208 - 230 VAC
