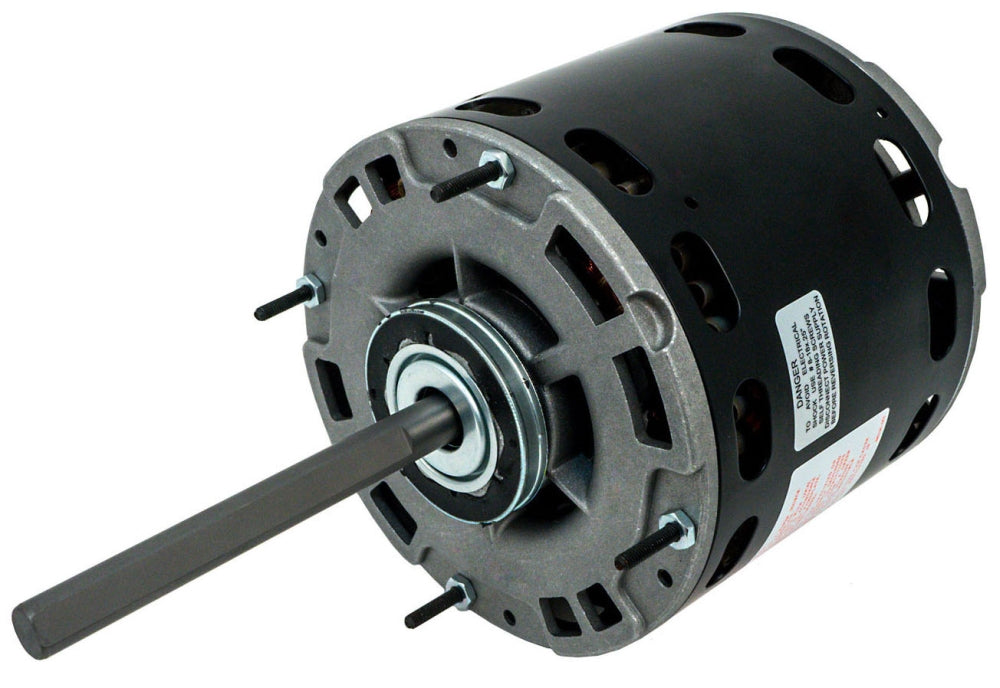

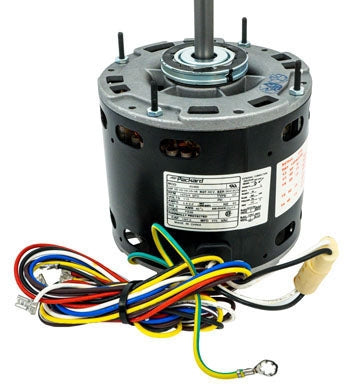

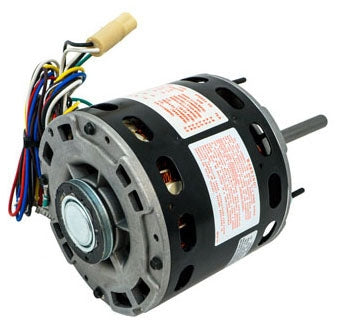

Packard 43590 3/4 HP 208 to 230 VAC 60 Hz 1-Phase Blower Motor

Product Description

Packard 43590 is a blower motor designed for HVAC applications. This motor operates at three-quarter horsepower and can handle voltages from two hundred eight to two hundred thirty AC at sixty hertz. It features a reversible operation with a speed rating of one thousand seventy-five RPM. The motor comes with a two-and-a-half-inch mounting ring and is classified under NEMA frame size forty-eight.

• Three-speed operation
• Class B insulation for reliable performance
• Permanent split capacitor design

Product Highlights

The Packard 43590 is suitable for furnace blowers and central air handling units. It is designed to meet UL and CSA approval standards, ensuring quality and safety in operation.

Product Information

Standard Information

• Brand: Packard
• MPN: 43590

Technical Specifications

• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 Volt AC, 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 4.6 Amp
• Speed Rating: 1075 RPM
• Number of Speeds: 3
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: 2-1/2 Inch Ring
• Ambient Temperature Rating: 40 Deg C
