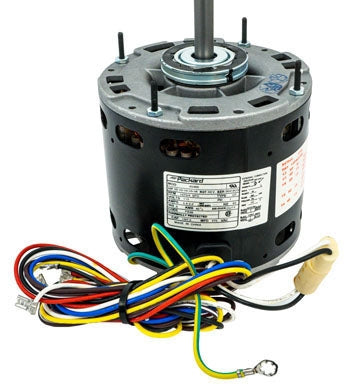

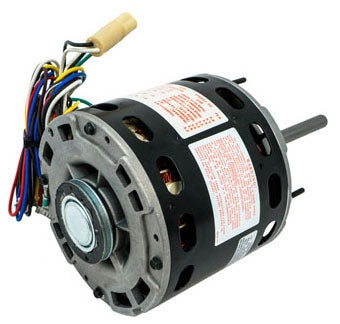

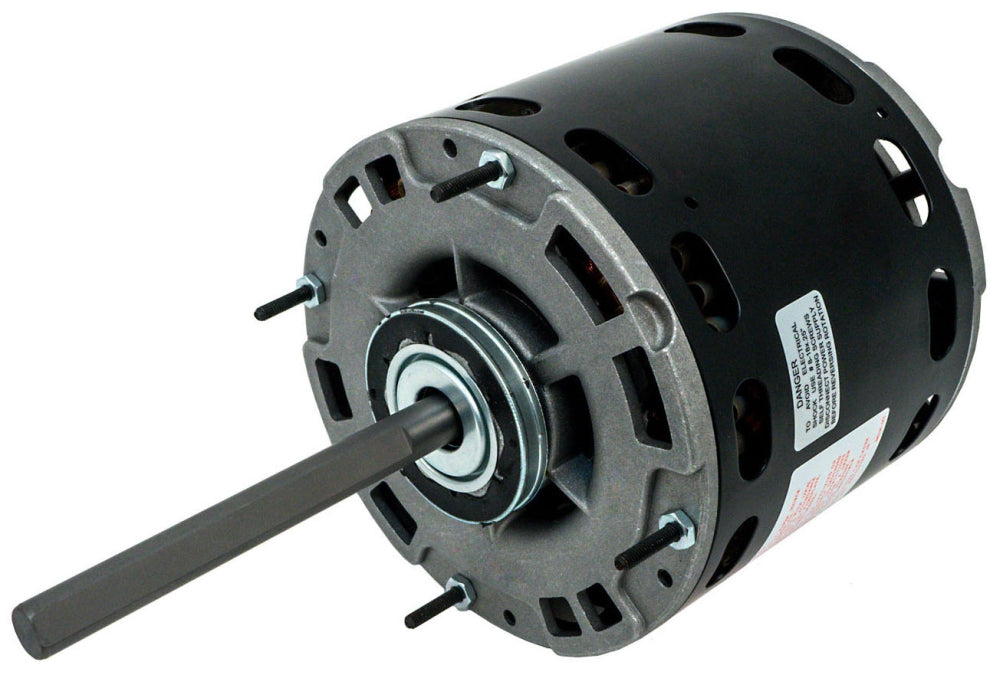

Packard 43588 Direct Drive Blower Motor 208-230 VAC 60 Hz 1-Phase 1075 RPM

Product Description

The Packard 43588 Direct Drive Blower Motor is meticulously engineered for HVAC systems requiring reliable air circulation. It operates efficiently with a power rating of 1/2 HP at 208-230 VAC and offers versatility with three speeds at 1075 RPM.

• Equipped with Class B insulation for enhanced protection and longevity.
• Features reversible rotation and automatic overload protection to ensure operational safety.
• Designed with a 5-5/8 inch frame diameter and a 4-1/2 inch long shaft.

Product Highlights

This motor is ideal for applications such as furnace blowers or central air-handling units. It supports an ambient temperature up to 40 degrees Celsius and employs a Permanent Split Capacitor design.

Specifications

• Horsepower: 1/2 HP
• Phase: Single
• Speed: 1075 RPM
• Voltage: 208 to 230 VAC
• Insulation Class: Class B
• Enclosure Type: Open Air-Over
• Frame Size: NEMA 48
• Mounting Style: Ring Mount
• Reversible: Yes
• Service Factor: 1
