Packard 43586 Blower Motor 1/3 HP 208 to 230 VAC 60 Hz 3-Speed

Product Description

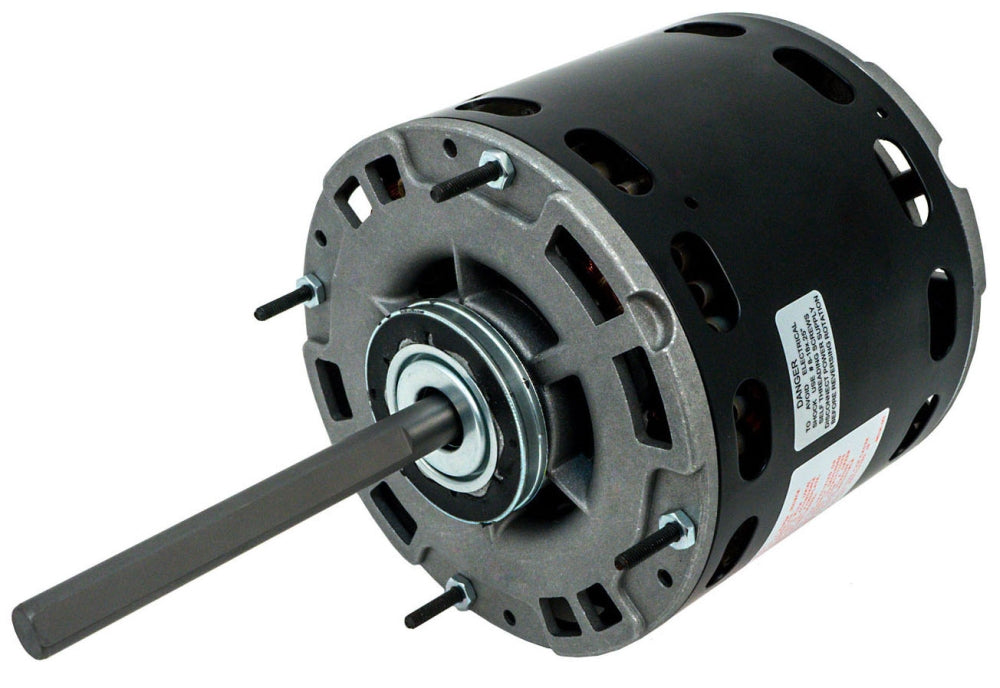

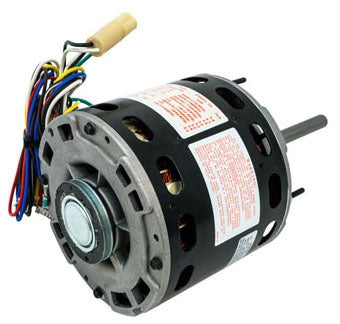

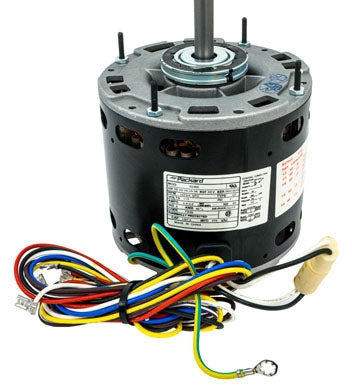

The Packard 43586 is a blower motor with a power rating of one-third horsepower. This motor operates on a voltage range of 208 to 230 VAC and is designed for one-phase applications. It features a three-speed operation with a speed rating of 1075 RPM. This motor is ideal for use in furnaces and central air handling units requiring a single shaft.

• Power Rating: 1/3 HP
• Voltage: 208 to 230 VAC, 60 Hz
• Reversible with Class B Insulation

Product Highlights

This motor is beneficial for HVAC applications due to its durable construction and reliable performance. The design includes an open air-over enclosure, making it suitable for various environments.

Product Information

Standard Information

• Manufacturer: Packard
• UPC: 84089911264

Technical Specifications

• Enclosure Type: Open Air-Over
• Motor FLA: 2.6 Amp
• Number of Speeds: 3
• Service Factor: 1
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: 2-1/2 Inch Mounting Ring
• Application: Furnace Blower or Central Air Handling Units
• Approval: UL, CSA
• Ambient Temperature Rating: 40 Deg C
