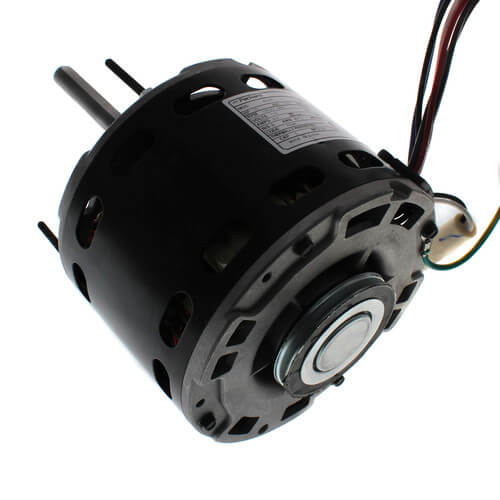

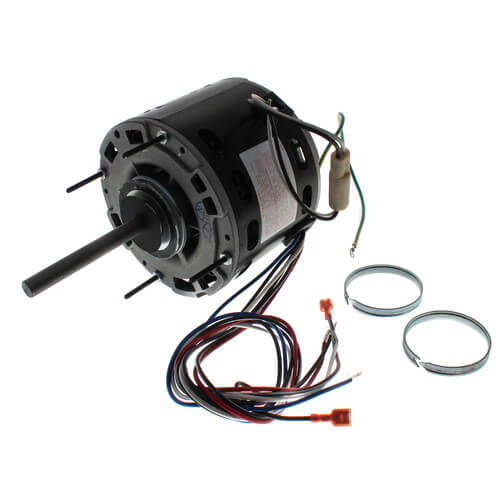

Packard 43585 Blower Motor 1/3 HP 115 VAC 1075 RPM

Product Description

The Packard 43585 Blower Motor is engineered for reliability and performance, ideal for HVAC system applications including furnace blowers and central air handling units. Designed with a permanent split capacitor, this motor is rated at 1/3 HP with an electrical input of 115 VAC at 60 Hz. Its robust design is suitable for continuous air-over environments.

• Operates at 1075 RPM with three speed settings
• Features reversible rotation and automatic overload protection
• Constructed with a 48 frame size and Class B insulation

Product Highlights

This motor is remarkably efficient in handling demanding industrial environments. Its sleeve bearing, and the reversible feature enhances its operational adaptability. The motor maintains a high standard efficiency with extended thru bolts on the shaft end for secure mounting.

Product Information

Standard Information

• Frame Size: NEMA 48
• Mount Type: 2-1/2 Inch Mounting Ring

Technical Specifications

• Voltage Rating: 115 VAC
• Power Rating: 1/3 HP
• Rotational Speed: 1075 RPM
• Number of Speeds: 3
• Bearing Type: Sleeve
• Enclosure Type: Open Air-Over
• Reversibility: Yes
• Amperage: 6 Amp
