Product Description

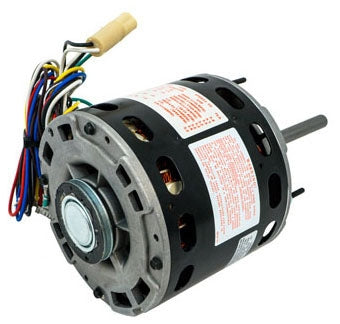

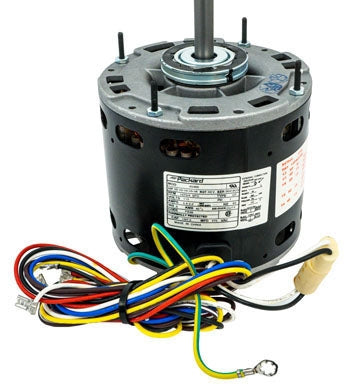

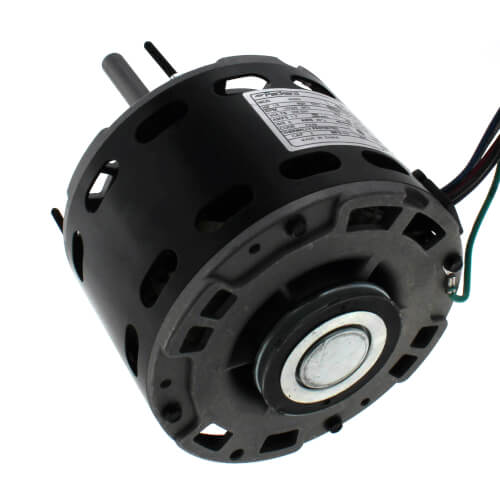

The Packard 43584 Blower Motor is a robust solution for HVAC systems. This motor delivers 1/4 HP power at 1075 RPM and is designed to operate on 208 to 230 VAC single-phase power.
- 1/4 HP power output
- Operates at 208-230 VAC
- Three-speed motor
Product Highlights
This motor features a reversible rotation and comes with automatic overload protection, ensuring reliability in your HVAC setup. It is suitable for furnace blowers and central air handling units.
Product Information
Standard Information
-
Manufacturer: Packard
-
UPC: 40899112626
-
Part Number: 43584
Technical Specifications
-
Power Rating: 1/4 HP
-
Voltage Rating: 208 to 230 Volt AC 1-Phase
-
Frequency Rating: 60 Hertz
-
Motor FLA: 1.7 Amp
-
Number of Speeds: 3
-
Speed Rating: 1075 RPM
-
Reversible: Yes
-
Service Factor: 1
-
NEMA Frame Size: 48
-
Insulation Class: B
-
Mounting: 2-1/2 Inch Mounting Ring
-
Application: Furnace Blower or Central Air Handling Units with Single Shaft Requirements
-
Approval: UL, CSA
-
Type: Permanent Split Capacitor, Direct Drive
-
Bearing Type: Sleeve
-
Size: 5-5/8 Inch Diameter x 8.98 Inch Length
-
Shaft Size: 1/2 Inch Diameter x 4-1/2 Inch Length
-
Ambient Temperature Rating: 40 Deg C
