Product Description

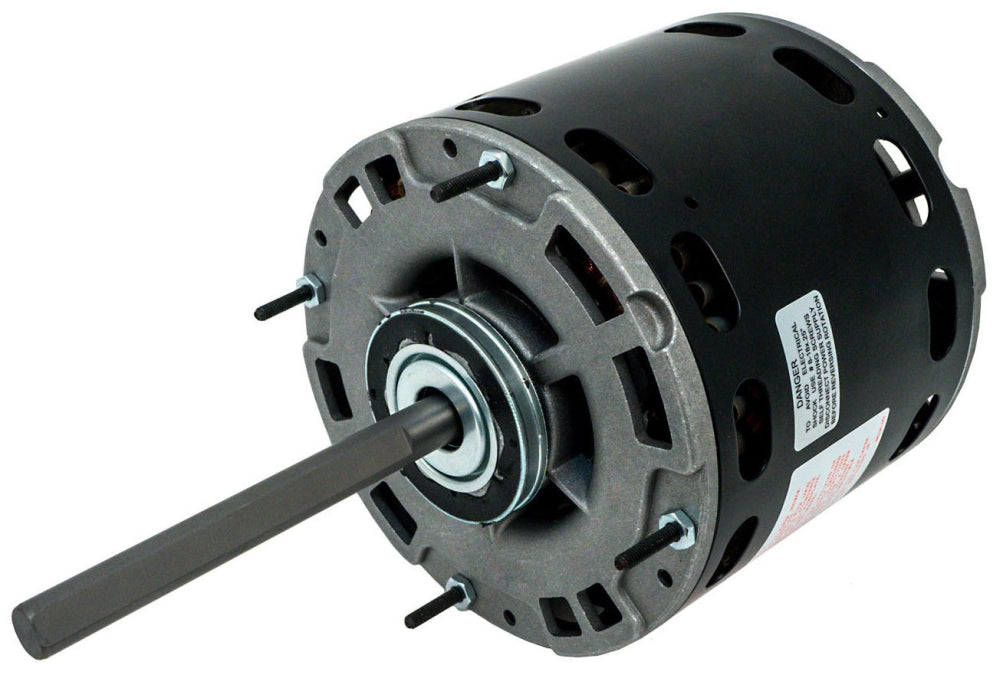

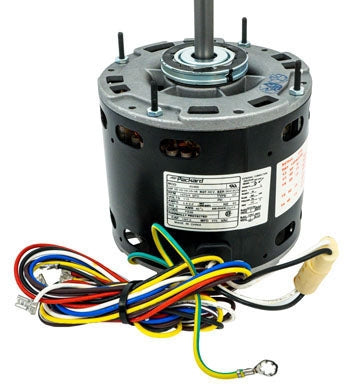

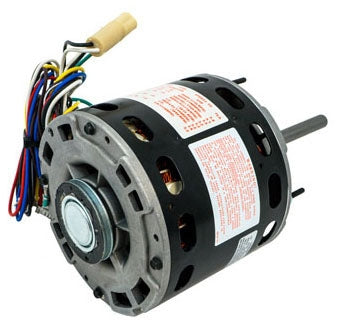

The Packard 43584 is a blower motor designed for HVAC applications. This motor operates on a voltage of two hundred eight to two hundred thirty volts AC and has a power rating of one fourth horsepower. It features an open air-over enclosure and an insulation class B rating. The unit is suitable for use in furnaces and central air handling units with single shaft requirements.
- Power Rating: 1/4 HP
- Speed: 1075 RPM with 3 speeds
- Voltage: 208 to 230 VAC
Product Highlights
This motor includes automatic overload protection and is reversible for flexible installation. Designed for reliability, it features a permanent split capacitor and sleeve bearings for smooth operation.
Product Information
Standard Information
-
Brand: Packard
-
MPN: 43584
Technical Specifications
-
Voltage Rating: 208 to 230 Volt AC, 1-Phase
-
Frequency Rating: 60 Hertz
-
Motor FLA: 1.7 Amp
-
Number of Speeds: 3
-
NEMA Frame Size: 48
-
Diameter: 5-5/8 inches
-
Length: 8.98 inches
-
Shaft Diameter: 1/2 inch
-
Shaft Length: 4-1/2 inches
-
Ambient Temperature Rating: 40 degrees Celsius
