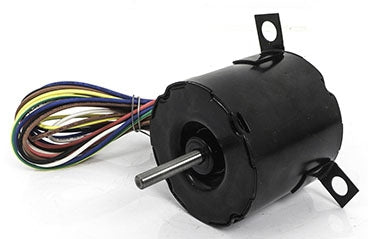

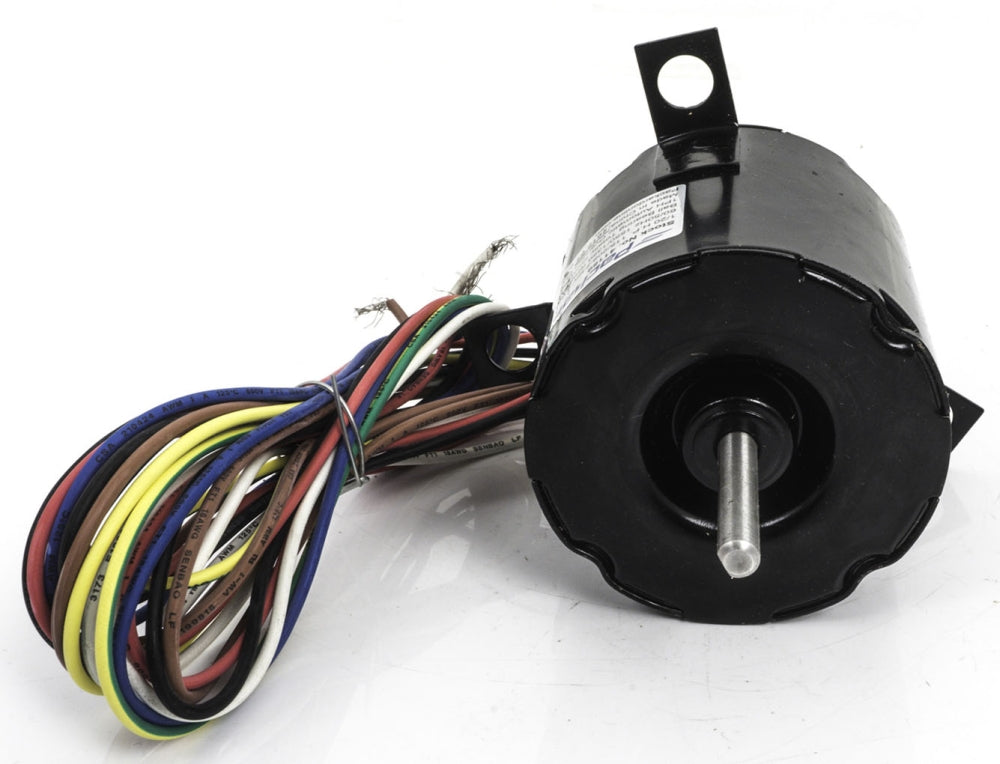

Packard 41189 Motor 1/20 HP 115/208-230V 1350/1550 RPM

Product Description

The Packard 41189 is a refrigeration motor designed for commercial applications. This motor operates at a power rating of 1/20 horsepower and is compatible with voltage ratings of 115 to 208-230 volts AC, suitable for 1-phase systems. It features a totally enclosed, air-over design that protects the motor from dust and other contaminants.

• Power rating of 1/20 HP
• Designed for 50/60 Hz frequency
• Speed ratings of 1350/1550 RPM

Product Highlights

This motor is ideal for commercial refrigeration needs, providing reliable operation with automatic overload protection. Its shaded pole type helps ensure efficient performance, and the rotation direction is determined by viewing the shaft end.

Product Information

Standard Information

• Manufacturer: Packard
• Application: Commercial Refrigeration

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 115/208 to 230 Volt AC
• Motor FLA: 1.6/0.8 Amp
• Speed Rating: 1350/1550 RPM
• Enclosure Type: Totally Enclosed, Air-Over
• Mounting: Lug
• Number of Speeds: 1
• Size: 3.3 inches Diameter
