Packard 40696 Motor Blower Wheel 120V 1400RPM Replaces S0696B000

Product Description

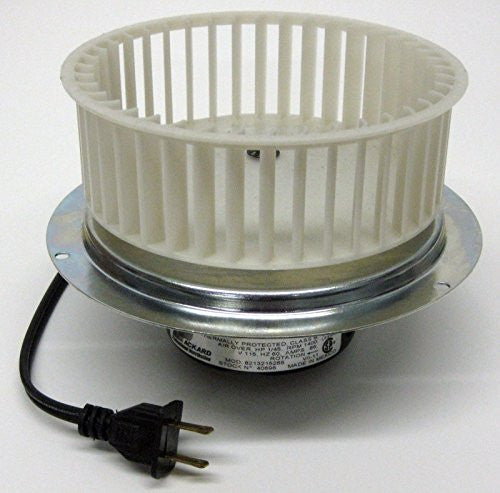

The PACKARD 40696 is a motor and blower wheel assembly engineered as a direct OEM-style replacement for Nutone bathroom exhaust fan systems. Running on 120 volts at 1400 RPM and drawing 0.86 amps, this single-speed unit delivers reliable airflow performance in residential ventilation applications. The assembly ships with the blower wheel included, eliminating the need to source components separately. The motor features a 3.3-inch diameter frame with clockwise rotation when viewed from the shaft end, and connects via a standard 2-prong plug with ground wire. A metal mounting shroud with three mounting holes spaced 5.75 inches apart center to center is also included.

This assembly is designed for residential bathroom exhaust fan replacement work. It fits directly into fan housings that accept a 3.3-inch motor with the matching shroud bolt pattern. The blower wheel measures 6.25 inches in diameter by 2 inches in height. HVAC technicians and licensed contractors performing bathroom ventilation service or fan motor swap-outs will find this a straightforward drop-in replacement. It directly replaces Nutone assembly number 0696B000, which includes motor number 86322000.

Key Features

• Complete assembly — motor and blower wheel included, no separate sourcing required
• Single-speed operation at 1400 RPM on 120 volts
• Clockwise rotation viewed from shaft end
• 2-prong plug with ground wire for standard residential wiring connections
• Metal mounting shroud with three holes spaced 5.75 inches apart center to center
• Direct replacement for Nutone assembly 0696B000 and motor 86322000

Compatibility

Direct replacement for Nutone assembly number 0696B000, which includes motor number 86322000. Compatible with Nutone models QT100L, QT110, and QT110B bathroom exhaust fans. Also cross-references Nutone part number S0696B000.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed contractor. Disconnect power at the circuit breaker and verify voltage is absent before removing the existing motor assembly. Confirm the mounting hole spacing and blower wheel dimensions match the existing housing before installation. Work should comply with applicable local electrical codes and NEC guidelines.

Technical Specifications

• Voltage: 120 volts
• Speed: 1400 RPM
• Amperage: 0.86 amps
• Motor Diameter: 3.3 inches
• Blower Wheel Diameter: 6.25 inches
• Blower Wheel Height: 2 inches
• Mounting Hole Spacing: 5.75 inches center to center, 3 holes
• Rotation: Clockwise viewed from shaft end
• Speed Stages: Single speed
• Connection Type: 2-prong plug with ground wire
• Shroud Material: Metal

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: 40696
