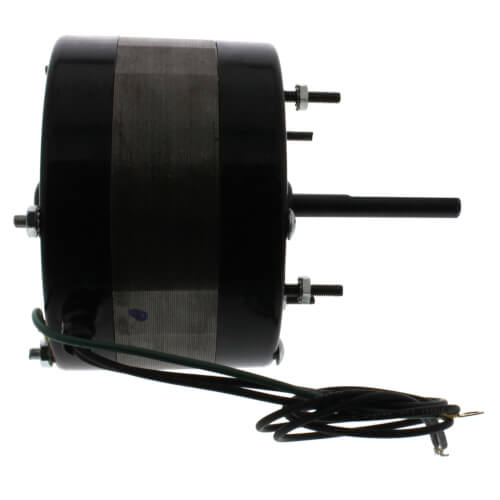

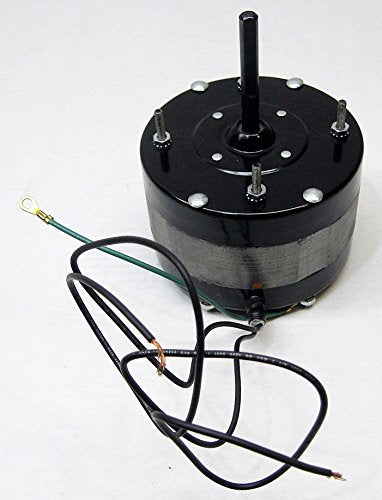

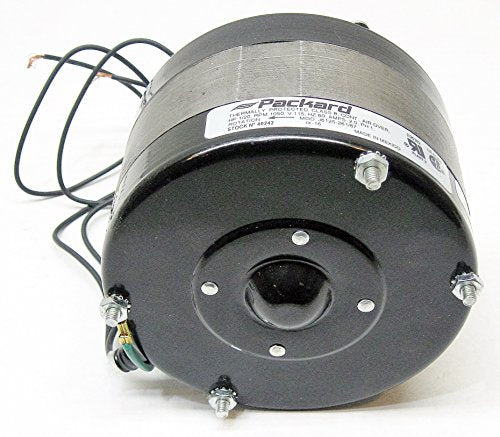

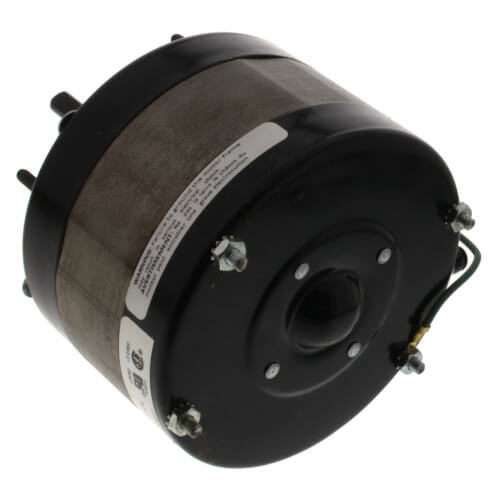

Packard 40242 Motor 1/20 HP 115 VAC TEAO

Product Description

Presenting the Packard Motor 40242, a dedicated HVAC component designed for multiple applications, particularly in refrigeration. It operates under a power rating of 1/20 horsepower and a voltage rating of 115 volts AC. This unit features a frequency rating of 60 hertz, ensuring compatibility with standard systems.

• Efficient 1050 RPM single-speed operation
• Built with Class A insulation and NEMA 42 frame
• Totally enclosed, air-over (TEAO) motor design for enhanced protection

Product Highlights

Optimal for stud mount setups, the Packard Motor 40242 boasts a shaded pole type and sleeve bearings for reliable support. It operates with a clockwise shaft end rotation, making it adaptable for specific installation requirements.

Product Information

Standard Information

• Mounting Type: Stud
• Rotation: CW Shaft End

Technical Specifications

• Power Rating: 1/20 HP
• Voltage: 115 VAC
• Speed: 1050 RPM
• Motor FLA: 2 Amp
• Enclosure Type: TEAO
• Frame Size: NEMA 42
• %20Overall Dimensions: 5 inches Diameter x 3-1/8 inches Length (Less Shaft)
• Shaft Size: 3/8 inch Diameter x 3 inches Length
