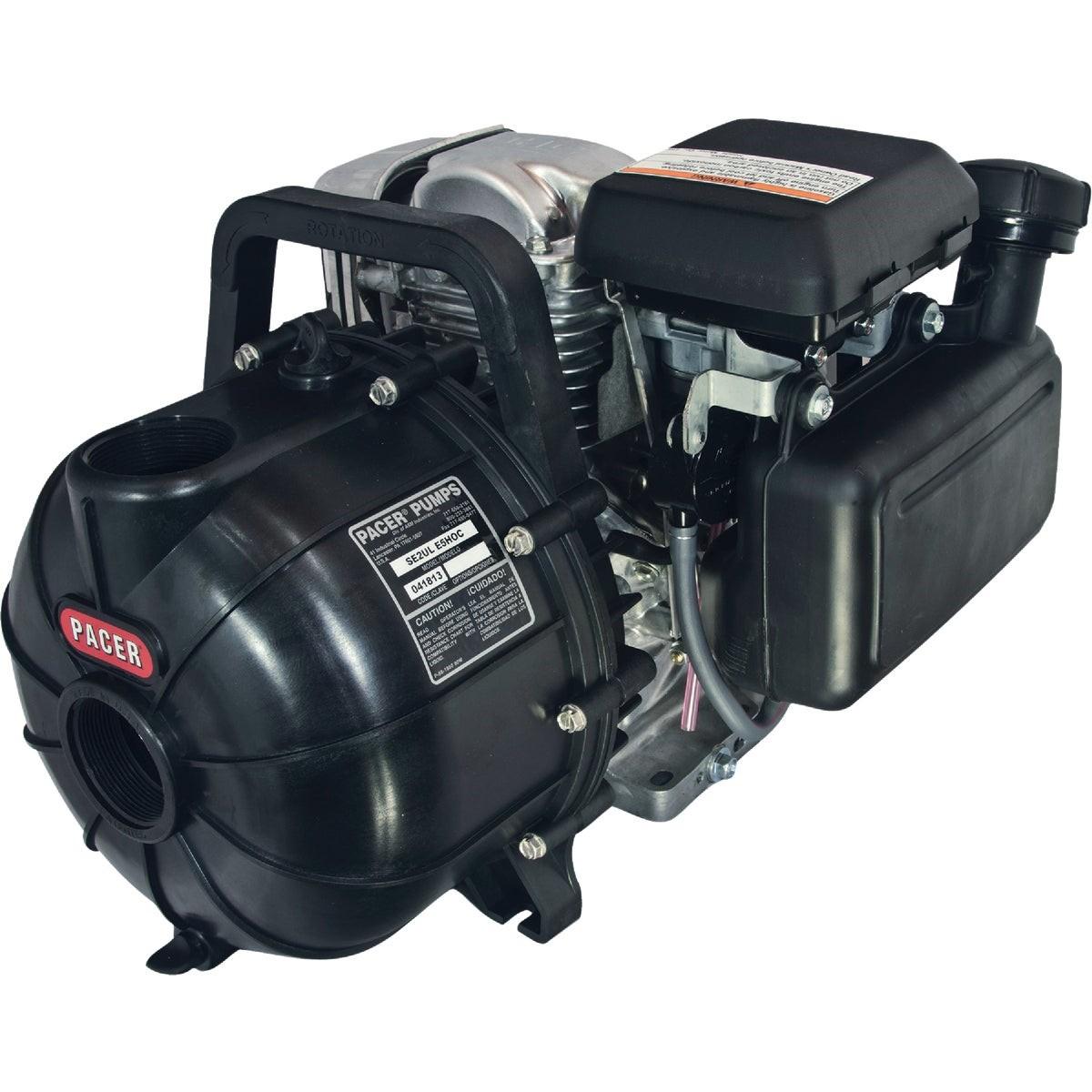

Pacer Pumps SE2UL CX208 Gas Transfer Pump 6.4 Hp 200 Gpm

Product Description

The PACER PUMPS SE2UL CX208 is a 2-inch self-priming gas engine transfer pump built for high-volume fluid movement in demanding field conditions. Powered by an LCT CX PRO engine rated at 6.45 HP, this pump delivers up to 200 GPM of flow through 2-inch NPT ports. The cast iron sleeve bore provides long-term wear resistance, while Viton oil seals and EPDM elastomers stand up to a wide range of fluids and temperatures. Heavy-duty bearings support sustained operation under load. A low oil shutdown system protects the engine automatically. Licensed plumbers, irrigation contractors, and pump service professionals typically install and service this unit.

This pump is designed for commercial and industrial transfer applications where high flow rate and reliable self-priming are required. With a 25-foot suction lift rating and a maximum operating temperature of 143 degrees F, it handles dirty environments and challenging suction conditions. The integrated dust and debris management design makes it well-suited for construction sites, agricultural operations, dewatering jobs, and similar outdoor applications where ambient conditions are tough.

Key Features

• 6.45 HP LCT CX PRO gas engine with butterfly carburetor valve for reliable starting and throttle control
• 200 GPM maximum flow rate through 2-inch NPT inlet and outlet ports
• 25-foot suction lift capability for deep or remote water sources
• Cast iron sleeve bore for extended service life in abrasive or high-cycle use
• Viton oil seals and EPDM elastomers for broad fluid compatibility and temperature resistance
• Low oil shutdown protection with 0.5 US quart oil capacity and 3.6-liter fuel tank

Compatibility

Designed as an OEM-style self-priming transfer pump for commercial and contractor applications requiring a 2-inch NPT gas-engine pump with high-flow output.

Installation Notes

Installation and servicing of this pump should be performed by a licensed contractor or qualified pump technician familiar with gas engine equipment and fluid transfer systems. Before servicing, shut off the fuel supply and allow the engine to cool completely. Ensure all suction and discharge connections are properly sealed to maintain prime and prevent air leaks. Follow local codes and engine manufacturer guidelines for fueling, ventilation, and safe operation in enclosed or confined spaces.

Technical Specifications

• Engine: LCT CX PRO Gas Engine
• Horsepower: 6.45 HP
• Maximum Flow Rate: 200 GPM
• Port Size: 2 inches NPT
• Suction Lift: 25 feet
• Maximum Operating Temperature: 143 degrees F
• Torque: 9.5 ft-lbs at 3703 RPM
• Fuel Tank Capacity: 3.6 liters
• Runtime: 1.7 hours
• Oil Capacity: 0.5 US quart
• Bore Material: Cast Iron Sleeve
• Seals: Viton Oil Seals
• Elastomers: EPDM
• Weight: 48.39 pounds

Standard Information

• Brand: PACER PUMPS
• Manufacturer Part Number: SE2UL CX208
