Oz Gedney SR-756 3/4 .5-.6 Cord Conn

Product Description

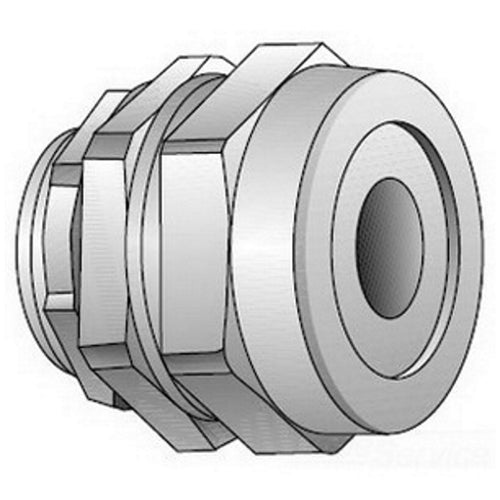

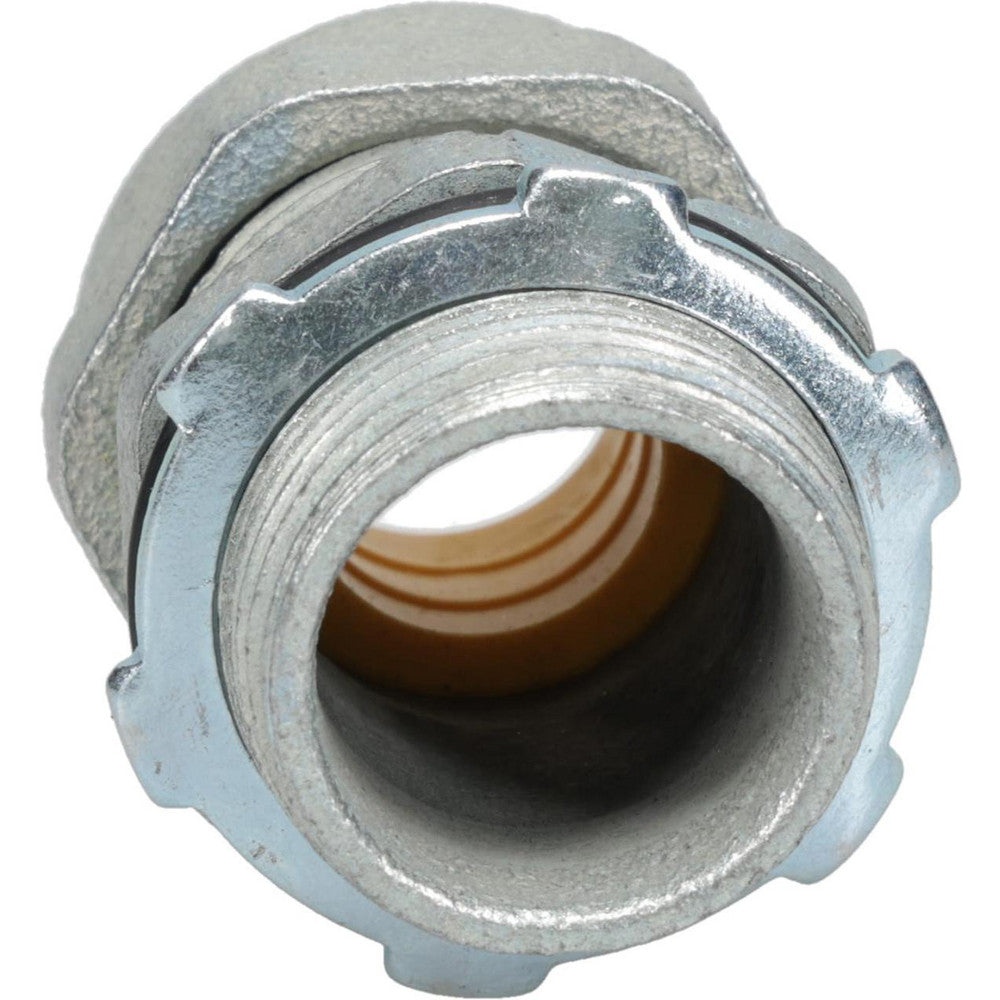

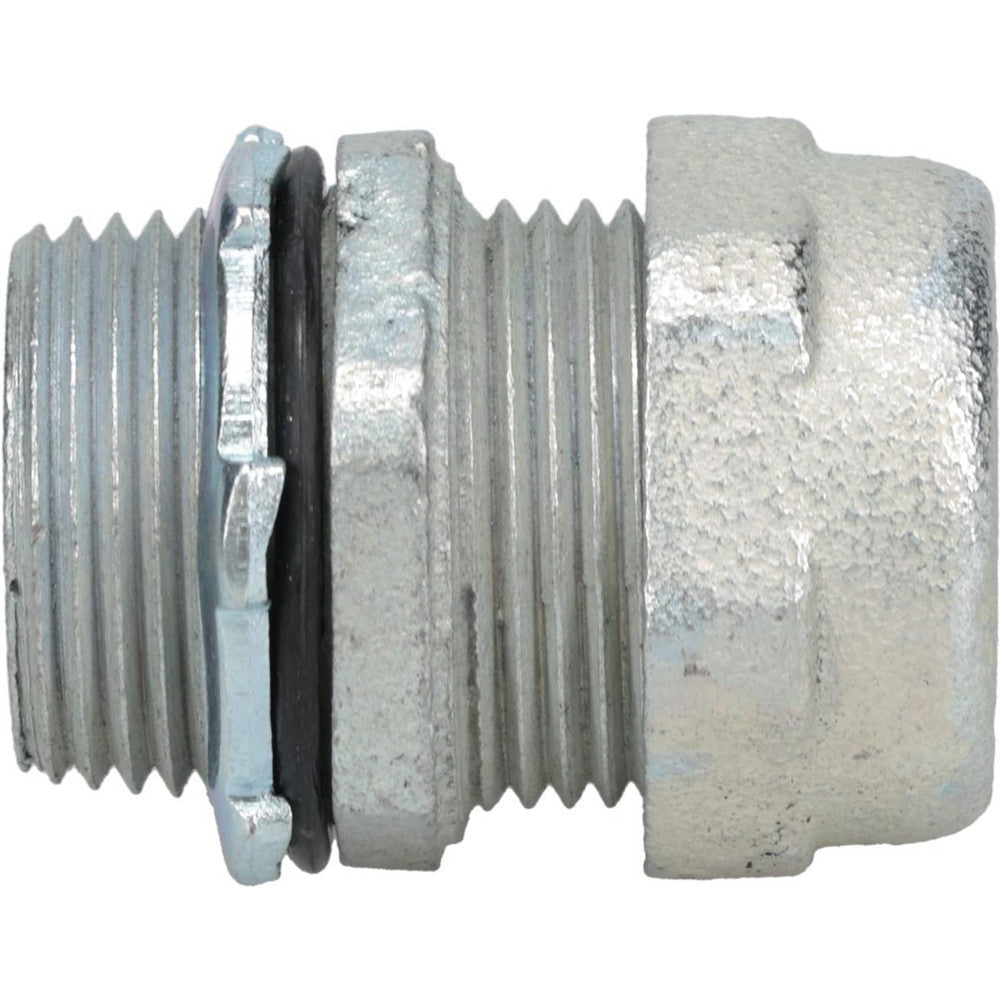

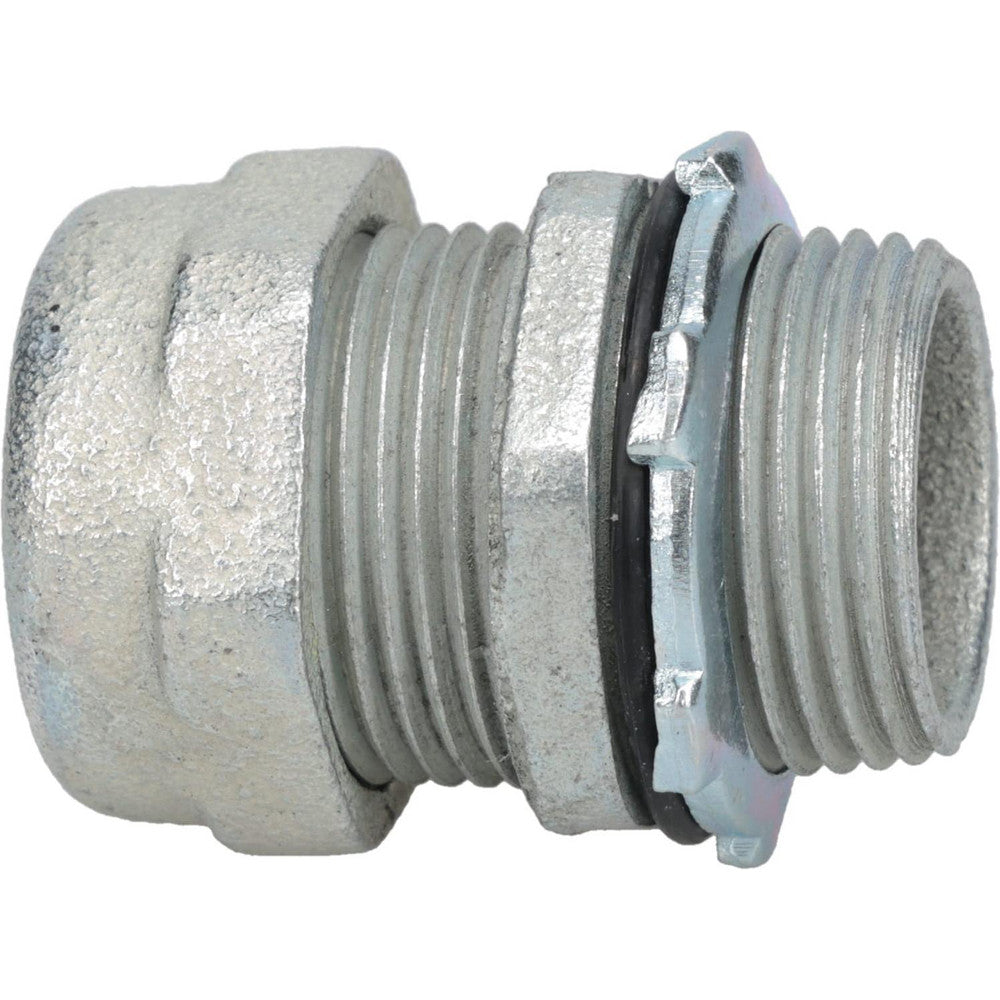

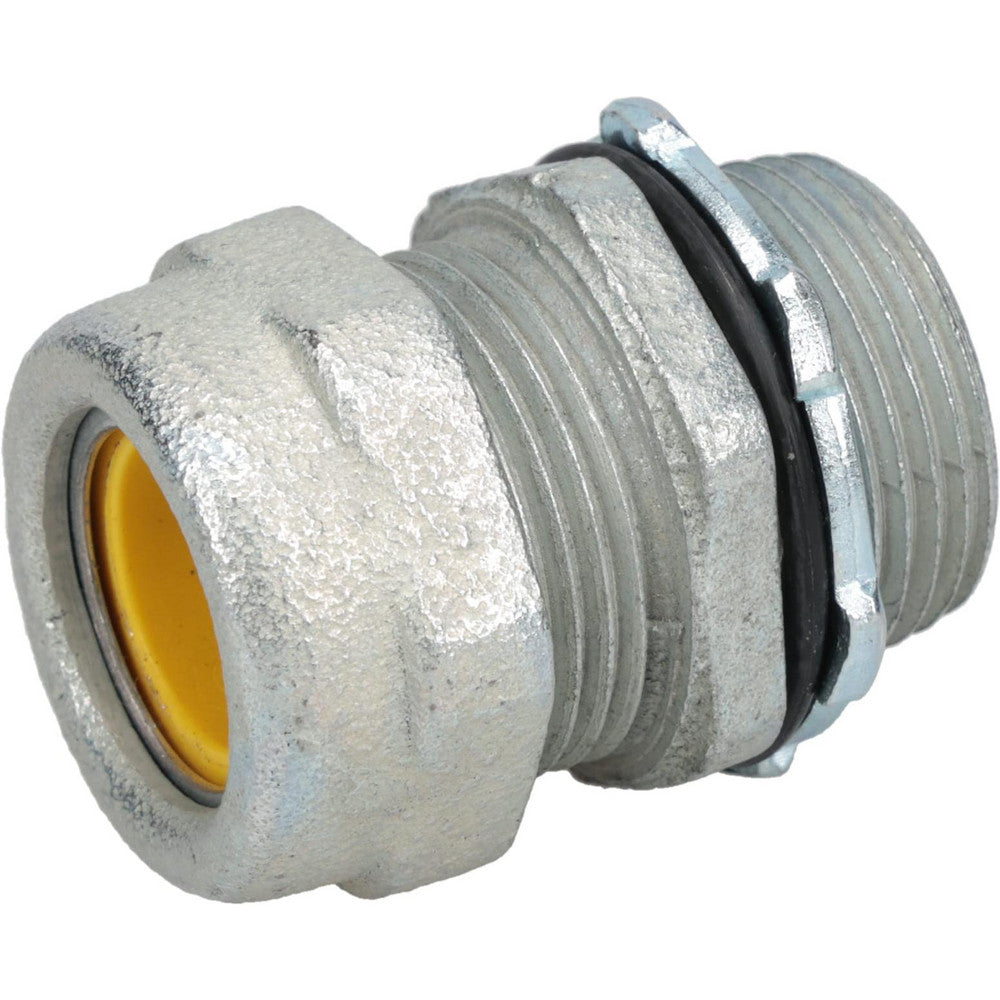

The OZ GEDNEY SR-756 cord connector is a straight male type with a 3/4 inch thread size. Constructed with a zinc-plated malleable iron body and PVC grommet, it accommodates cord sizes from 0.5 to 0.6 inches. This connector is suitable for oiltight, watertight, strain relief, and hazardous location applications.

• Straight Male Type
• 3/4 Inch Thread Size
• Zinc Plated Malleable Iron Body, PVC Grommet Material
• Oiltight, Watertight, Strain Relief, Hazardous Location Application

Product Highlights

This cord connector offers a reliable and durable solution for securing cords or cables entering enclosures or raceways.

Product Information

Standard Information

• Brand: OZ GEDNEY
• Manufacturer Part Number: SR-756
• Country of Origin: Mexico

Technical Specifications

• Type: Straight Male
• Thread Size: 3/4 Inch
• Material: Zinc Plated Malleable Iron Body, PVC Grommet
• Cord Size: 0.5 to 0.6 Inch
• Size: 1-3/8 Inch Dia x 1-3/16 Inch L
• Approval: UL, CSA
• Application: Oiltight, Watertight, Strain Relief, Hazardous Location
• Throat Inner Diameter: 0.76 Inch
• Temperature Rating: 90 Deg C
• Cable Openings: 0.5 - 0.6 in
• Connection Type: MNPT
• Finish: Zinc Plated
• Series: Gold Seal
• Trade Size: 3/4 in
• Standard & Approvals: UL E11857, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification A-505-52, RoHs Compliant
• Dimensions: 1.38 in Dia x 1.19 in L
• Product Shape: Straight
• Conduit Type: Liquid-Tight
• Maximum Cable Capacity: 0.6000
• Minimum Cable Capacity (Decimal Inch): 0.5000
• Overall Length (Inch): 1-3/16
• Thread Type: NPT
• UNSPSC Code: 26121630
• Part #: SR-756
• Category: Conduit/Fitting
• TC Connection: MNPT
