Oz Gedney SR-755 3/4 .4-.5 Cord Connector

Product Description

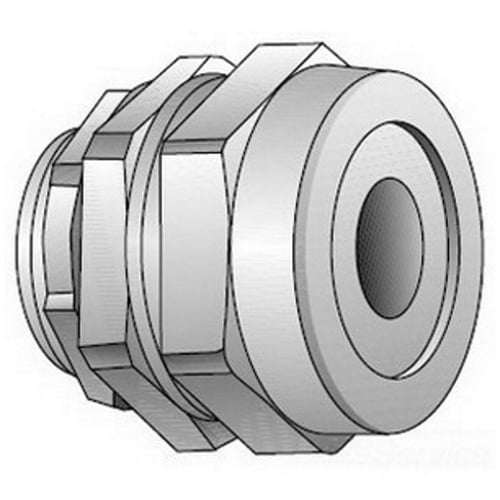

The OZ GEDNEY SR-755 cord connector is a straight male connector with a 3/4 inch thread size. Constructed with a zinc plated malleable iron body and PVC grommet, it accommodates cord sizes from 0.4 to 0.5 inches. It is suitable for oiltight, watertight, strain relief, and hazardous location applications.

• Straight Male Cord Connector
• 3/4 Inch Thread Size
• UL, CSA Approval

Product Highlights

This cord connector is designed for securing and sealing cords or cables entering enclosures or raceways, providing strain relief and protection in demanding environments.

Product Information

Standard Information

• Brand: OZ GEDNEY
• Manufacturer Part Number: SR-755
• Country of Origin: Mexico

Technical Specifications

• Type: Straight Male
• Thread Size: 3/4 Inch
• Material: Zinc Plated Malleable Iron Body, PVC Grommet
• Cord Size: 0.4 to 0.5 Inch
• Approval: UL, CSA
• Application: Oiltight, Watertight, Strain Relief, Hazardous Location
• Throat Inner Diameter: 0.76 Inch
• Temperature Rating: 90 Deg C
• Series: Gold Seal
• Standard & Approvals: UL E11857, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification A-505-52, RoHs Compliant
• Cable Openings: 0.4 - 0.5 in
• Connection Type: MNPT
• Finish: Zinc Plated
• Brand: O-Z/Gedney
• OD Max: 0.5 in.
• OD Min: 0.4 in.
• Connection Rating: Liquid-tight
