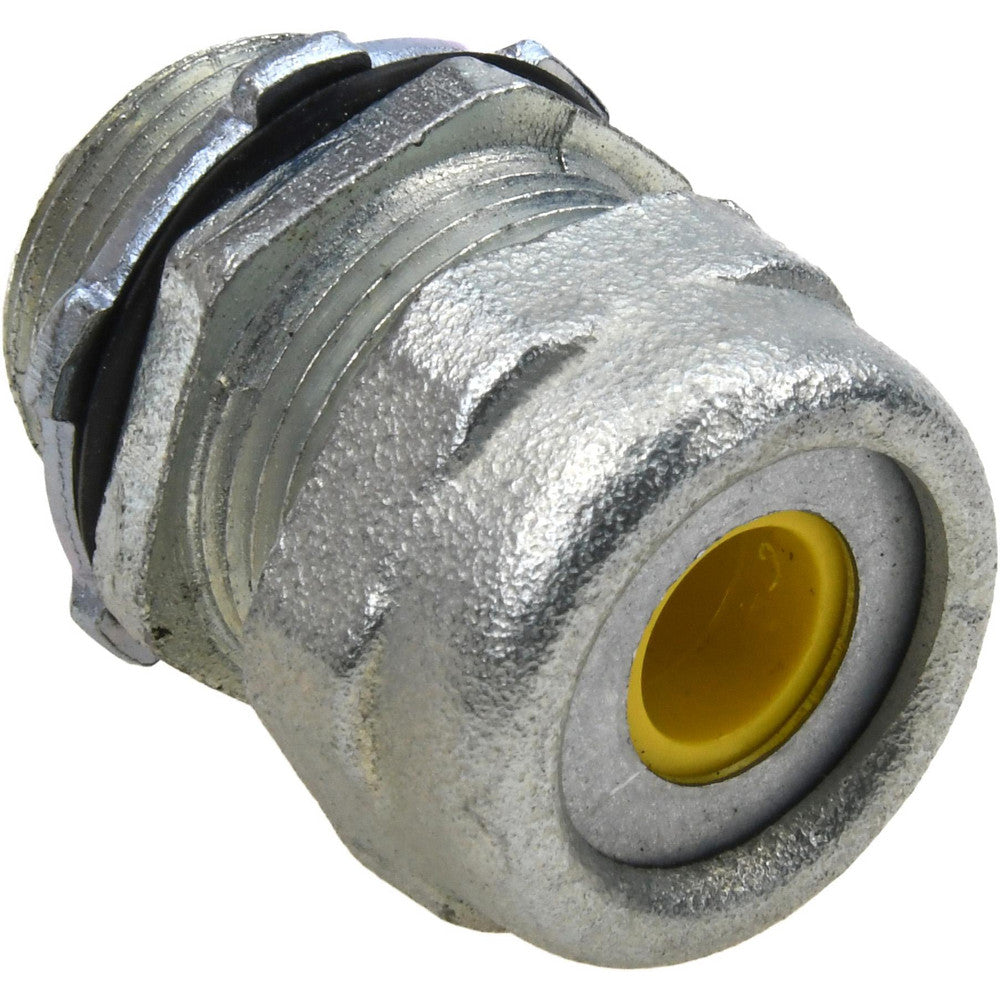

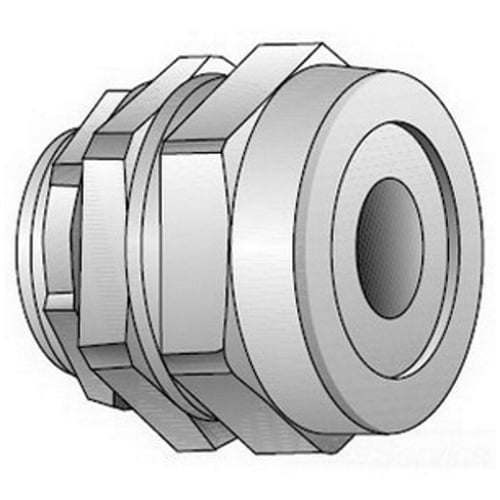

Oz Gedney SR-754 Cord Connector 3/4 Inch .3-.4

Product Description

The OZ GEDNEY SR-754 is a straight male cord connector with a 3/4 inch thread size. Constructed with a zinc plated malleable iron body and PVC grommet, it accommodates cord sizes from 0.3 to 0.4 inches. This connector is suitable for oiltight, watertight, strain relief, and hazardous location applications.

• Straight Male Cord Connector
• 3/4 Inch Thread Size
• Zinc Plated Malleable Iron Body, PVC Grommet

Product Highlights

UL and CSA approved for oiltight, watertight, strain relief, and hazardous locations.

Product Information

Standard Information

• Brand: OZ GEDNEY
• Manufacturer Part Number: SR-754
• Country of Origin: Mexico

Technical Specifications

• Type: Straight Male
• Thread Size: 3/4 Inch
• Material: Zinc Plated Malleable Iron Body, PVC Grommet
• Cord Size: 0.3 to 0.4 Inch
• Approval: UL, CSA
• Application: Oiltight, Watertight, Strain Relief, Hazardous Location
• Throat Inner Diameter: 0.76 Inch
• Temperature Rating: 90 Deg C
• Connection Type: MNPT
• Finish: Zinc Plated
• Series: Gold Seal
• Standard & Approvals: UL E11857, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification A-505-52, RoHs Compliant
• Product Shape: Straight
• Conduit Type: Liquid-Tight
• Maximum Cable Capacity: 0.4000
• Minimum Cable Capacity (Decimal Inch): 0.3000
• Thread Type: NPT
• UNSPSC Code: 26121630
