Oz Gedney SR-506 Cord Connector 1/2 Inch .5-.6

Product Description

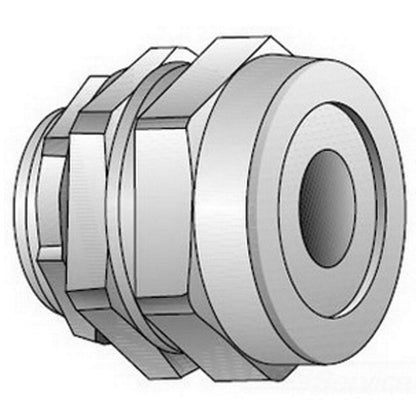

The OZ GEDNEY SR-506 cord connector is a straight male type with a 1/2 inch thread size. Constructed with a zinc plated malleable iron body and PVC grommet, it accommodates cord sizes from 0.5 to 0.6 inches. This connector is suitable for oiltight, watertight, strain relief, and hazardous location applications.

• Straight Male
• 1/2 Inch Thread Size
• Zinc Plated Malleable Iron Body
• Oiltight, Watertight

Product Highlights

This cord connector provides a secure and sealed connection for cords or cables entering enclosures or raceways.

Product Information

Standard Information

• Brand: OZ GEDNEY
• Manufacturer Part Number: SR-506

Technical Specifications

• Type: Straight Male
• Thread Size: 1/2 Inch
• Material: Zinc Plated Malleable Iron Body, PVC Grommet
• Cord Size: 0.5 to 0.6 Inch
• Size: 1-1/16 Inch Dia x 1-3/16 Inch L
• Approval: UL, CSA
• Application: Oiltight, Watertight, Strain Relief, Hazardous Location
• Throat Inner Diameter: 0.61 Inch
• Temperature Rating: 90 Deg C
• Diameter: 1/2 in
• Diameter Range: 0.500 - 0.600 in
