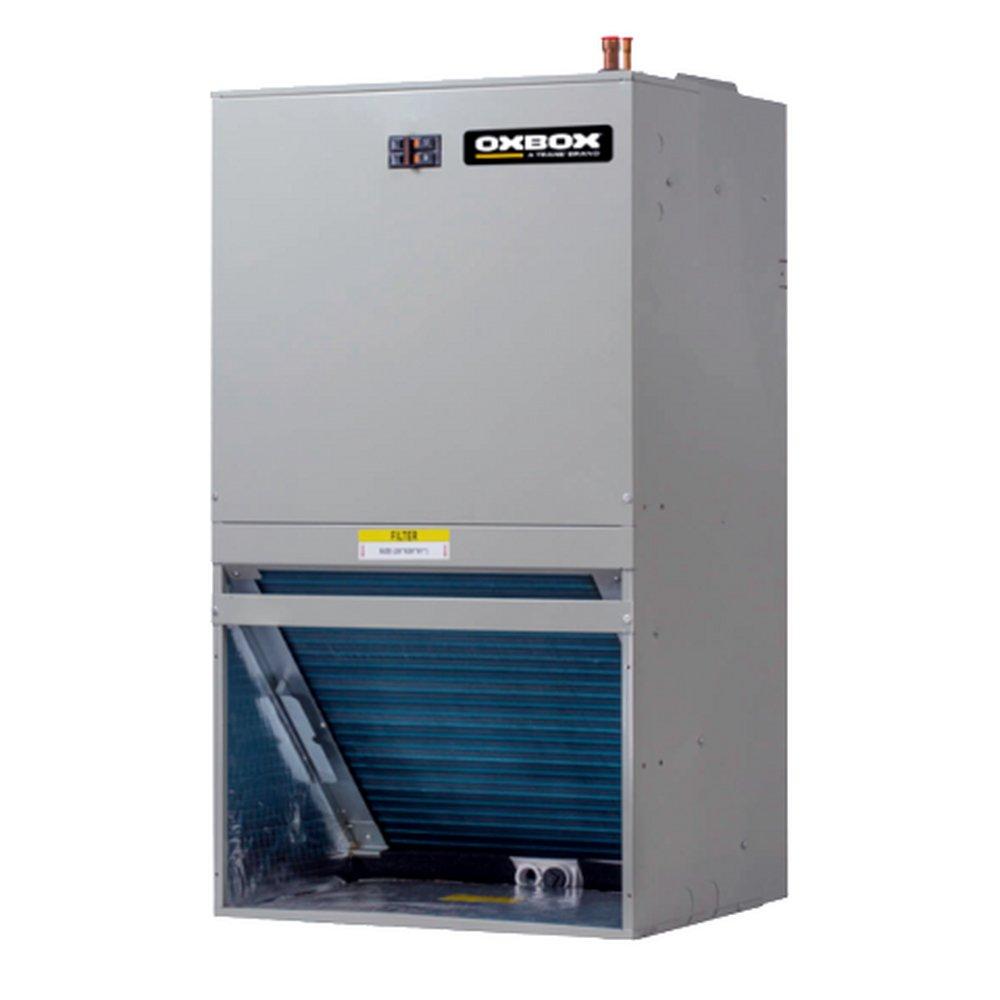

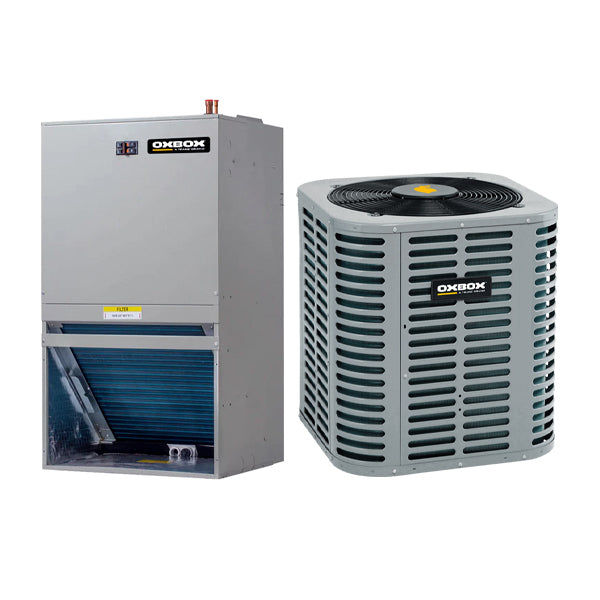

Oxbox JMM5A0A24M21SAA JMM5 Series 2 Ton Upflow Direct Drive Air Handler

Product Description

The OXBOX JMM5A0A24M21SAA is a JMM5 Series 2 Ton Upflow Direct Drive Air Handler designed to support cooling and heating with front and bottom return applications. It features an ECM constant torque motor and factory-installed R-410A thermal expansion valve. The air handler has an all-aluminum coil and a painted metal cabinet with foil face insulation.

• Supports front and bottom return applications for cooling and heating.
• Features an ECM constant torque motor.
• Equipped with a factory-installed R-410A thermal expansion valve.

Product Highlights

This Oxbox air handler offers versatile installation and efficient air circulation for year-round comfort.

Product Information

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: JMM5A0A24M21SAA

Technical Specifications

• A2L Compatible: No
• AMP: 1.9
• BTU: 24000
• Blower Type: Direct Drive
• Coil Type: Plate Fin
• Collection: JMM5 Series
• Communicating: Non-Communicating
• Configuration: Upflow
• Depth: 15
• ETL Listed: Yes
• Energy Star Compliant: No
• Fan Speeds: 5
• Height: 36.5
• Horsepower: 1/3 hp
• Liquid Line (OD): 3/8
• MBH: 24
• Material: Aluminum
• Max CFM: 913
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• SEER: 14.3
• Stages: Two
• Suction Line (OD): 3/4
• Tonnage: 2 Ton
• Volts: 208/230V
• Watts: 10
• Width: 20.5
• CFM: 800
• HANDING: Multi-Position
• VOLTAGE: 208/230-1-60
• MCA (AHU): 2.4
• MOCP (AHU): 15
• ORIENTATION: Vertical Front Return
• COOLING STAGES: 1
• MOTOR TYPE: ECM
• LIQUID LINE SIZE (OD): 0.375
• SUCTION LINE SIZE (OD): 0.75
• Model Number (s): J4HP5024E1000AA - JMM5A0A24M21SAA
• Brand: OxBox
• Type: Heat Pump
• Ton: 2.0 Ton
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Blower: Multi-Speed
• Rated Volts/Ph/Hz: 208-230/1/60
• Indoor Coil — Type: Plate Fin
• Rows — F.P.I.: 5 - 11
• Face Area (sq. ft.): 2.20
• Tube Size (in.): 9/32
• Drain Conn Size (in.): 3/4 NPT
• Indoor Fan — Type: Centrifugal
• Diameter-Width (In.): 10-5/6 X 6-1/7
• No. Used: 1
• Drive - No Speeds: Direct - 5
• CFM vs. in. w.g.: See Fan Performance Table
• No. Motors — H.P.: 1 - 1/3
• Motor Speed R.P.M.: 1050
• F.L. Amps FILTER: 1.9
• Filter Furnished?: No
• Type Recommended: Throwaway
• No.-Size-Thickness: 1 - 16X 20 - 1 in.
• Ref. Line Connections: Brazed
• Coupling or Conn. Size — in. Gas: 3/4
• Coupling or Conn. Size — in. Liq.: 3/8
