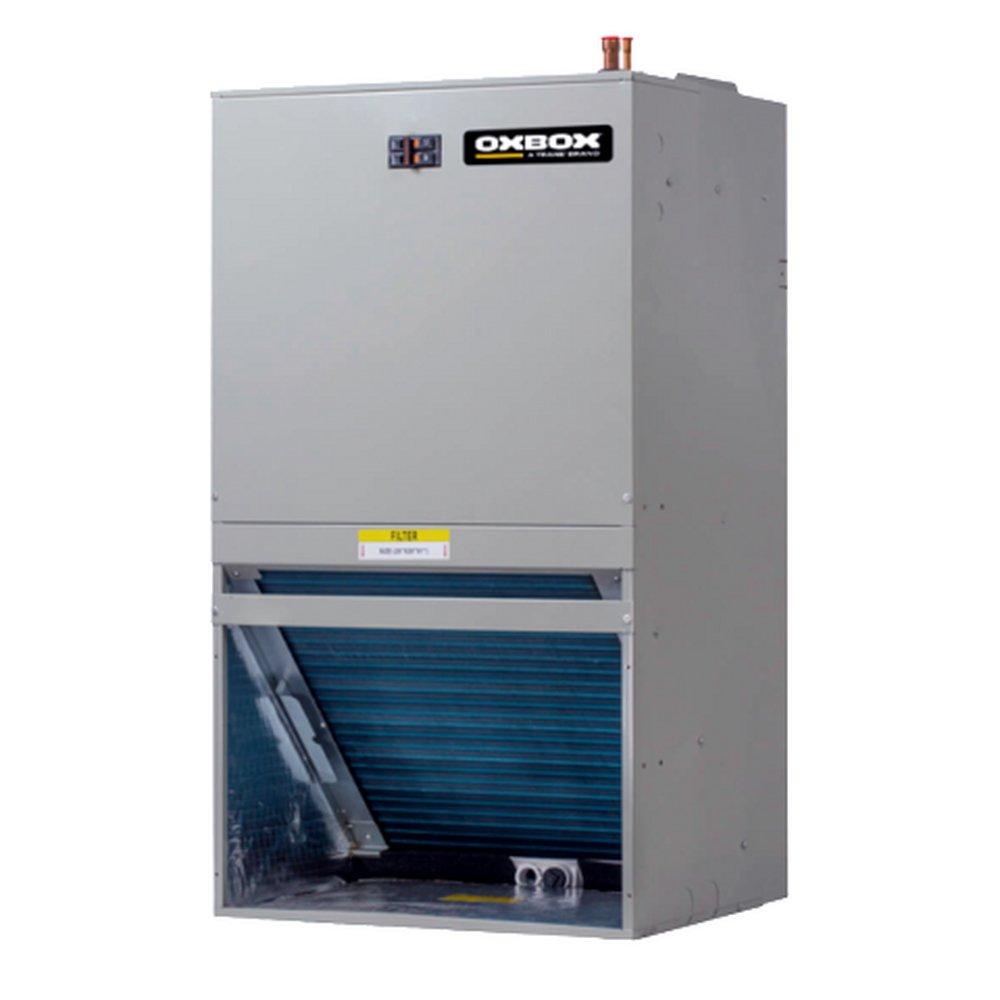

Oxbox JMM4A0A18S21SAA JMM4 Series 1.5 Ton - Upflow - Direct Drive - Air Handler

Product Description

The Oxbox JMM4A0A18S21SAA is a 1.5 ton, upflow, direct drive air handler. It supports both cooling and heating applications. This air handler is part of the JMM4 series, designed for reliable HVAC performance. With its factory-installed R-410A thermal expansion valve and built-in filter rack, this unit ensures efficient operation.

• Compatible with front and bottom return applications.
• Available in 1.5 to 3 ton models.
• Constructed with a painted metal cabinet featuring foil face insulation.

Product Highlights

Ideal for residential HVAC systems, the JMM4 Series air handler is suitable for licensed contractors only.

Product Information

Standard Information

• Brand: Oxbox
• MPN: JMM4A0A18S21SAA

Technical Specifications

• Model: JMM4 Series
• Capacity: 1.5 ton
• Motor Type: PSC constant speed motor
• Expansion Valve: Factory-installed R-410A
• Cabinet: Painted metal with foil face insulation
• Features: Built-in filter rack
• Auxiliary Heaters: Options available in 5kw, 8kw, and 10kw
• Coils: All-aluminum coils
