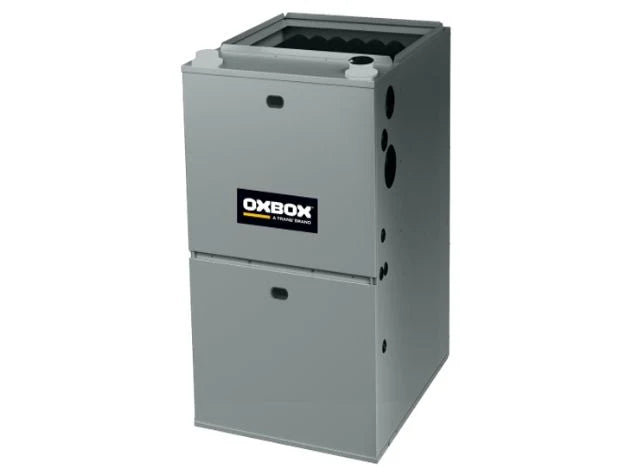

Oxbox J962V100CU5SAA 100k BTU 96% AFUE Two-Stage Variable Speed Upflow/Horizontal Gas Furnace (C-Cabinet)

Product Description

The Oxbox J962V100CU5SAA is a high-capacity, ultra-efficient 100,000 BTU gas furnace designed to provide consistent whole-home comfort in even the harshest winter climates. With a 96% AFUE (Annual Fuel Utilization Efficiency) rating, this condensing furnace is engineered to maximize every dollar spent on fuel, making it an ideal choice for large residential properties seeking to lower energy costs. This model features a sophisticated two-stage gas valve and a variable-speed ECM blower motor, which work in harmony to maintain precise temperature control. By running at a lower, quieter capacity for the majority of the time, the system minimizes temperature swings and improves indoor air quality through continuous, gentle air filtration.

• 96% AFUE rating ensures maximum energy efficiency and eligibility for many local utility rebates
• Two-stage gas valve adjusts heat output to match outdoor conditions for superior comfort
• Variable-speed ECM motor provides ultra-quiet operation and optimized airflow for up to 5.0 tons of cooling
• 34-inch compact cabinet height allows for easy installation in attics, closets, or basements

Product Highlights

Developed under the rigorous engineering standards of Trane, the J962V100CU5SAA features a primary aluminized steel heat exchanger paired with a stainless steel secondary heat exchanger for maximum heat extraction and long-term durability. The unit utilizes a reliable silicon nitride hot surface igniter for consistent startups and a fully insulated, heavy-duty cabinet to reduce mechanical noise. Its multi-positional design supports upflow and horizontal-left or horizontal-right configurations. With a C-Cabinet (21") width and a factory-sealed air leakage rate of less than 2%, this furnace offers a powerful and dependable heating solution for large families and spacious home layouts.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J962V100CU5SAA
• Series: J962V 96% AFUE

Technical Specifications

• Product Type: Gas Furnace
• Heating Capacity (Input): 100,000 BTUH
• Heating Capacity (Output): 96,000 BTUH
• AFUE Rating: 96.0%
• Stages: 2-Stage Heating
• Blower Motor: Variable Speed ECM
• Airflow Capacity: 5.0 Tons (2000 CFM Nominal)
• Configuration: Upflow / Horizontal Left or Right
• Cabinet Size: C-Cabinet (21.0")
• Voltage: 115V
• Fuel Type: Natural Gas (LP Convertible)
• Net Weight: 142.0 lbs
• Shipping Weight: 155.0 lbs
• Dimensions: 21.0" W x 28.7" D x 34.0" H
