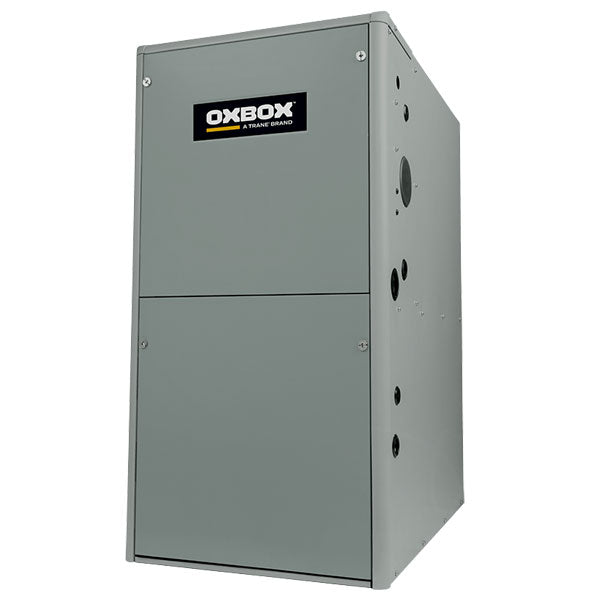

Oxbox j962v060bdvsab Gas Furnace 96% Afue 60000 Btu

Product Description

The OXBOX j962v060bdvsab is a residential gas furnace rated at 96% AFUE, delivering two-stage heating with a variable-speed ECM blower motor. It is configured for downflow airflow in a B-cabinet form factor, making it well suited for installations where the supply air discharges downward through a floor plenum or crawlspace. The 96% AFUE rating means the unit extracts nearly all available heat from combustion gas, reducing fuel consumption compared to standard-efficiency equipment. The variable-speed ECM motor modulates blower speed to maintain steady airflow and comfort across varying load conditions. Licensed HVAC technicians handle installation and startup of this equipment.

This furnace is designed for residential forced-air heating applications. The downflow cabinet orientation is typical in installations above a subfloor plenum, in closets, or in utility spaces where overhead supply duct connections are impractical. The two-stage gas valve allows the furnace to operate at a reduced firing rate during mild weather and ramp to full capacity during peak heating demand. The ECM blower supports continuous fan circulation and integrates with standard thermostat low-voltage control wiring. Installations are governed by the International Fuel Gas Code and applicable local mechanical codes.

Key Features

• 96% AFUE rating for high-efficiency gas combustion
• Two-stage heating for improved comfort and reduced short cycling
• Variable-speed ECM blower motor for consistent airflow and quiet operation
• Downflow airflow configuration for floor-discharge installations
• B-cabinet sizing for standard residential duct system compatibility
• 60,000 BTU/h input capacity suited for moderate residential heating loads

Compatibility

Designed as an OEM downflow gas furnace for residential forced-air heating systems requiring a two-stage, variable-speed ECM unit in a B-cabinet configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code and all applicable local codes. Shut off the gas supply and disconnect electrical power before servicing or connecting the unit. Proper venting must be installed per the manufacturer specifications and local code; this is a condensing furnace and requires appropriate PVC flue and condensate drainage. Do not operate the furnace before verifying all gas connections are leak-tested and all electrical connections are secured.

Technical Specifications

• Heating Capacity: 60,000 BTU/h
• AFUE: 96%
• Staging: Two Stage
• Blower Motor Type: Variable Speed ECM
• Airflow Configuration: Downflow
• Cabinet Size: B Cabinet
• Fuel Type: Natural Gas
• Category: Gas Furnace

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: j962v060bdvsab
