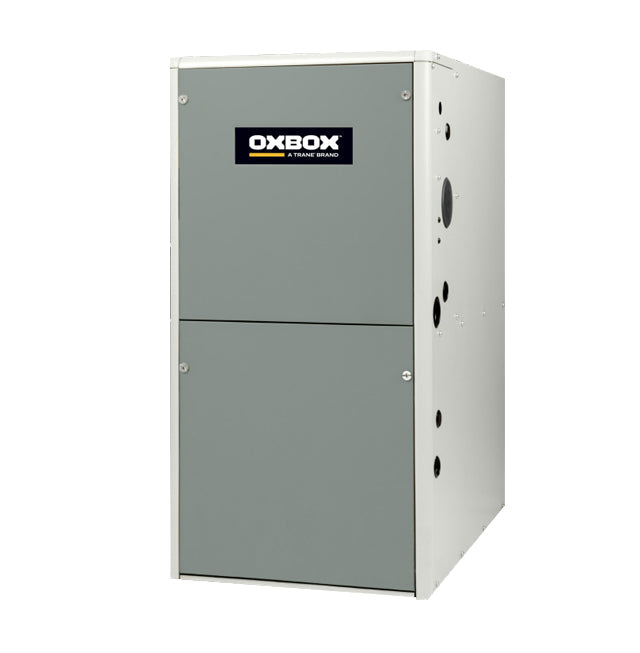

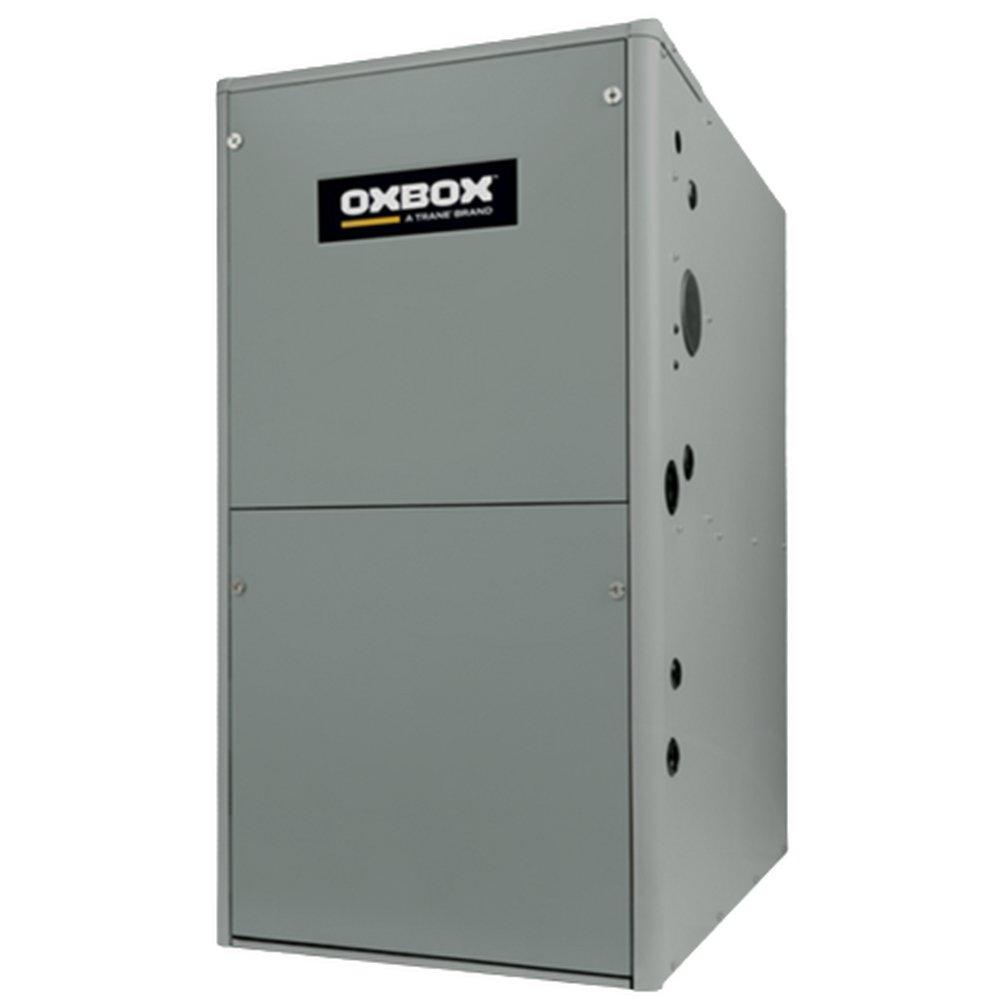

Oxbox J801X072CU5SAB J801X 72,000 BTU 80% AFUE Single Stage Upflow/Horizontal Furnace, C Cabinet

Product Description

The OXBOX J801X072CU5SAB is a J801X 72,000 BTU 80% AFUE single-stage upflow/horizontal furnace with a C cabinet. This furnace provides comfortable, consistent heating and is built for durable performance. It is fully convertible to either natural gas or liquid propane. The aluminized steel heat exchanger conducts heat quickly while remaining durable.

• FER Compliant
• 80% AFUE
• 100% fired and tested

Product Highlights

The Oxbox furnace provides reliable heating with components built to last. Features an aluminized steel heat exchanger and a silicon nitride igniter.

Product Information

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: J801X072CU5SAB
• Country of Origin: United States

Technical Specifications

• Stages: 1
• Airflow: Horizontal, Upflow
• BTU Input: 72000
• Efficiency: 80%
• Width (Inches): 21"
• Max Airflow (CFM): 2085
• Min Airflow (CFM): 63
• Type: Modular Blower
• Motor: ECM
• Speeds: 5
• Horse Power: 3/4 hp
• Model Number (s): J801X072CU5SAB
• Brand: OxBox
• Electrical Phase(s): 1-Phase
• UPC #: 703158742098
• Furnace Configuration: Up-Flow
• Afue: 80%
• Voltage: 110V
• Blower: Variable Speed
• Heating Stage(s): 1
• Height (Inches): 34 1/2
• Depth (Inches): 28
• Category: Gas Furnaces
• Input Btu (Furnaces/Package): 72,000
• Item Height: 34.5
• Item Width: 21
• MPN: J801X072CU5SAB
• UPC: 663132436897
• Country of Origin: United States
• Cabinet Size: 21
• Packaging: Manufacture packaging
• Stage: 1
• System Controls: NON-COMMUNICATING
• Fuel Type: Natural Gas, Propane
• A2L Compatible: Contingent
• AMP: 8.8
• BTU: 72000
• BTU Heat Rating: 57600 Btu/h
• Blower Type: ECM Constant Torque
• Collection: J801X Series
• Communicating: Non-Communicating
• Condensing: No
• Configuration: Horizontal Left, Horizontal Right, Upflow
• Depth: 28
• ETL Listed: Yes
• Energy Star Compliant: No
• Fan Speeds: 5
• Flue Size: 4
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Ignition System: Silicon Nitride
• MBH: 72
• Phase: Single Phase
• Power Source: Gas
• Temperature Range: 30 to 60 Deg F
• Vent Type: B-Vent
• Volts: 115V
• Weight: 122
