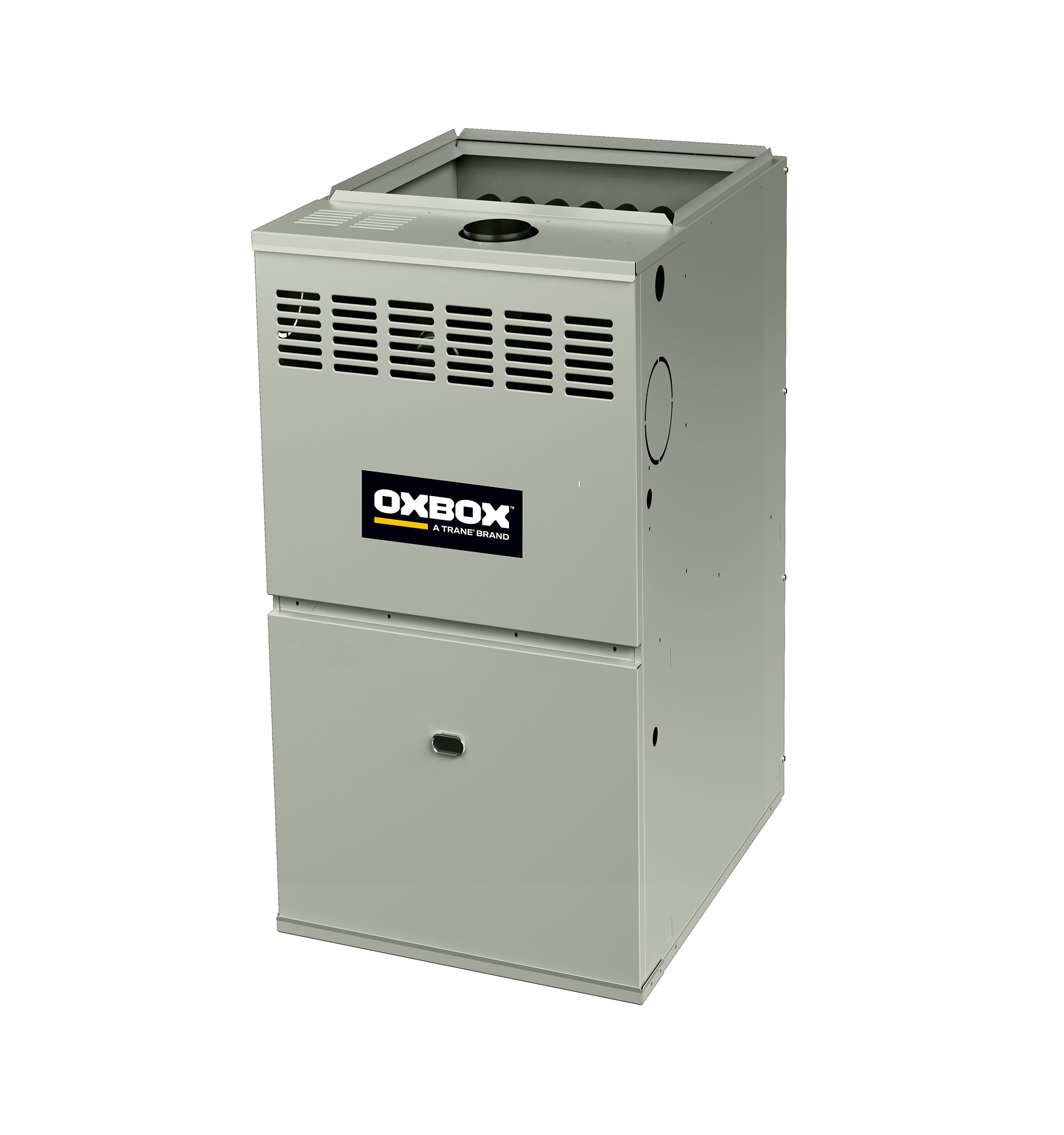

Oxbox J801V060BM4SEA Gas Furnace 60000 Btu/h 80% Afue Multi-position Ecm Motor

Product Description

The Oxbox J801V060BM4SEA is a single-stage natural gas or propane furnace rated at 60,000 BTU/h input with an 80% Annual Fuel Utilization Efficiency (AFUE) rating. It features an electronically commutated motor (ECM) for variable-speed air delivery and fits a B-cabinet width of 17.5 inches. The unit supports multi-position installation including upflow, downflow, and horizontal left or right orientations, giving installers flexibility in tight or unconventional mechanical spaces. Licensed HVAC technicians perform installation, and the unit is engineered for dependable, consistent heat output in both residential and light commercial applications.

The J801V060BM4SEA is suited for residential homes and light commercial buildings where an 80% AFUE single-stage gas furnace meets local energy code requirements. Its multi-position design makes it a practical choice for basement, closet, attic, or crawlspace installations where duct layout or clearance constraints dictate airflow direction. The B-cabinet width of 17.5 inches fits standard residential air handler footprints and pairs with conventional duct systems.

Key Features

• 60,000 BTU/h input capacity with 80% AFUE efficiency rating
• Single-stage gas valve for straightforward, reliable operation
• ECM blower motor for efficient, variable-speed airflow
• Multi-position installation: upflow, downflow, horizontal left, and horizontal right
• B-cabinet width of 17.5 inches fits standard residential duct openings
• Compatible with natural gas and propane fuel types

Compatibility

Designed as an OEM Oxbox single-stage gas furnace for residential and light commercial forced-air heating systems requiring a B-cabinet multi-position unit at the 60,000 BTU/h input range.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, ANSI Z223.1/NFPA 54 for gas appliances, and the manufacturer installation instructions. Shut off the gas supply and disconnect electrical power before servicing or connecting any components. Vent the unit according to local code requirements using approved flue pipe and fittings sized for the cabinet and application. Verify thermostat wiring and low-voltage connections before restoring power.

Technical Specifications

• Input Capacity: 60,000 BTU/h
• AFUE: 80%
• Stages: Single-stage
• Blower Motor Type: ECM
• Installation Position: Upflow, Downflow, Horizontal Left, Horizontal Right
• Cabinet Width: 17.5 inches
• Cabinet Height: 33.7 inches
• Cabinet Depth: 28.5 inches
• Voltage: 115 volts, Single Phase, 60 Hz
• Fuel Type: Natural Gas / Propane
• Unit Weight: 126 pounds

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J801V060BM4SEA
