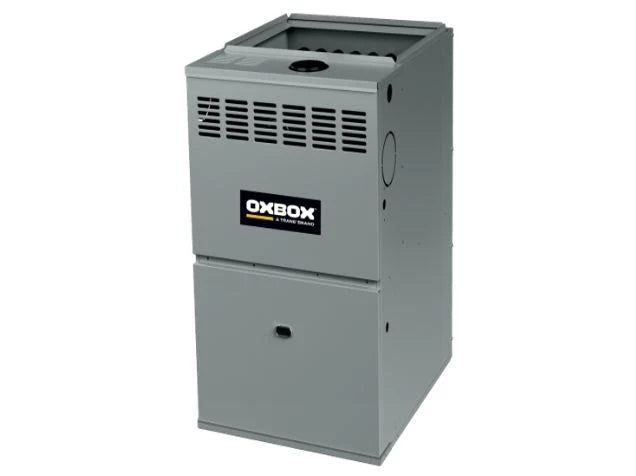

Oxbox J801V060AM3SEB 80% Afue Single Stage Gas Furnace 60000 Btu/h Multi-position Ecm Motor a Cabinet

Product Description

The Oxbox J801V060AM3SEB is an 80% AFUE single-stage natural gas furnace rated at 60,000 BTU/h input, designed for residential forced-air heating systems. Built around an ECM blower motor, this unit delivers consistent airflow while drawing less electrical power than a standard PSC motor. The A cabinet measures 33.7 inches tall by 14.5 inches wide by 28.5 inches deep, making it well suited for tighter mechanical closets and utility rooms. Licensed HVAC technicians and mechanical contractors are the primary installers for this equipment. The furnace carries an 80% AFUE rating, meaning 80 cents of every fuel dollar converts to usable heat.

The J801V060AM3SEB supports upflow, downflow, and horizontal right or left airflow configurations, giving installers flexibility in retrofit and new-construction applications. This multi-position capability makes it a practical choice for residential installations where the mechanical room layout varies or where the unit must be tucked into an attic, crawlspace, or basement. The 60,000 BTU/h output targets small-to-mid-size residential spaces. The A cabinet width of 14.5 inches fits standard platform and alcove installations common in single-family homes.

Key Features

• 80% AFUE single-stage gas heat for straightforward, reliable residential heating
• ECM blower motor reduces electrical consumption compared to standard PSC motors
• Multi-position design supports upflow, downflow, and horizontal right or left installations
• A cabinet at 14.5 inches wide fits narrow mechanical closets and replacement retrofit openings
• 60,000 BTU/h input capacity sized for small-to-mid-size residential applications

Compatibility

Designed as an OEM-style single-stage gas furnace for residential forced-air systems requiring an 80% AFUE, multi-position unit in the A cabinet form factor. Specific system compatibility should be confirmed against the J801V installation manual and applicable equipment submittals before installation.

Installation Notes

Installation must be performed by a licensed HVAC or mechanical contractor in accordance with local mechanical codes and the manufacturer installation manual. Shut off gas supply and disconnect electrical power before any service or connection work. Venting must comply with the International Fuel Gas Code and applicable local amendments for 80% non-condensing appliances, which require B-vent or equivalent approved vent pipe. Do not attempt to field-modify the cabinet configuration or gas valve without following the published technical specifications for this model.

Technical Specifications

• AFUE: 80%
• BTU/h Input: 60,000 BTU/h
• Stages: Single stage
• Blower Motor Type: ECM
• Airflow Configurations: Upflow, Downflow, Horizontal Right, Horizontal Left
• Cabinet Size: A cabinet
• Height: 33.7 inches
• Width: 14.5 inches
• Depth: 28.5 inches

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J801V060AM3SEB
