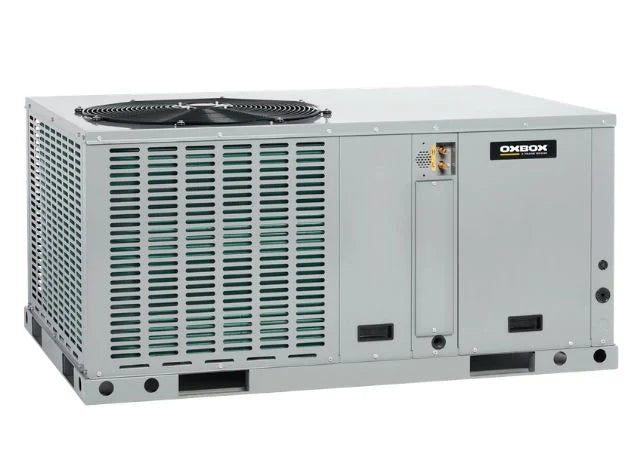

Oxbox J5PH4060A1000A Packaged Heat Pump Unit 5 Ton 13.4 SEER2 R-454B Single Phase

Product Description

The Oxbox J5PH4060A1000A is a 5-ton packaged heat pump unit rated at 13.4 SEER2 and designed for year-round heating and cooling in residential and light commercial applications. It operates on R-454B refrigerant, a lower global warming potential alternative to legacy refrigerants, and runs on a single-phase 208/230-volt, 60 Hz power supply. All major components — compressor, air handler, and refrigerant circuit — are housed in a single self-contained cabinet, making it a full-system solution that mounts at grade or on a rooftop pad. Licensed HVAC technicians handle installation and commissioning of this equipment class.

The J5PH4060A1000A is suited for residential and light commercial buildings requiring a ground-level or rooftop packaged installation where indoor mechanical space is limited or unavailable. Its self-contained design simplifies rough-in by consolidating supply air, return air, low-voltage controls, and high-voltage electrical connections at one cabinet location. The unit is part of the Oxbox lineup, which is manufactured under Trane Technologies and targets cost-conscious contractors who need reliable, code-compliant HVAC equipment.

Key Features

• 13.4 SEER2 efficiency rating meets current DOE minimum efficiency standards
• R-454B refrigerant with lower global warming potential compared to R-410A
• 5-ton nominal cooling and heating capacity for larger residential or small commercial spaces
• Single-phase 208/230-volt, 60 Hz electrical configuration for broad compatibility with standard commercial service
• All-in-one packaged cabinet consolidates refrigerant, air handler, and controls in a single enclosure
• Designed for slab or rooftop installation with side supply air and side return air openings

Compatibility

Designed as an OEM packaged heat pump unit for residential and light commercial applications requiring a self-contained 5-ton, single-phase heat pump system on a slab or rooftop curb.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. Disconnect and lock out all electrical power at the service panel before making any wiring connections. Low-voltage control wiring and high-voltage power connections are routed through separate entrance points on the cabinet; consult the unit submittal sheet and local codes for proper conduit sizing and disconnect requirements. A condensate drain trap is required at the drain connection per standard practice.

Technical Specifications

• Cooling Capacity: 5 tons (60,000 BTU/h nominal)
• SEER2 Rating: 13.4
• Refrigerant Type: R-454B
• Voltage: 208/230 volts
• Phase: Single phase
• Frequency: 60 Hz
• Unit Weight: 300 pounds

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5PH4060A1000A
